HP EliteDesk 800 G1 Desktop Mini - Page 30

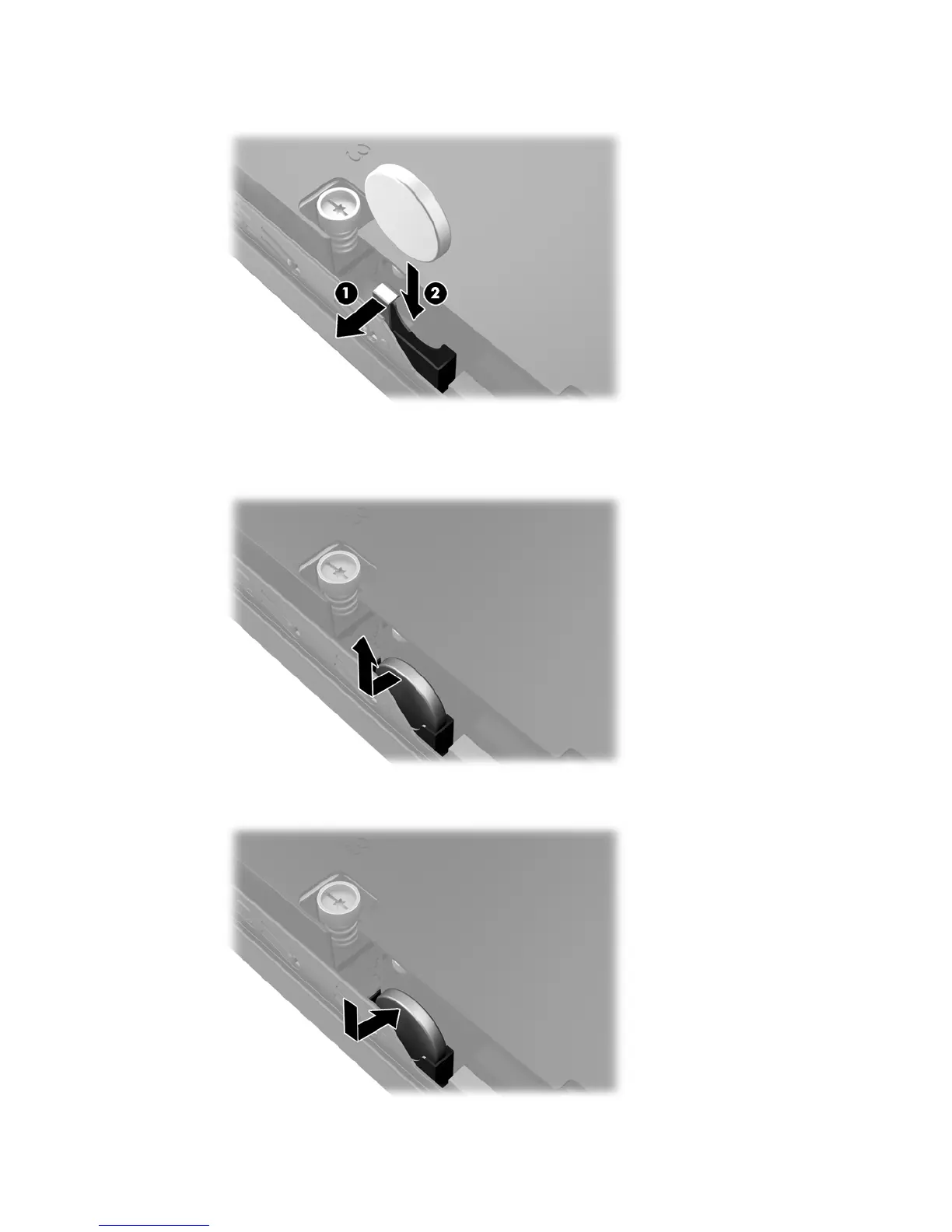

b. Pull back on the clip (1) and slide the replacement battery down into the holder (2).
Type 2
a. Push the battery toward the outside of the chassis to release it from the holder and lift it out.
b. Lower the battery so that is next to the holder then push it into the holder.
24 Chapter 2 Hardware upgrades
