HP EliteDesk 800 G1

EL-MF877-00 Page 5
Template Revision B
PSG instructions for this template are available at EL-MF877-01

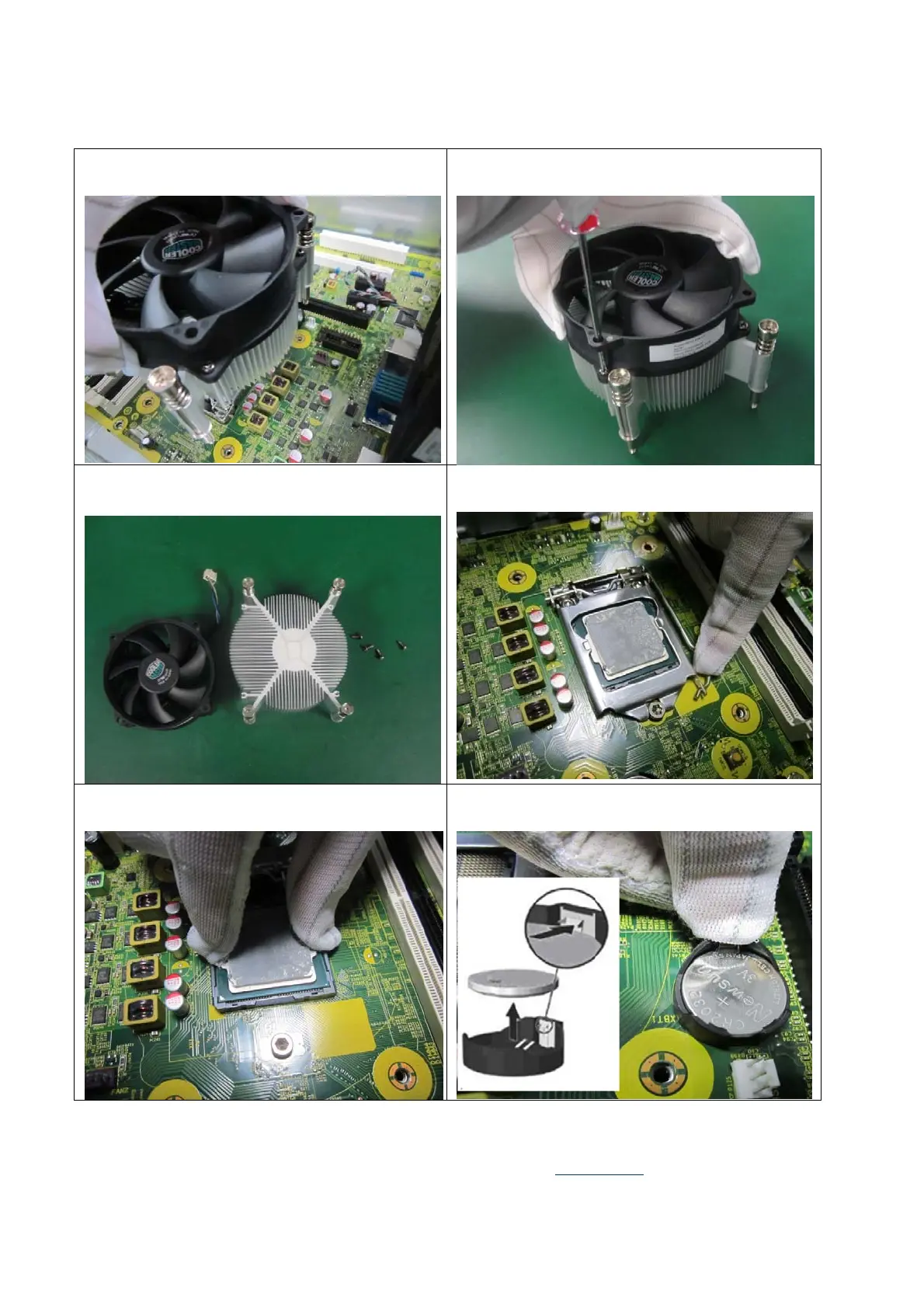

Figure13 Remove the CPU HeatSink from the board Figure14 Loose the screws from the CPU HeatSink
Figure15 Remove the fan from CPU HeatSink
Figure16 Rotate the handle and open it up
Figure17 Remove the CPU from the board Figure18 Remove the battery from the system board
