HP EliteDisplay E240 User Manual

●

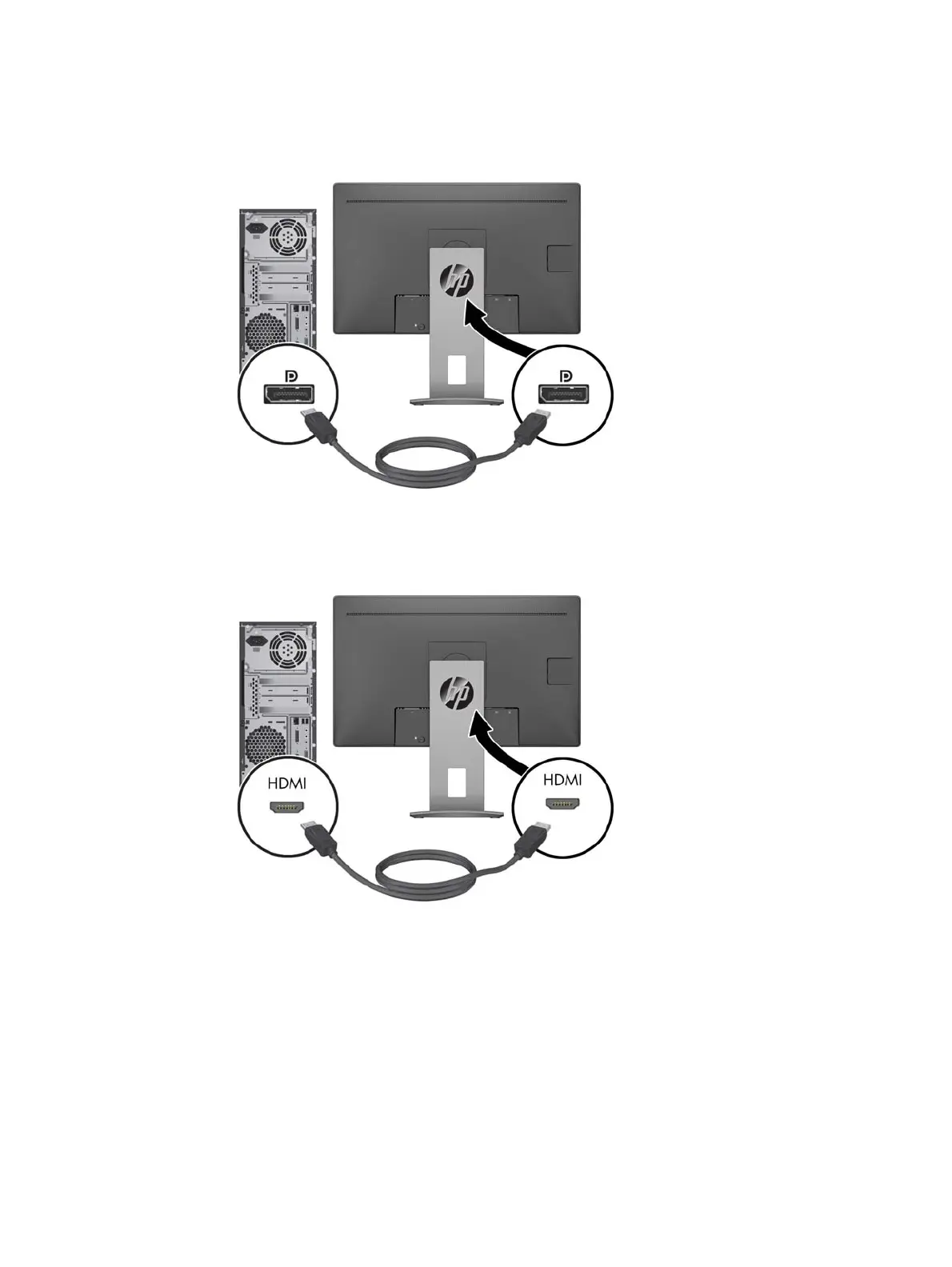

Connect a DisplayPort cable to the DisplayPort IN connector on the rear of the monitor and the
other end to the DisplayPort connector on the source device.
●
Connect an HDMI cable to the HDMI connector on the rear of the monitor and the other end to the
HDMI connector on the source device.
Setting up the monitor 7

HP EliteDisplay E240 Specifications

General

3D	No
Aspect ratio	16:9
Screen shape	Flat
Display diagonal	23.8 \
Display technology	LED
Viewable size, vertical	296.46 mm
Contrast ratio (dynamic)	5000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	527.04 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1400 x 900, 1600 x 900, 1680 x 1050 (WSXGA+)
On/off switch	Yes
USB hub version	2.0
USB Type-A downstream ports quantity	3
Product color	Black
Country of origin	China
Market positioning	Business
Pivot angle	0 - 90 °
Tilt angle range	-5 - 25 °
Panel mounting interface	100 x 100 mm
Sustainability certificates	ENERGY STAR
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	35 W
Power consumption (off)	0.12 W
Annual energy consumption	31 kWh
Power consumption (standby)	0.5 W
Power consumption (typical)	25 W

Weight and Dimensions

Depth (without stand)	49.5 mm
Width (without stand)	557.2 mm
Height (without stand)	342.2 mm
Weight (without stand)	3800 g
