HP EliteDisplay E240 User Manual

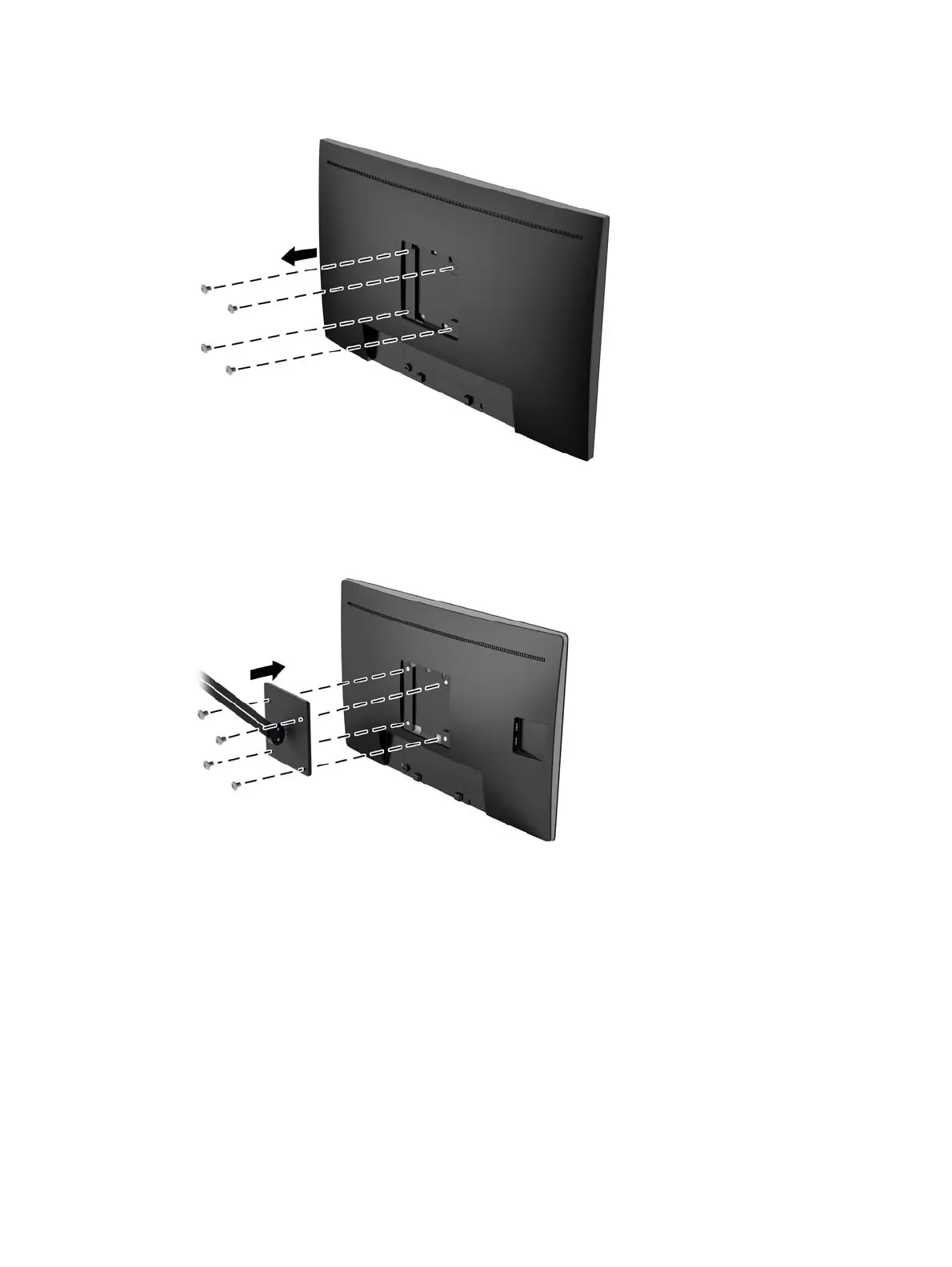

2. Remove the four screws from the VESA holes located on the rear of the display head.
3. Install the mounting plate to the wall or swing arm of your choice using the four screws that were
removed from the VESA holes on the rear of the display head.
Setting up the monitor 13

HP EliteDisplay E240 Specifications

General

3D	No
Aspect ratio	16:9
Screen shape	Flat
Display diagonal	23.8 \
Display technology	LED
Viewable size, vertical	296.46 mm
Contrast ratio (dynamic)	5000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	527.04 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1400 x 900, 1600 x 900, 1680 x 1050 (WSXGA+)
On/off switch	Yes
USB hub version	2.0
USB Type-A downstream ports quantity	3
Product color	Black
Country of origin	China
Market positioning	Business
Pivot angle	0 - 90 °
Tilt angle range	-5 - 25 °
Panel mounting interface	100 x 100 mm
Sustainability certificates	ENERGY STAR
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	35 W
Power consumption (off)	0.12 W
Annual energy consumption	31 kWh
Power consumption (standby)	0.5 W
Power consumption (typical)	25 W

Weight and Dimensions

Depth (without stand)	49.5 mm
Width (without stand)	557.2 mm
Height (without stand)	342.2 mm
Weight (without stand)	3800 g
