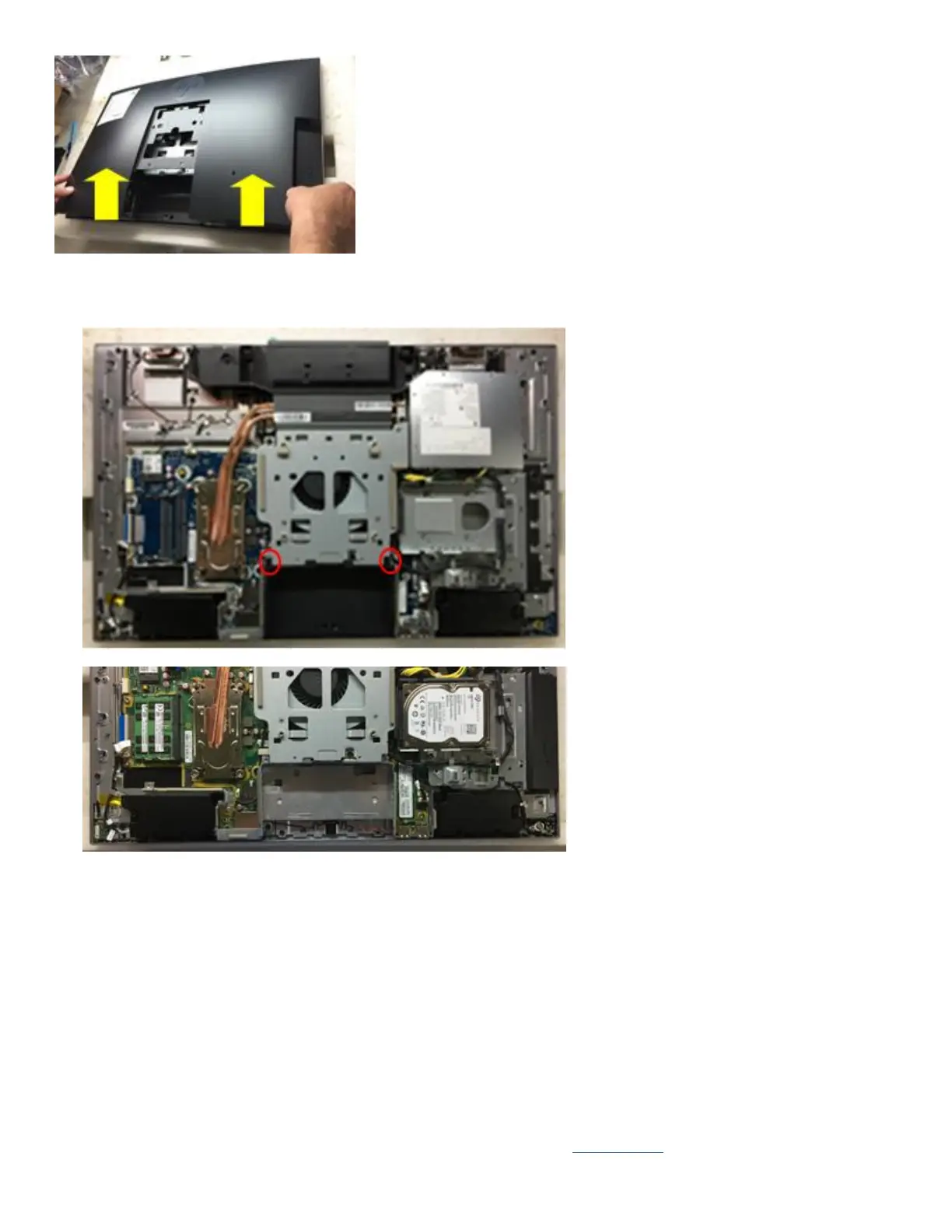

4. Remove IO pocket , release 2 screws on red circle location remove IO pocket
Tool: Star(Torx) screwdriver OD 3.3mm
5. Remove VESA bracket with Fan , release 5 screws on red circle location to remove VESA bracket with Fan
Tool: Star(Torx) screwdriver OD 3.3mm
