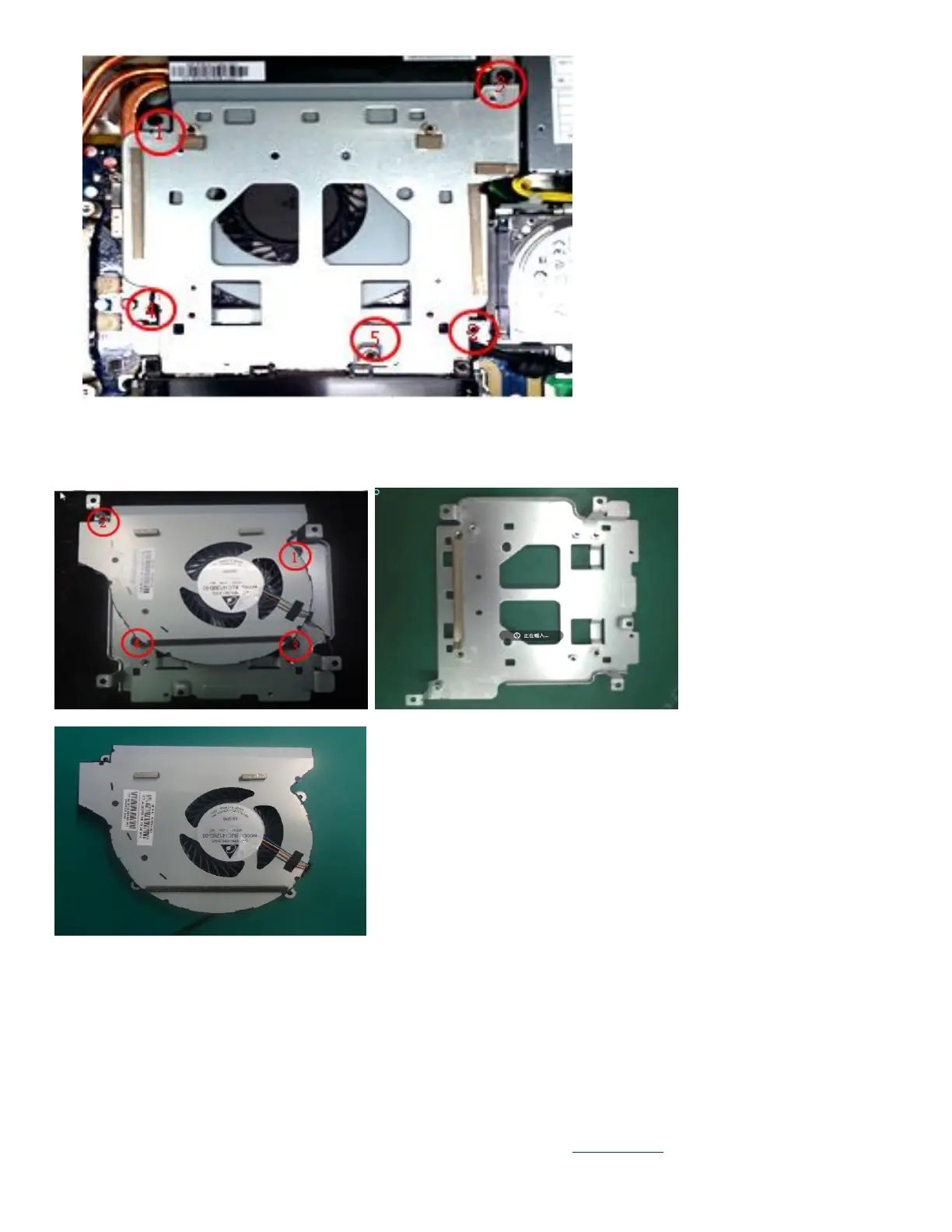

6. Remove Fan from VESA bracket ,release 4 screws on red circle location remove Fan from VESA bracket
Tool: Star(Torx) screwdriver OD 3.3mm
7. Remove thermal module(GPU SKU) , release 8 screws on red circle location to remove thermal module
Tool: Star(Torx) screwdriver OD 3.3mm
