HP EliteOne 800 G1 All-in-One 723290-001 page 4

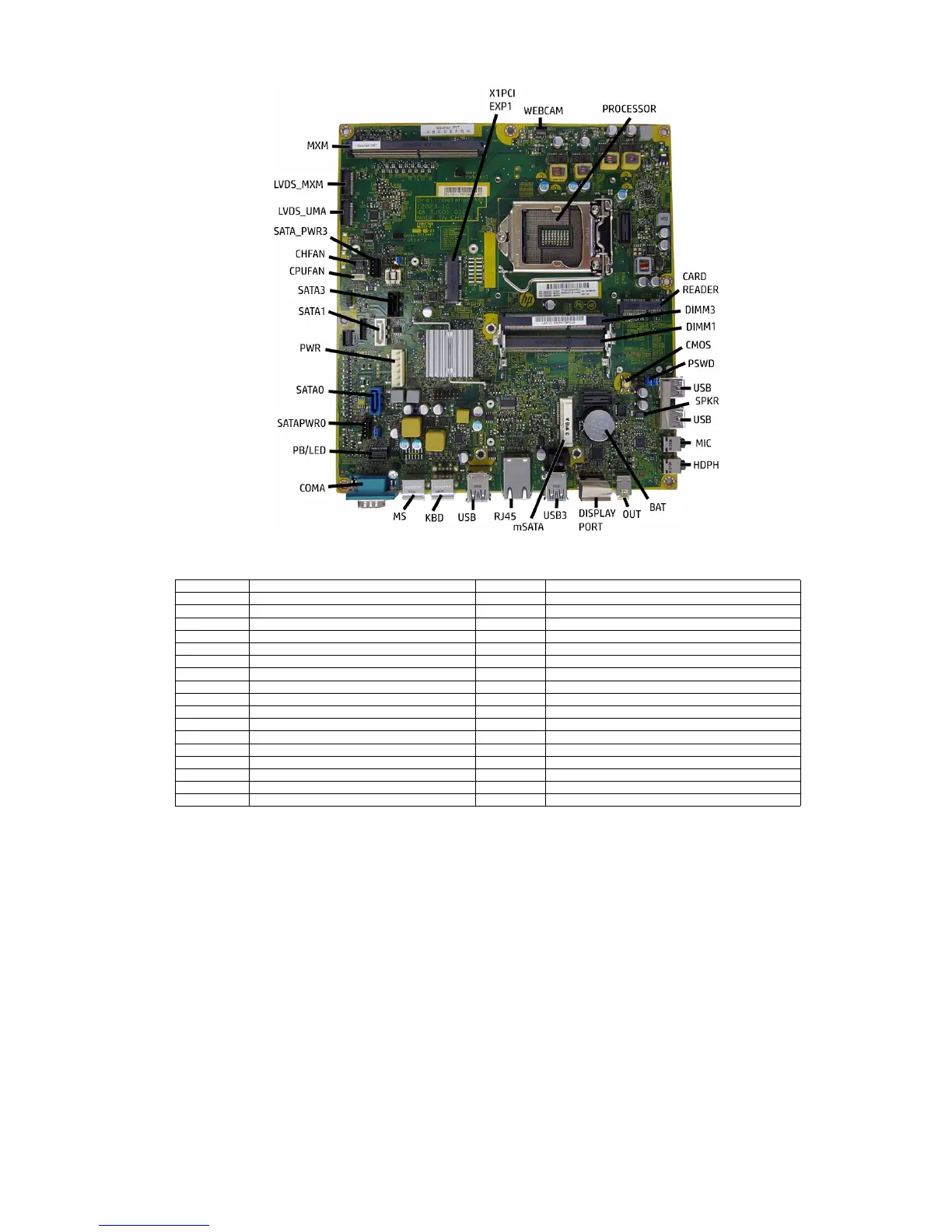

System Board
System Board Connectors and Jumpers (component location may vary)
X1PCIEXP1 PCIe X1 slot RJ45 Network jack
WEBCAM Webcam connector USB External USB 2.0 connectors
PROCESSOR Processor socket KBD PS/2 connectors
CARD READER Card reader slot MS Mouse connector
DIMM3 Memory socket - Channel B COMA Serial port
DIMM1 Memory socket - Channel A PB/LED Power switch connector
CMOS CMOS button SATA PWR0 Hard drive power connector
PSWD Password header SATA0 1st hard drive data connector
USB External USB 2.0 connectors PWR Main power connector
SPKR Speaker connector SATA1 2nd hard drive data connector
USB External USB 2.0 connectors SATA3 Optical drive data connector
MIC External microphone connector CPUFAN Fan connector
HDPH External headphone connector CHFAN Fan connector
BAT RTC battery socket SATA PWR3 Optical drive power connector
OUT External audio out connector LVDS UMA Display connector - UMA graphics
DISPLAYPORT DisplayPort connector LVDS MXM Display connector - discrete graphics
USB3 Two external USB 3.0 connectors MXM Graphics card connector
mSATA mSATA slot

HP EliteOne 800 Specifications

General

Full HD	Yes
Display diagonal	23 \
Touch technology	Multi-touch
Native aspect ratio	16:9
Tcase	71.35 °C
Bus type	QPI
Stepping	C0
Processor code	SR14J
Processor cache	6 MB
Processor cores	4
Processor model	i5-4570S
System bus rate	- GT/s
Processor family	Intel® Core™ i5
Processor series	Intel Core i5-4500 Desktop Series
Processor socket	LGA 1150 (Socket H3)
Processor codename	Haswell
Number of QPI links	1
Processor frequency	2.9 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3.6 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	65 W
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Dual
Memory clock speeds supported by processor	1333, 1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	32 GB
Product type	All-in-One PC
Motherboard chipset	Intel® Q87
Memory slots	2
Internal memory	8 GB
Memory slots type	SO-DIMM
Memory clock speed	1600 MHz
Maximum internal memory	- GB
HDD interface	SATA
Storage media	HDD
Optical drive type	DVD Super Multi
Card reader integrated	-
Total storage capacity	1000 GB
Compatible memory cards	SD
Intel segment tagging	Enterprise
Storage drive interface	Serial ATA
On-board graphics card ID	0x412
On-board graphics card model	Intel® HD Graphics 4600
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	1.74 GB
On-board graphics card base frequency	350 MHz
On-board graphics card DirectX version	11.1
On-board graphics card dynamic frequency (max)	1150 MHz
Number of displays supported (on-board graphics)	3
Audio system	DTS Studio Sound
Wi-Fi standards	Not supported
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
Operating system installed	Windows 8 Pro
Scalability	1S
Processor ARK ID	75044
Intel TSX-NI version	0.00
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal solution specification	PCG 2013C
Intel Identity Protection Technology version	1.00
Product color	Black
Country of origin	China
Total megapixels	2 MP
AC adapter power	200 W
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth (with stand)	503 mm
Width (with stand)	560 mm
Height (with stand)	389 mm
Weight (with stand)	7890 g
