HP Engage One 2D User Manual

1 Using the scanner

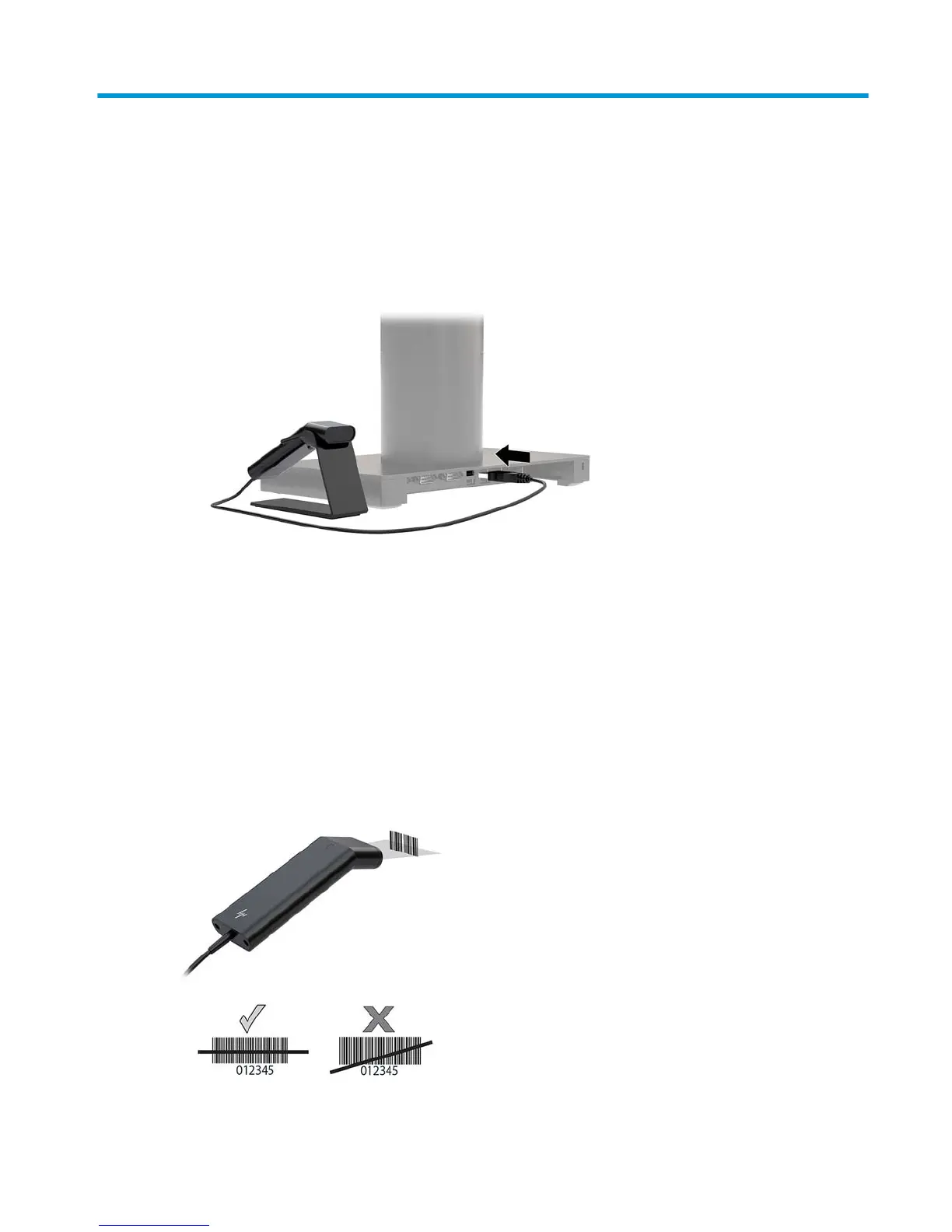

Connecting the scanner
1. Turn o power to the computer.
2. Connect the scanner’s USB cable to a USB Type-A port on the I/O connectivity base.
3. Turn on power to the computer.
Reading techniques
The view nder projects an aiming beam that should be centered over the bar code, but it can be positioned in
any direction for a good read. Hold the scanner over the bar code, press the button, and center the aiming
beam on the bar code.
The aiming beam is smaller when the scanner is closer to the code and larger when it is farther from the code.
Hold the scanner close to smaller bar codes, and farther away from large bar codes to get a proper read.
If the bar code is highly reective (laminated, for example), you may need to tilt the scanner at an angle so
the bar code can be scanned.
Connecting the scanner 1
