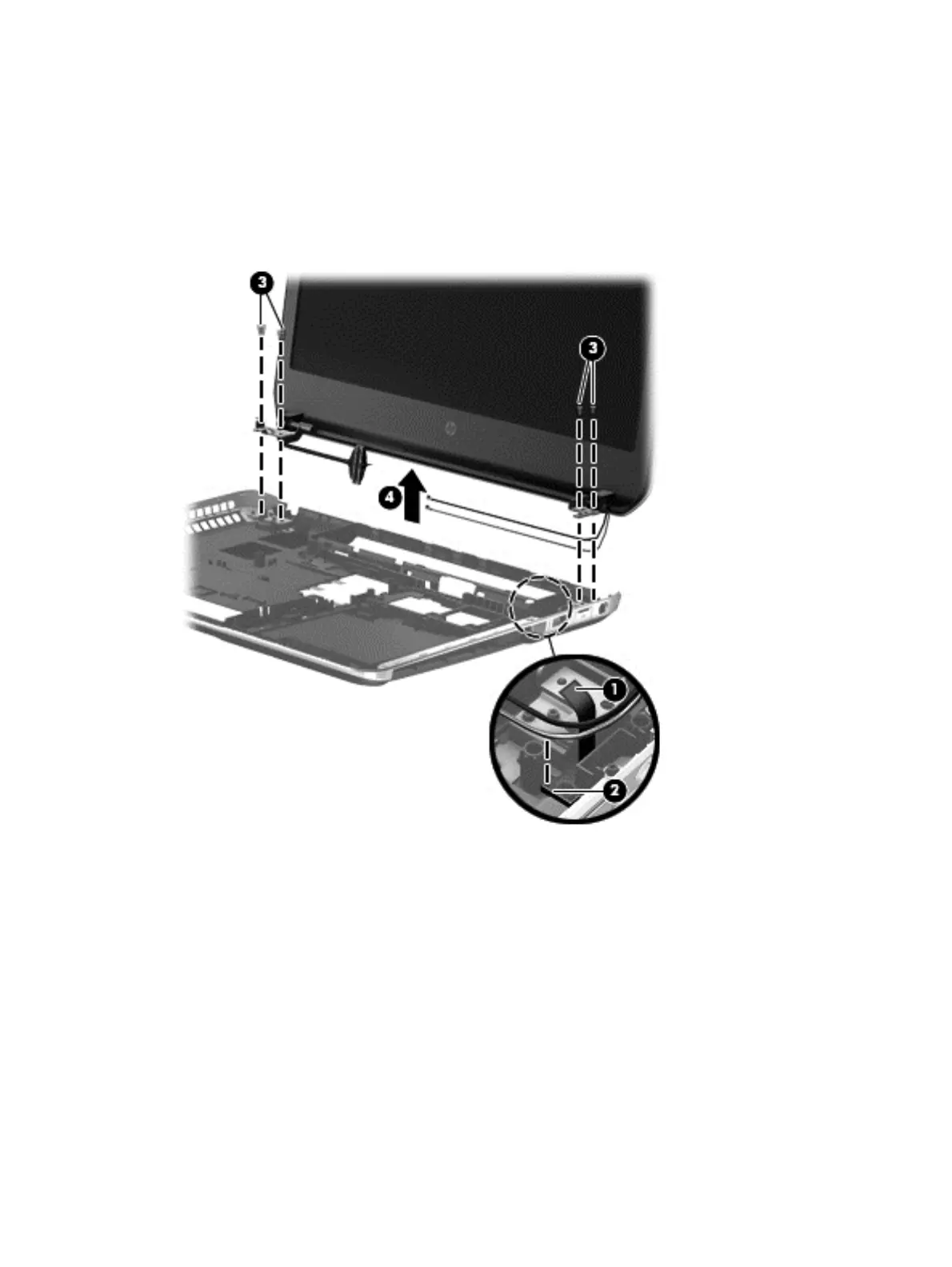

Remove the display assembly:
1. Release the grounding tape (1) that is attached to the right display hinge.
2. Release the wireless antenna cables from the retention clip (2) built into the base enclosure.
3. Remove the four Phillips PM2.5×6.5 screws (3) that secure the display assembly to the
base enclosure.
4. Remove the display assembly (4).
5. If it is necessary to replace the display bezel or any of the display assembly subcomponents:
a. Flex the inside edges of the bottom edge (1), the left and right sides (2), and the
top edge (3) of the display bezel until the bezel disengages from the display enclosure.
64 Chapter 4 Removal and replacement procedures
