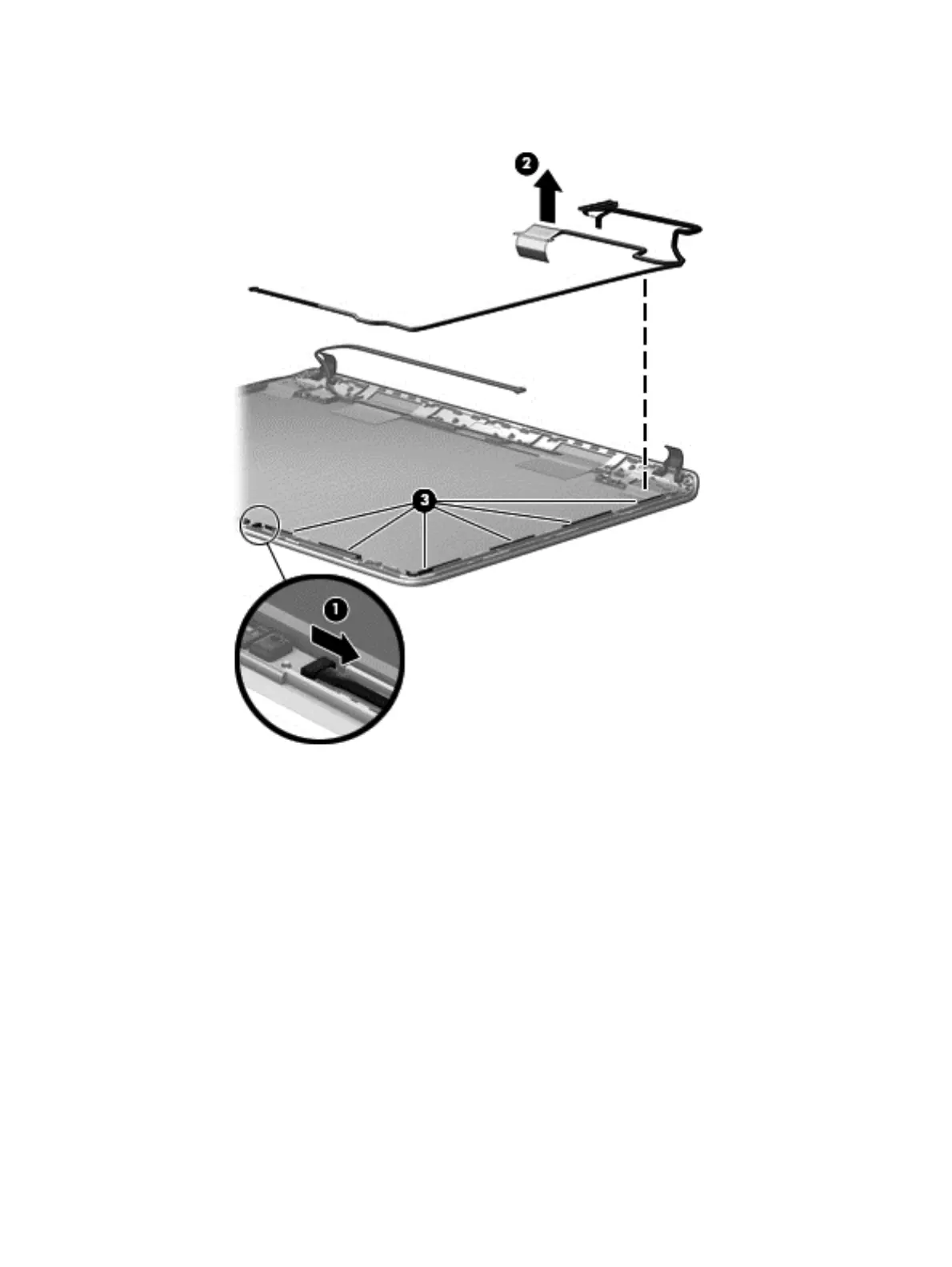

c. Release the webcam/microphone module cable from the clips (3) and routing channel built
into the display enclosure.
d. Remove the display panel cable.
The display panel cable is available using spare part number 698094-001.
10. If it is necessary to replace the WLAN antenna cables and transceivers:
a. Detach the WLAN antenna transceivers (1) from the display enclosure. (The WLAN
antenna transceivers are attached to the display enclosure with double-sided tape.)
b. Release the WLAN antenna cables from the clips (2) and routing channels built into the
display enclosure.
Component replacement procedures 69
