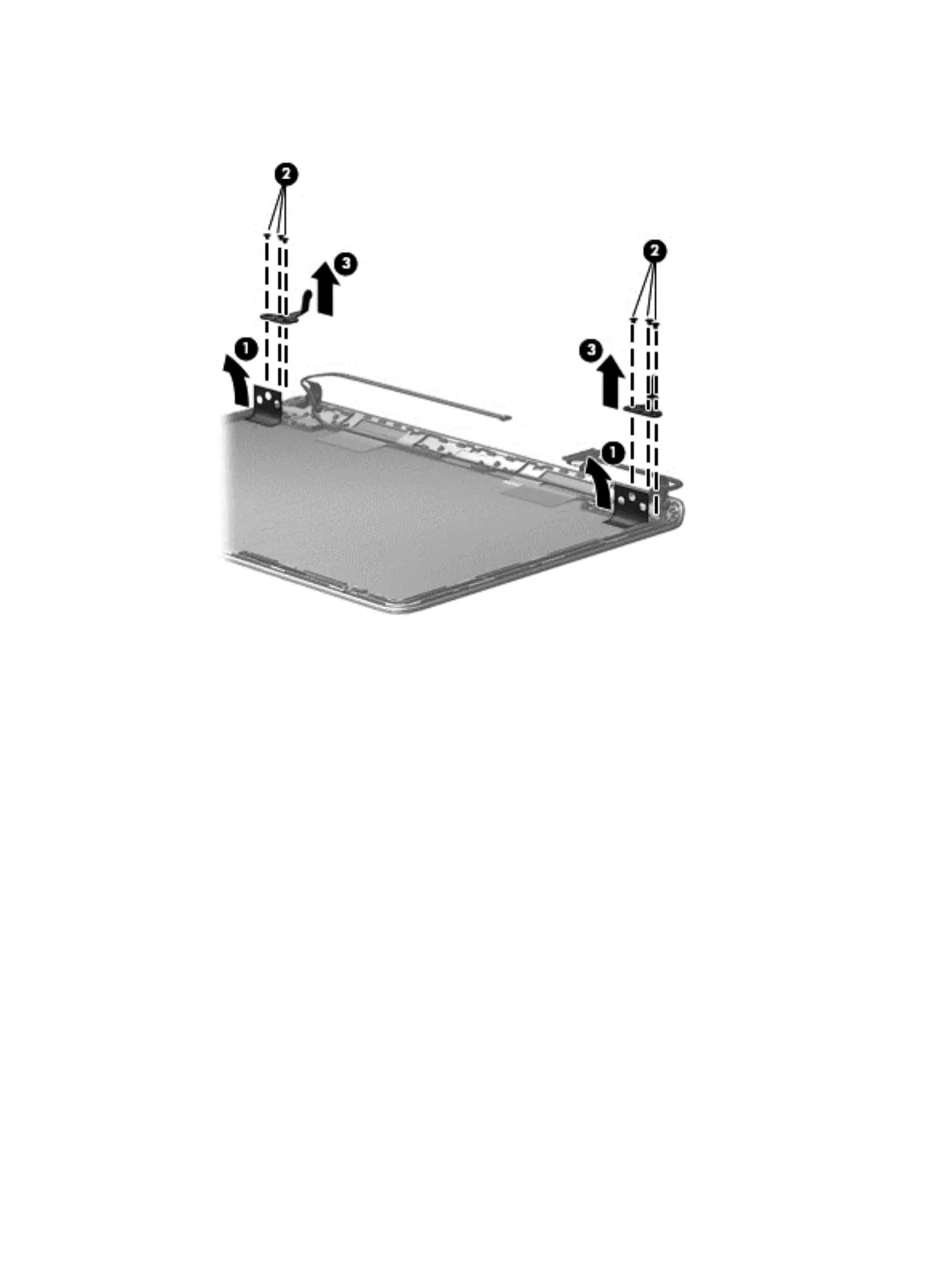

c. Remove the display hinges (3).
The display hinges are included in the Display Hinge Kit, spare part number 698082-001.
9. If it is necessary to replace the display panel cable:
a. Disconnect the webcam/microphone module cable (1) from the webcam/
microphone module.
b. Detach the display panel cable (2) from the surface of the display enclosure. (The display
panel cable is attached to the display enclosure with double-sided tape.)
68 Chapter 4 Removal and replacement procedures
