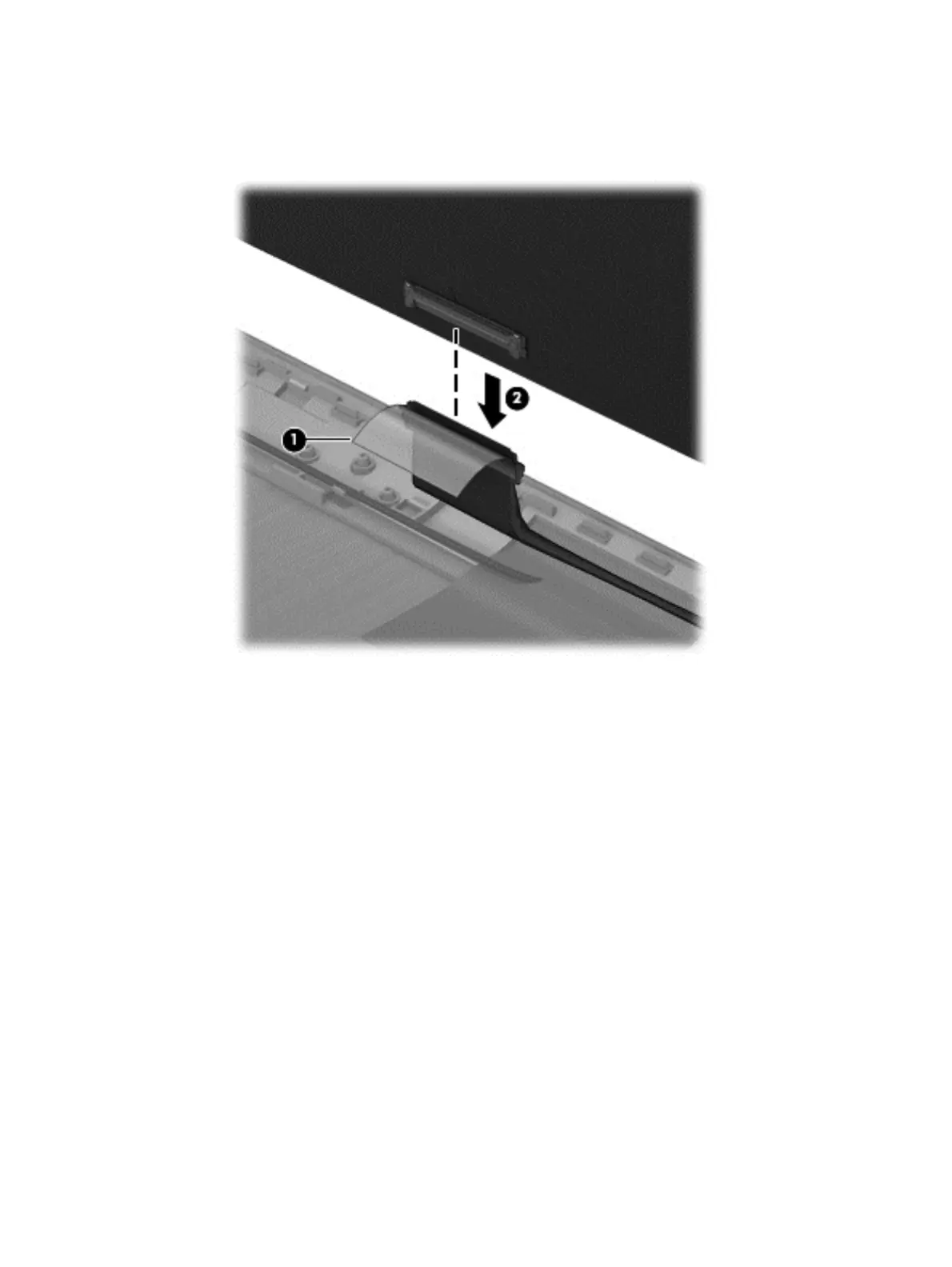

c. Release the adhesive support strip (1) that secures the display panel cable to the
display panel.
d. Disconnect the display panel cable (2) from the display panel.
e. Remove the display panel. The display panel is available using spare part number
698087-001.
8. If it is necessary to replace the display hinges:
a. Release the metallic grounding tape (1) that covers the left and right display hinges.
b. Remove the six Phillips PM2.5×2.0 broad head screws (1) that secure the display hinges to
the display enclosure.
Component replacement procedures 67
