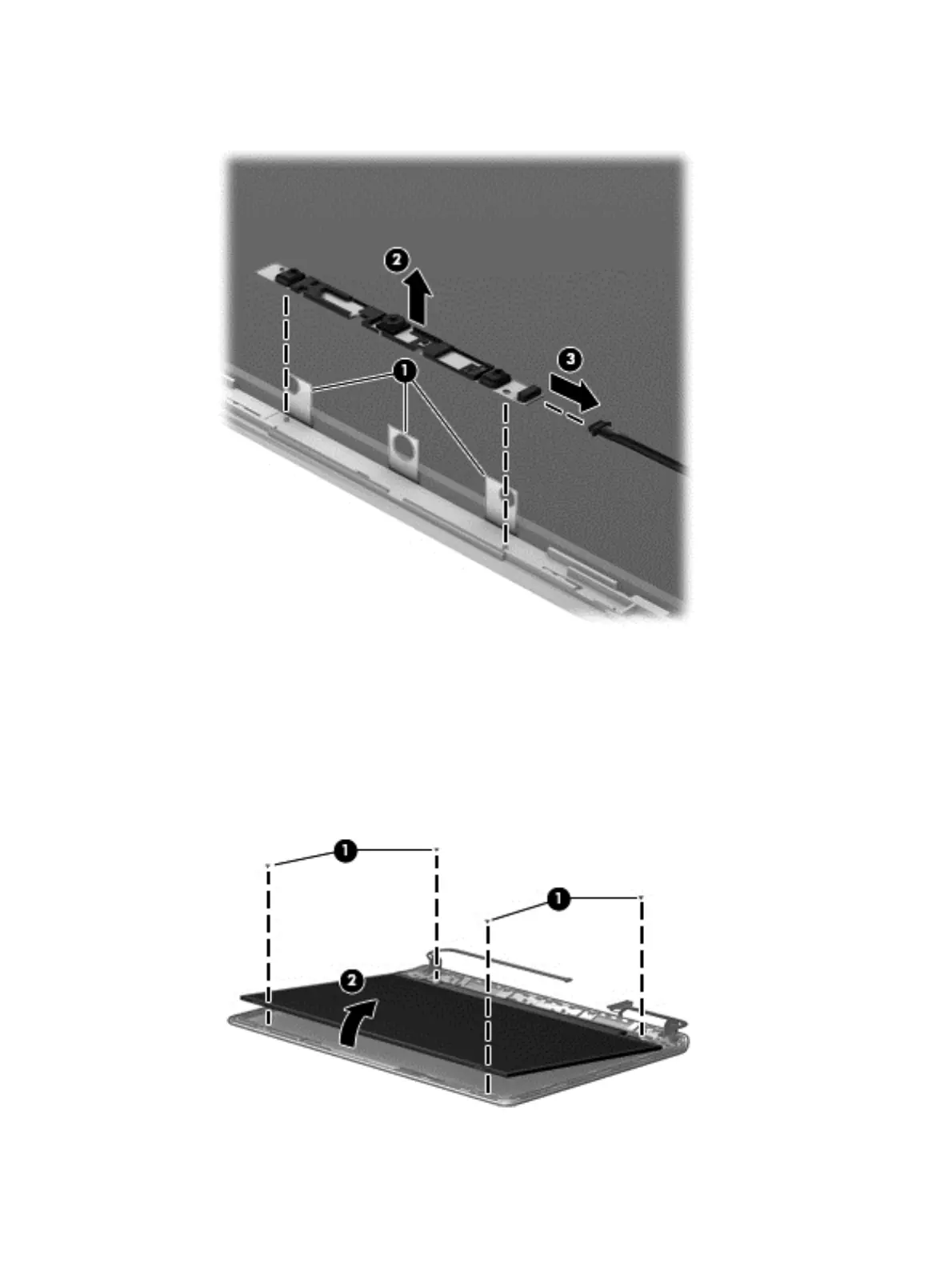

c. Disconnect the webcam/microphone module cable (3) from the webcam/
microphone module.
d. Remove the webcam/microphone module.
The webcam/microphone module is available using spare part number 698096-001.
7. If it is necessary to replace the display panel:
a. Remove the four Phillips PM2.0×2.5 screws (1) that secure the display panel to the
display enclosure.
b. Lift the top edge of the display panel (2) and swing it up and forward until it rests at
an angle.
66 Chapter 4 Removal and replacement procedures
