HP EVA P6000 Software Guide

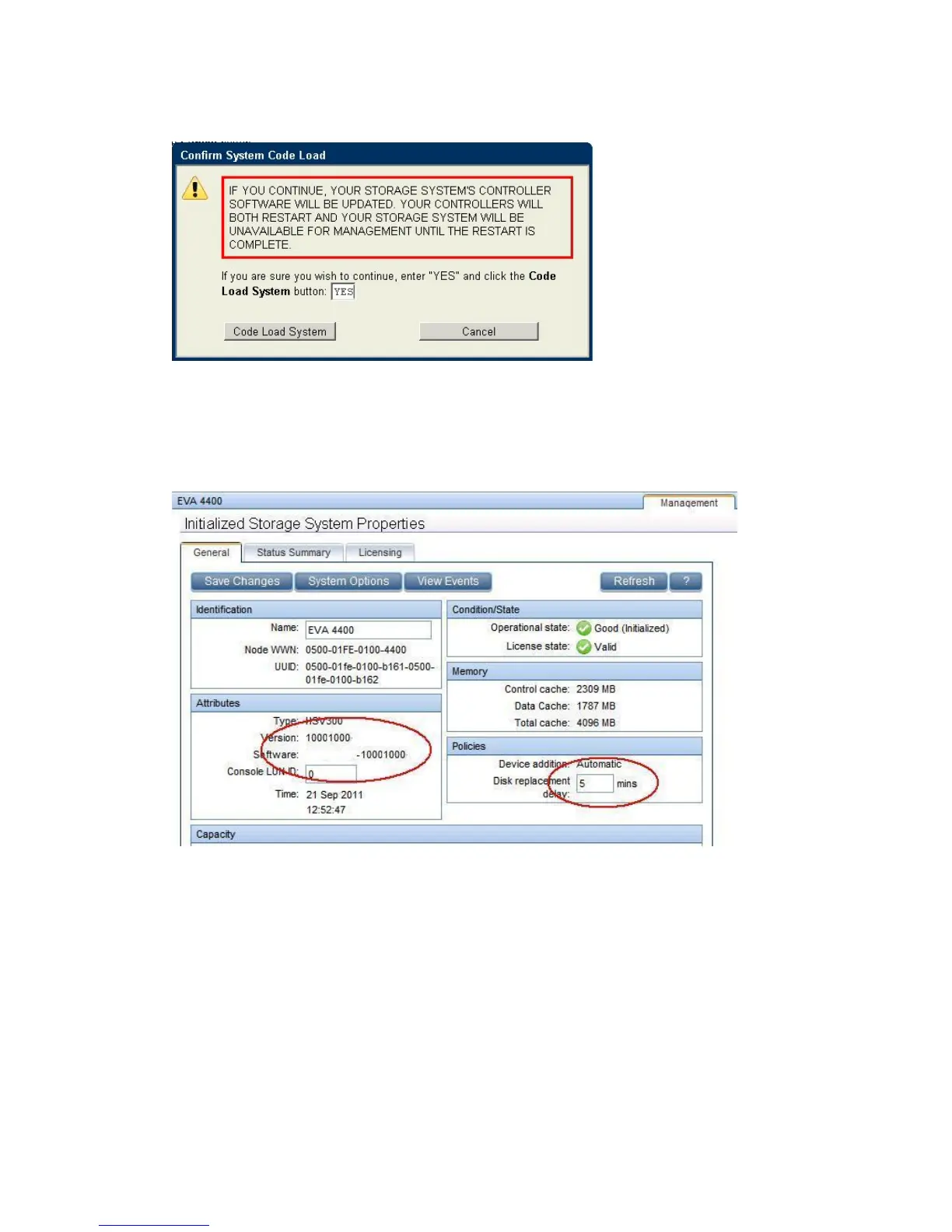

15. A final Confirm System Code Load window opens (Figure 24 (page 52)). Enter YES (all
uppercase) and click Code Load System to proceed.
Figure 24 Final code load confirmation window
16. Select the array in the navigation pane and the Initialized Storage System Properties window
appears (Figure 25 (page 52)). Verify the version of the controller software in the Version
box. It should be 10001000.
Figure 25 Verifying XCS version after upgrading
52 Upgrading the Enterprise Virtual Array

HP EVA P6000 Specifications

General

Model	HP EVA P6000
Number of Storage Controllers	2
Management Software	HP Command View EVA
Drive Types	SAS, SSD
RAID Levels	RAID 0, 1, 5, 6
Connectivity	8 Gb Fibre Channel, 10 Gb iSCSI, 1 Gb iSCSI
Form Factor	Rack-mounted
Storage Controller Type	Dual controllers
