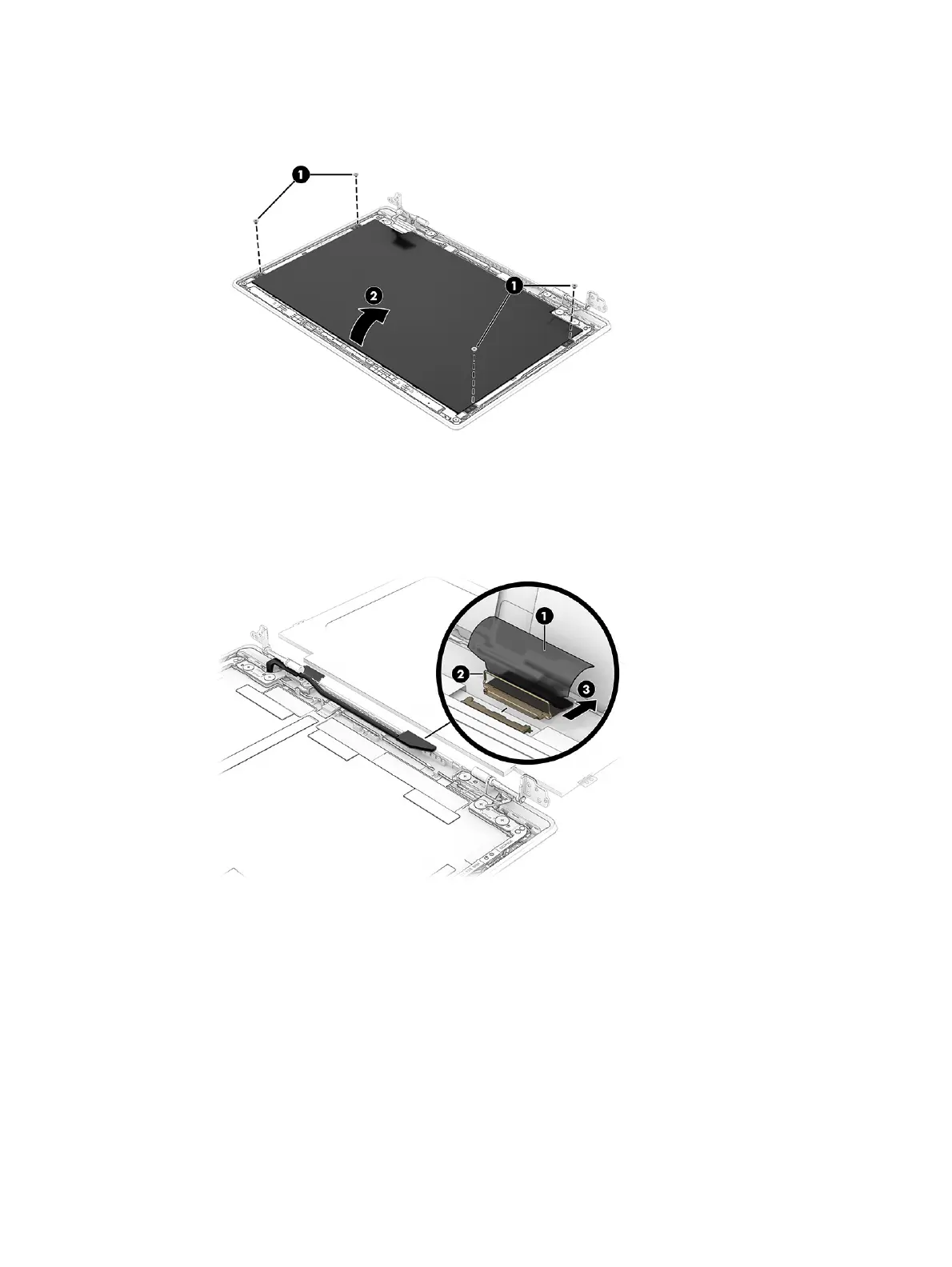

d. Remove the four Phillips M2.0 × 2.0 screws (1) that secure from the panel, and then lift the panel
up (2) and place it next to the display rear cover.
e. Lift the conductive tape (1) from top of the connector on back of panel.
f. Lift the locking bar (2).
g. Disconnect the cable (3) from the display panel.
Display panels are available as the following spare part numbers:
N85240-001: SVA
N85241-001: UWVA
N85242-001: UWVA, touch screen
48
Chapter 5 Removal and replacement procedures for authorized service provider parts
