HP Fortis 11 G10 Chromebook - Page 54

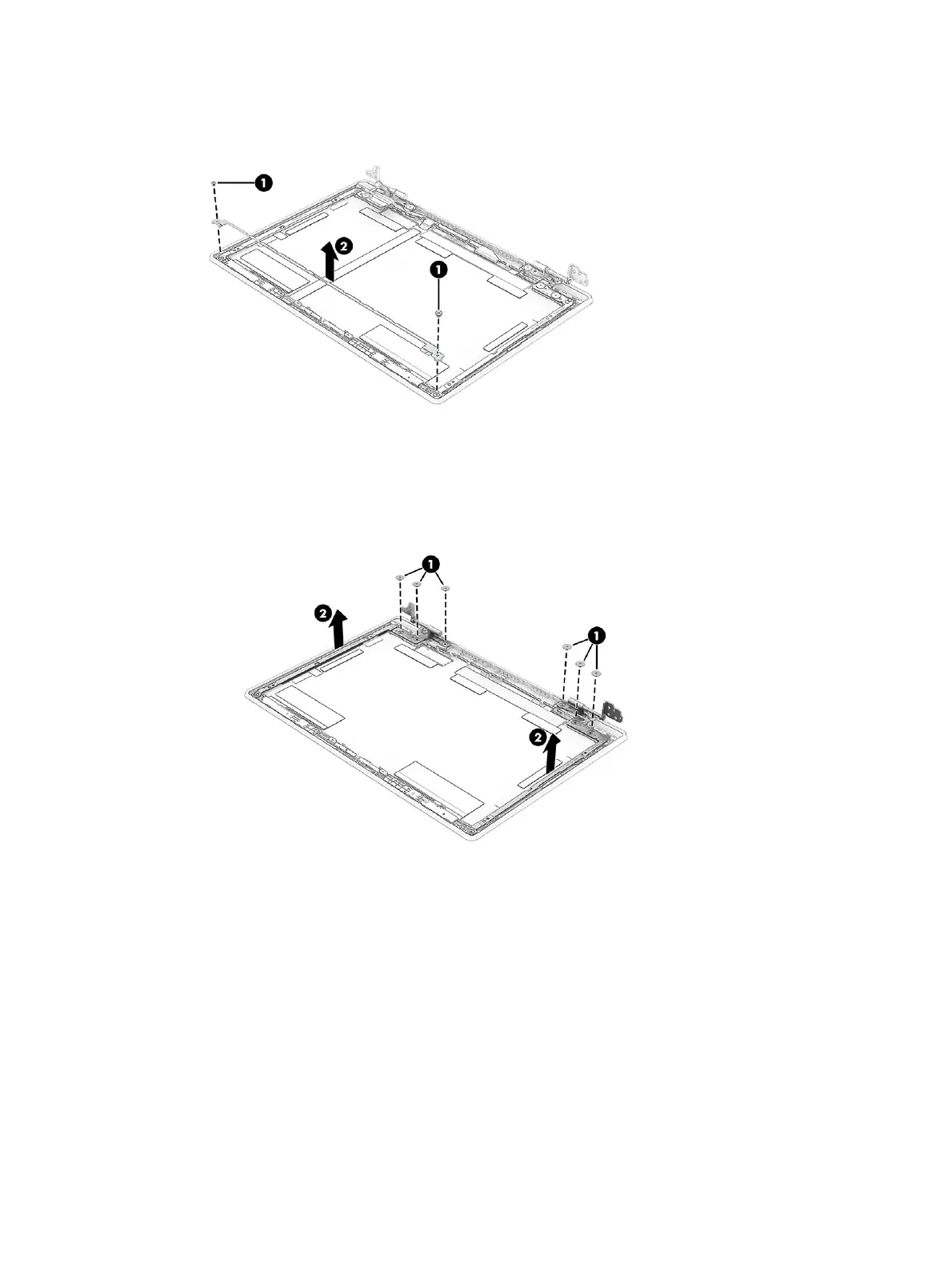

8. Remove the two Phillips M2.0 × 3.0 screws (1) from the top display bracket, and then remove the
bracket (2) from the display back cover.
9. To remove the hinges from the display rear cover:
a. Remove the three Phillips M2.5 × 2.5 broad head screws (1) from each hinge.
b. Remove the hinges (2) from the display back cover.
The display hinges are available as spare part number N85236-001.
10. To remove the camera module:
a. Disconnect the cable from the ZIF connector (1) on the camera module.
Display assembly
49
