Recycling
Maintenance and Service Guide 11 – 3

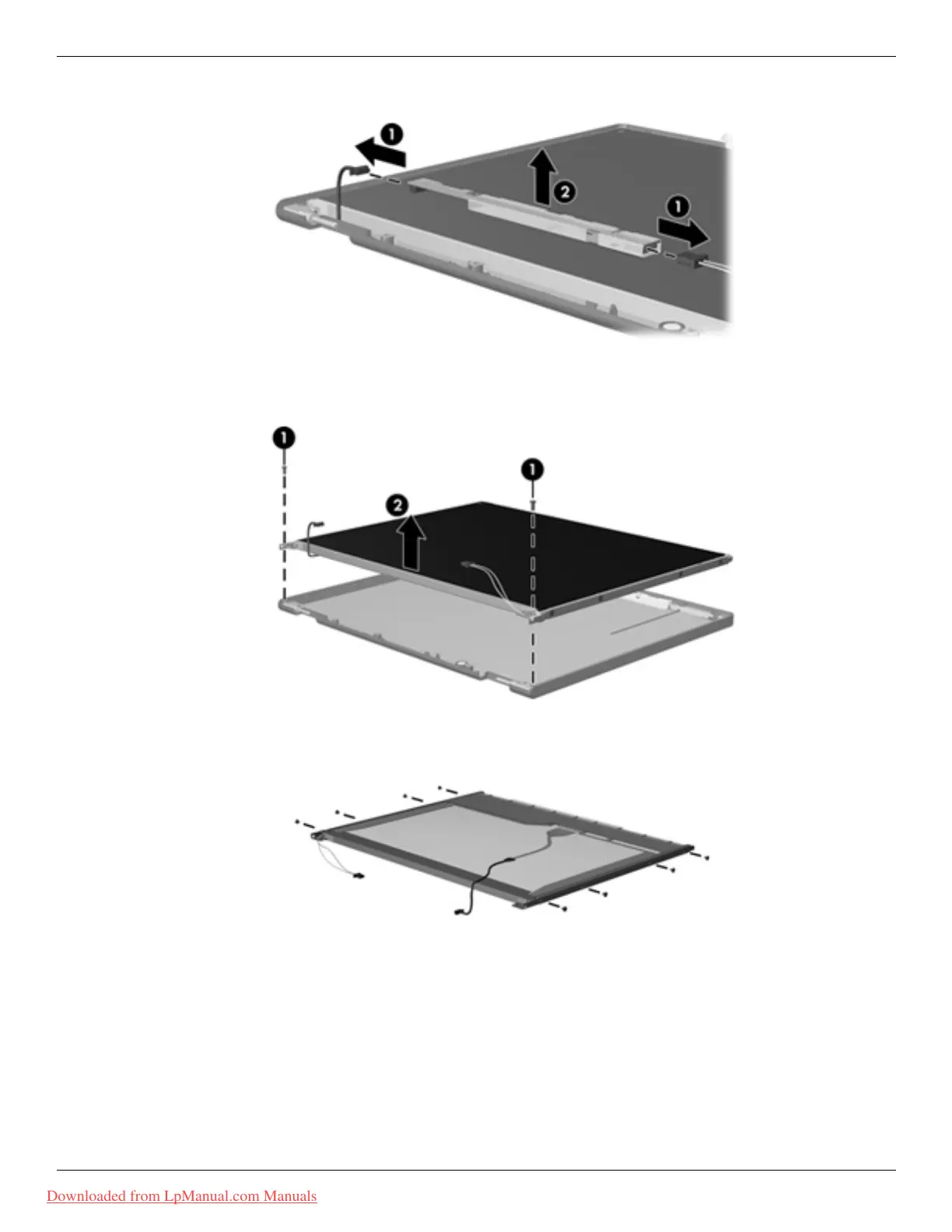

4. Disconnect all display panel cables 1 from the display inverter and remove the inverter 2.
5. Remove all screws 1 that secure the display panel assembly to the display enclosure.
6. Remove the display panel assembly 2 from the display enclosure.
7. Turn the display panel assembly upside down.
8. Remove all screws that secure the display panel frame to the display panel.
