Removal and replacement procedures
Maintenance and Service Guide 4–17
2. Turn the computer right-side up, with the front toward you.
3. Open the computer as far as possible.

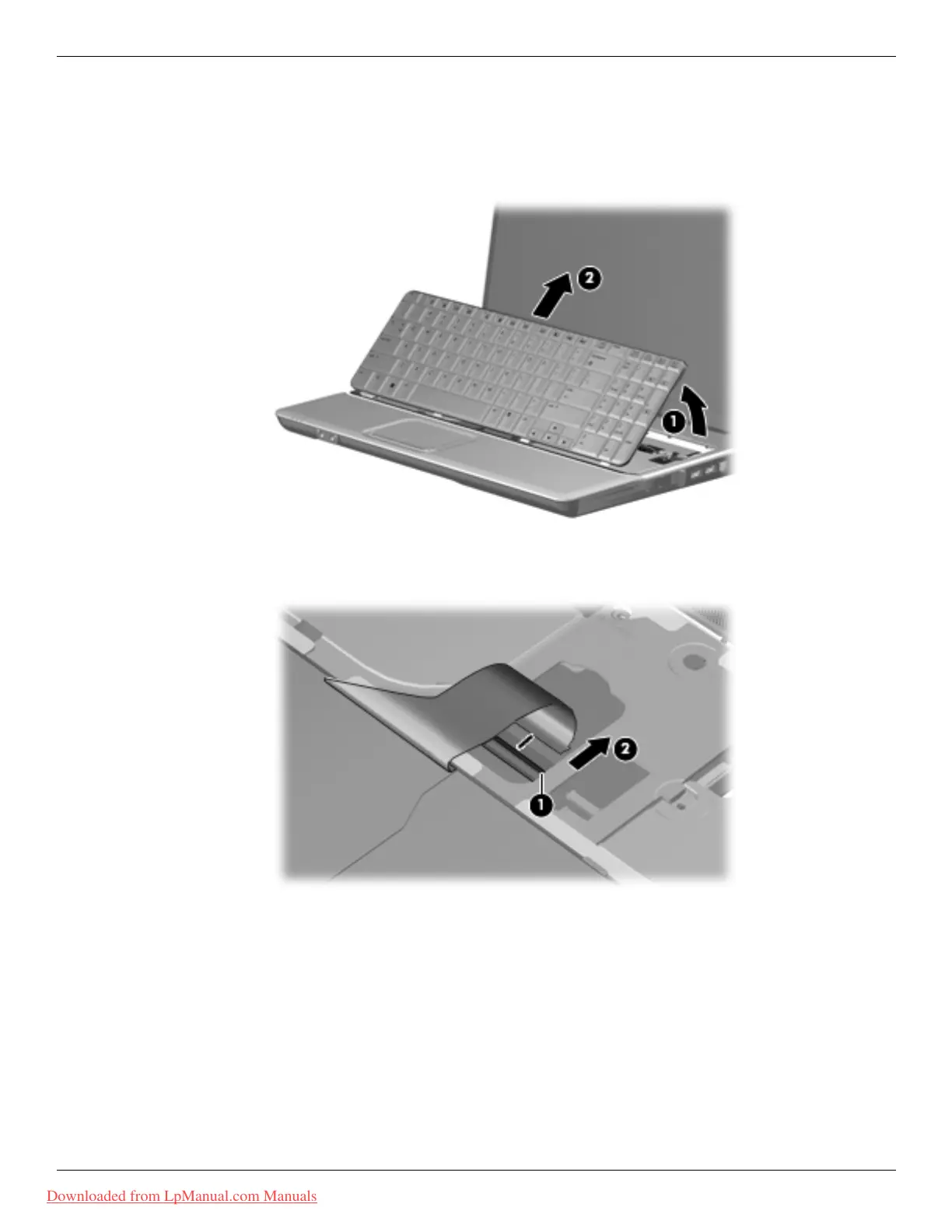

4. Lift the rear edge 1 of the keyboard until it rests at an angle.
5. Slide the keyboard 2 back until the tabs on the bottom of the keyboard are clear of the keyboard cover.
6. Release the zero insertion force (ZIF) connector 1 to which the keyboard cable is attached, and then disconnect
the keyboard cable 2 from the system board.
Reverse this procedure to install the keyboard.
