Removal and replacement procedures
Maintenance and Service Guide 4–19
3. Turn the computer right-side up, with the front toward you.
4. Open the computer as far as possible.

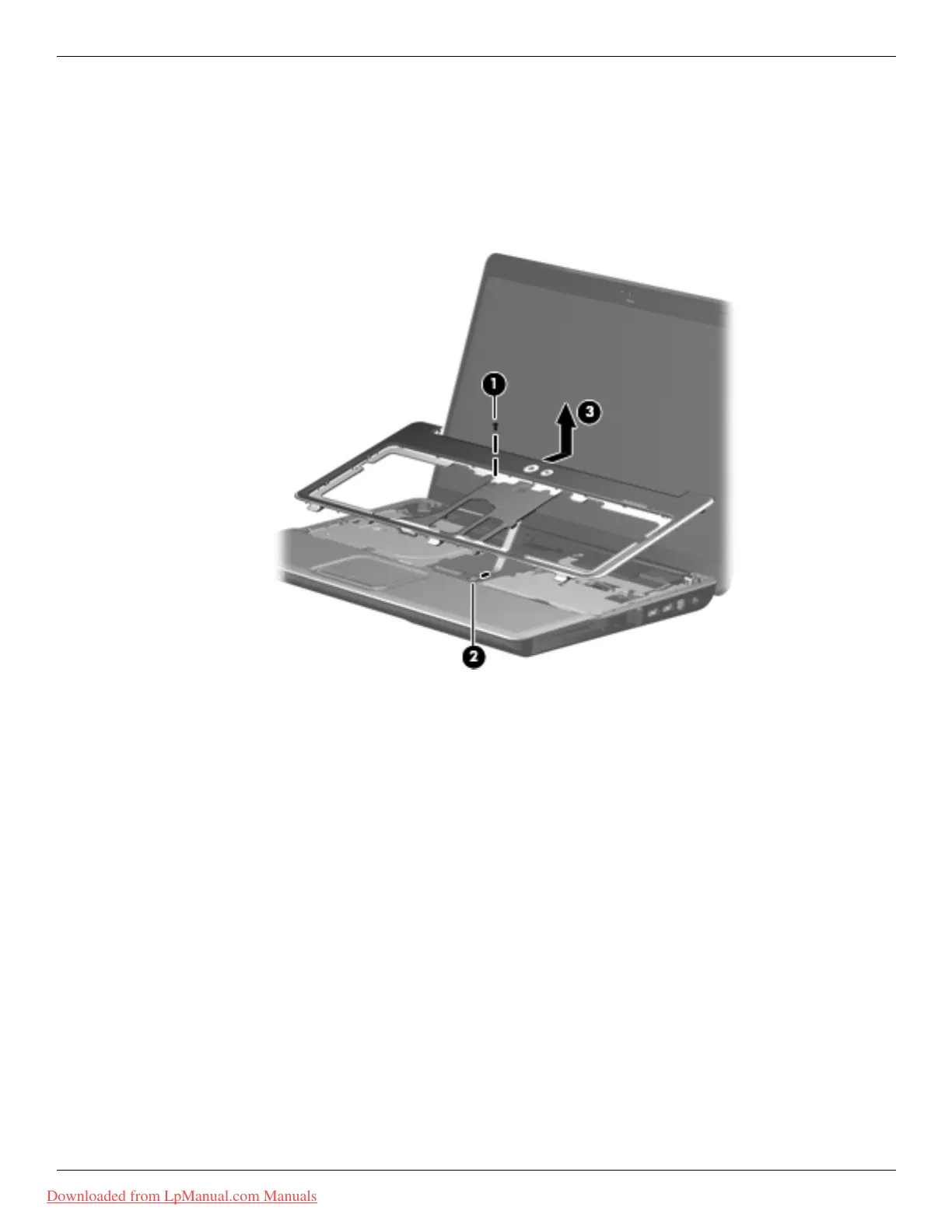

5. Remove the remaining Phillips PM2.5×6.5 screw 1 that secures the keyboard cover to the base enclosure.
6. Disconnect the LED board cable 2, which is attached to the underside of the keyboard cover, from the system
board.
7. Remove the keyboard cover 3.
Reverse this procedure to install the keyboard cover.
