4–22 Maintenance and Service Guide
Removal and replacement procedures

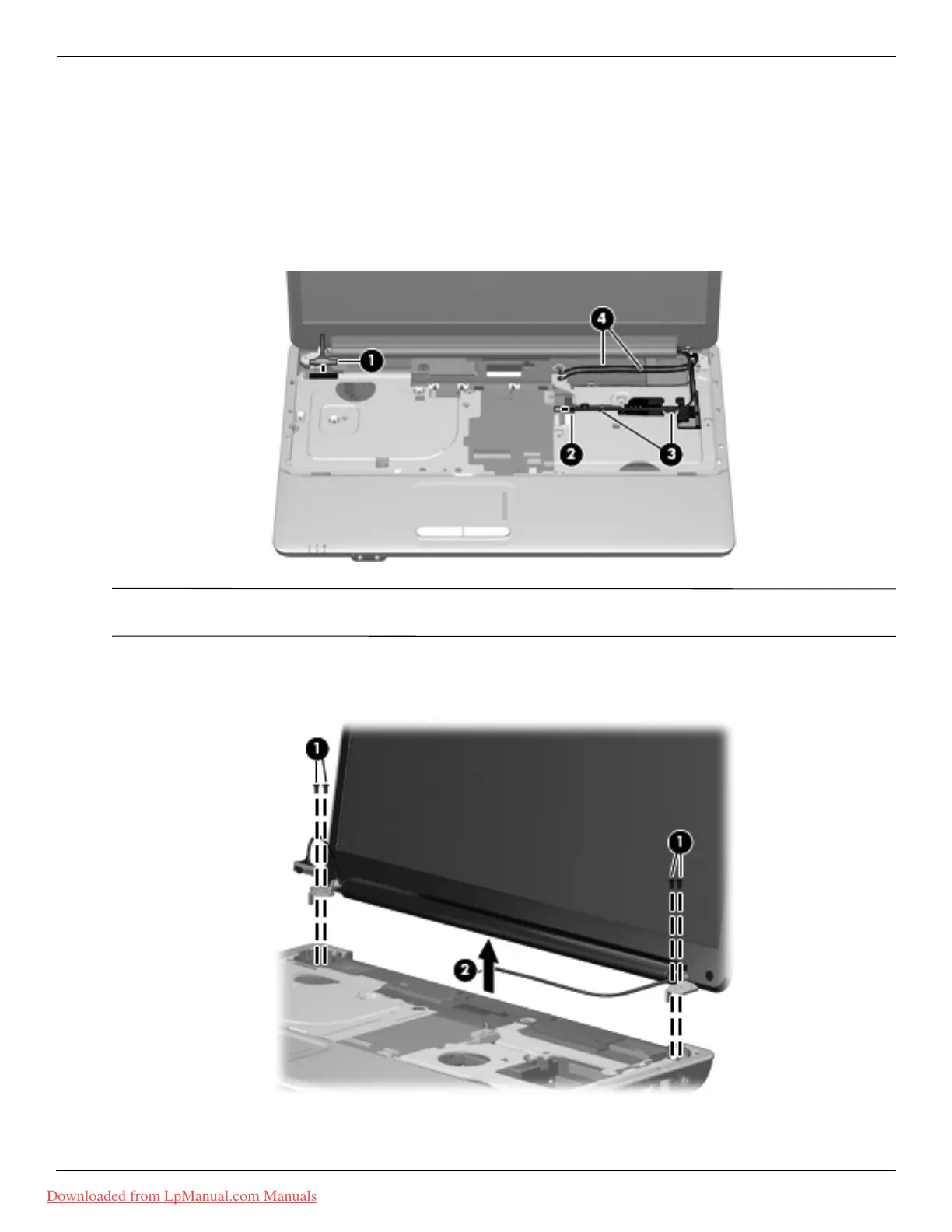

Remove the display assembly:
1. Open the computer as far as possible.
2. Disconnect the display panel/webcam cable 1 from the system board and remove the cable from the cavity
between the system board and the left display hinge.
3. Disconnect the microphone cable 2 from the system board and remove the cable from the clips and routing
channels 3 built into the top cover.
4. Remove the WLAN antenna cables 4 from the clips and routing channels built into the top cover.
Ä
CAUTION: Support the display assembly when removing the following screws. Failure to support the display
assembly can result in damage to the display assembly and other computer components.
5. Remove the four Phillips PM2.5×6.5 screws 1 that secure the display assembly to the base enclosure.
6. Lift the display assembly 2 straight up.
