4–30 Maintenance and Service Guide
Removal and replacement procedures
3. Turn the computer right-side up, with the front toward you.

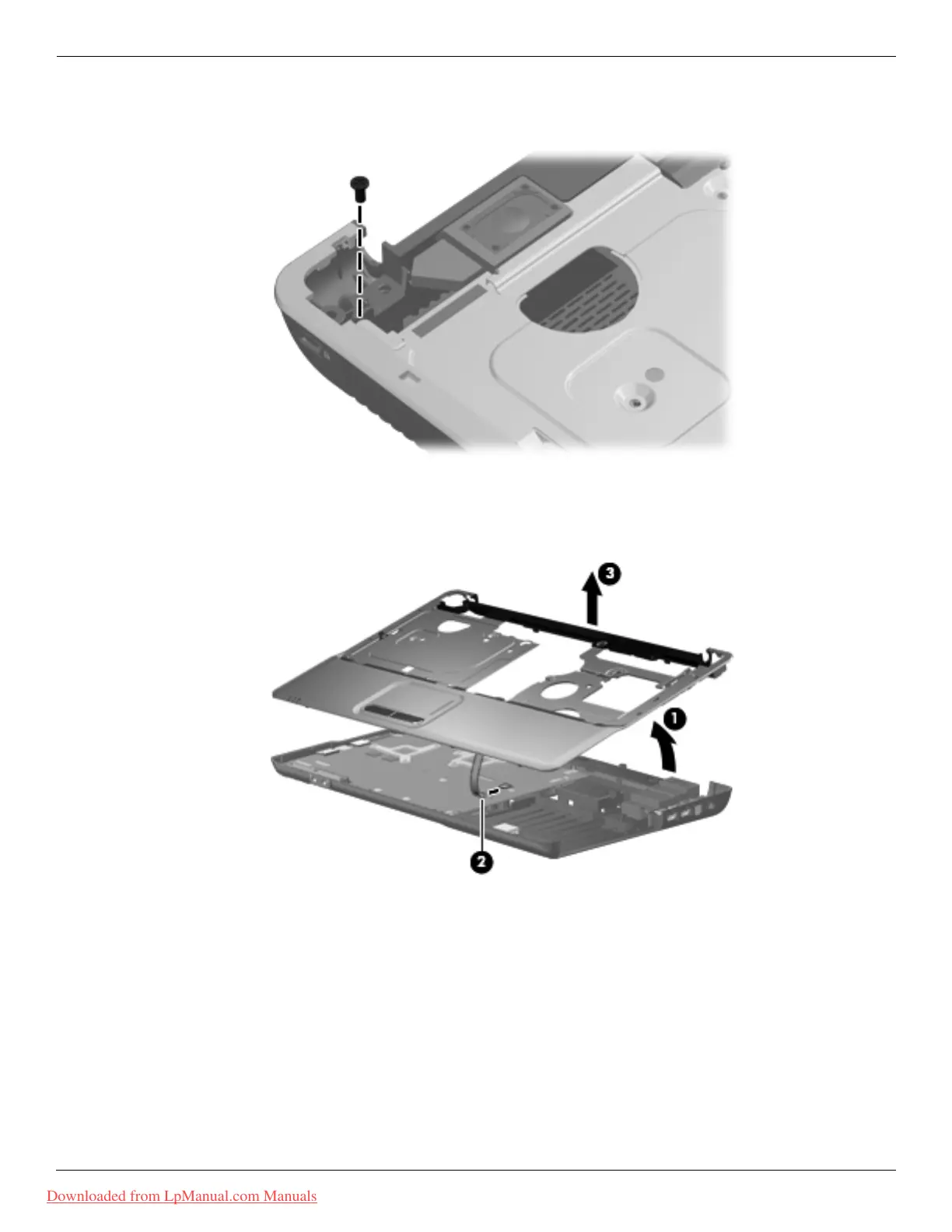

4. Remove the Phillips PM2.5×6.5 screw 1 located in the top left corner of the base enclosure.
5. Lift the rear edge of the top cover until it disengages from the base enclosure 1.
6. Disconnect the TouchPad cable 2 from the system board.
7. Remove the top cover 3.
Reverse this procedure to install the top cover.
