HP G72 User Manual

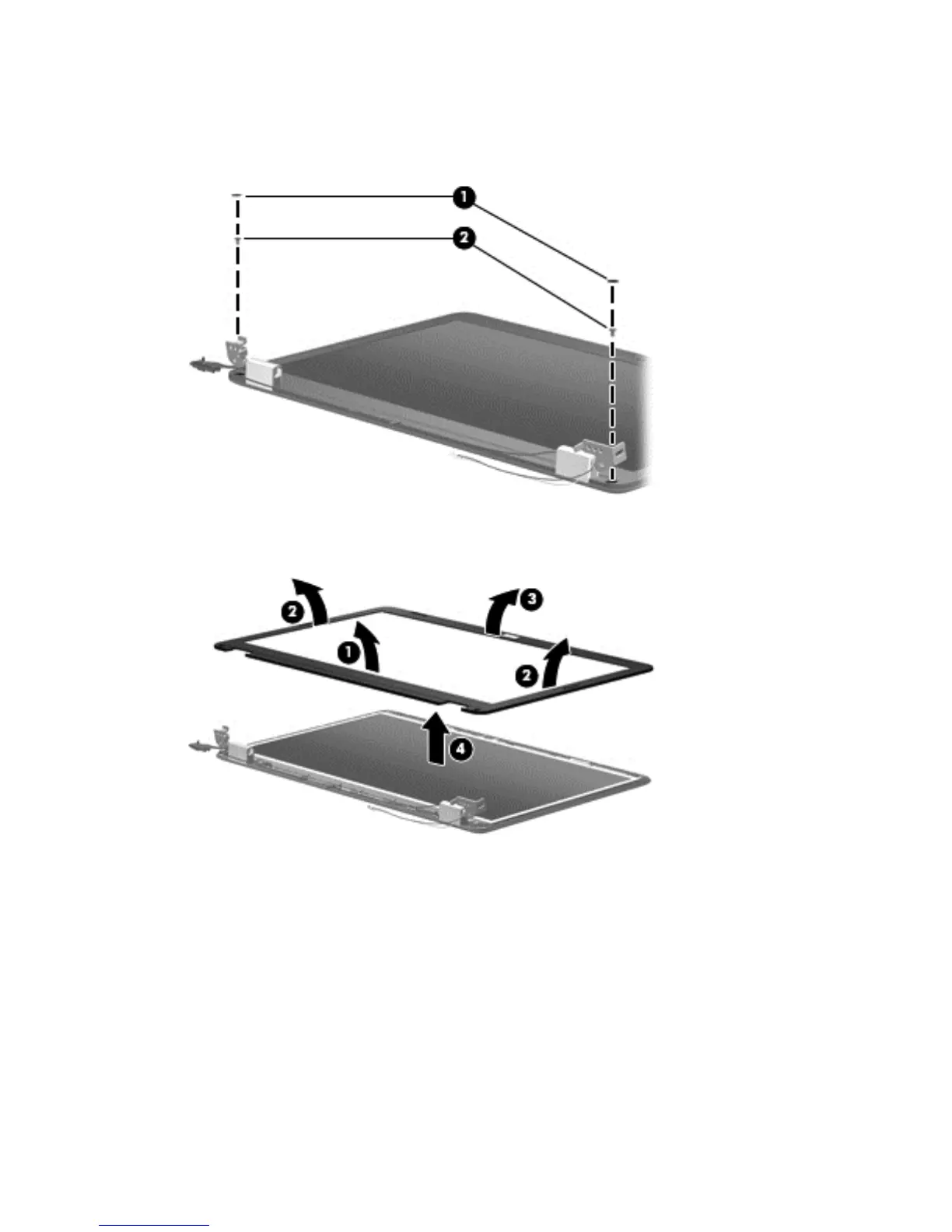

Perform the following steps to disassemble the display assembly:
1. Remove all screw covers (1) and screws (2) that secure the display bezel to the display
assembly.
2. Lift up and out on the left and right inside edges (1) and the top and bottom inside edges (2) of
the display bezel until the bezel disengages from the display assembly.
3. Remove the display bezel (3).
116 Chapter 10 Recycling

HP G72 Specifications

General

Display Size	17.3 inches
Resolution	1600 x 900
Graphics	Intel HD Graphics or ATI Mobility Radeon HD 5470
Wireless	802.11 b/g/n
Battery	6-cell Lithium-Ion
Operating System	Windows 7
Weight	6.6 lbs (3 kg)
Optical Drive	DVD±RW
Networking	10/100 Ethernet
Ports	3 x USB 2.0, HDMI, VGA
RAM	Up to 8 GB DDR3
