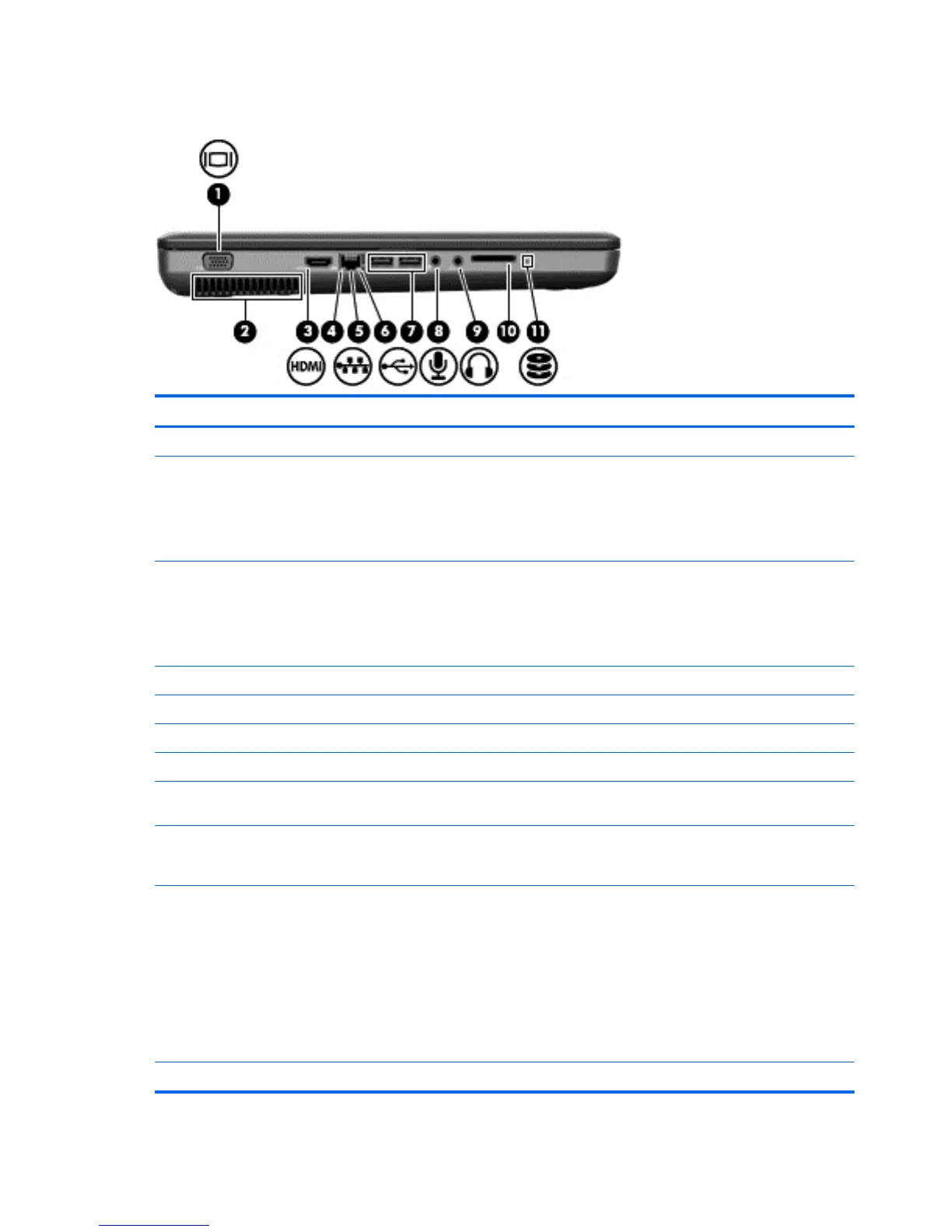

Left-side components
Component Description
(1) External monitor port Connects an external VGA monitor or projector.
(2) Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.
(3) HDMI port (select models only) Connects an optional video or audio device, such as a
high-definition television, or any compatible digital or audio
component.
NOTE: Depending on the computer model, the computer
might include an HDMI port or a USB port at this location.
(4) Network connection light White—The computer is connected to the network.
(5) RJ-45 (network) jack Connects a network cable.
(6) Network activity light Amber—Data is being transmitted over the network.
(7) USB ports (2) Connects an optional USB devices.
(8) Audio-in (microphone) jack Connects an optional computer headset microphone,
stereo array microphone, or monaural microphone.
(9) Audio-out (headphone) jack Produces sound when connected to optional powered
stereo speakers, headphones, earbuds, a headset, or
television audio.
(10) Digital Media Slot (select models only) Supports the following optional digital card formats:
●
Memory Stick (MS)
●
Memory Stick Pro (MSP)
●
MultiMediaCard (MMC)
●
Secure Digital (SD) Memory Card
●
xD-Picture Card (XD)
(11) Drive light On—The hard drive is in use.
12 Chapter 2 External component identification
