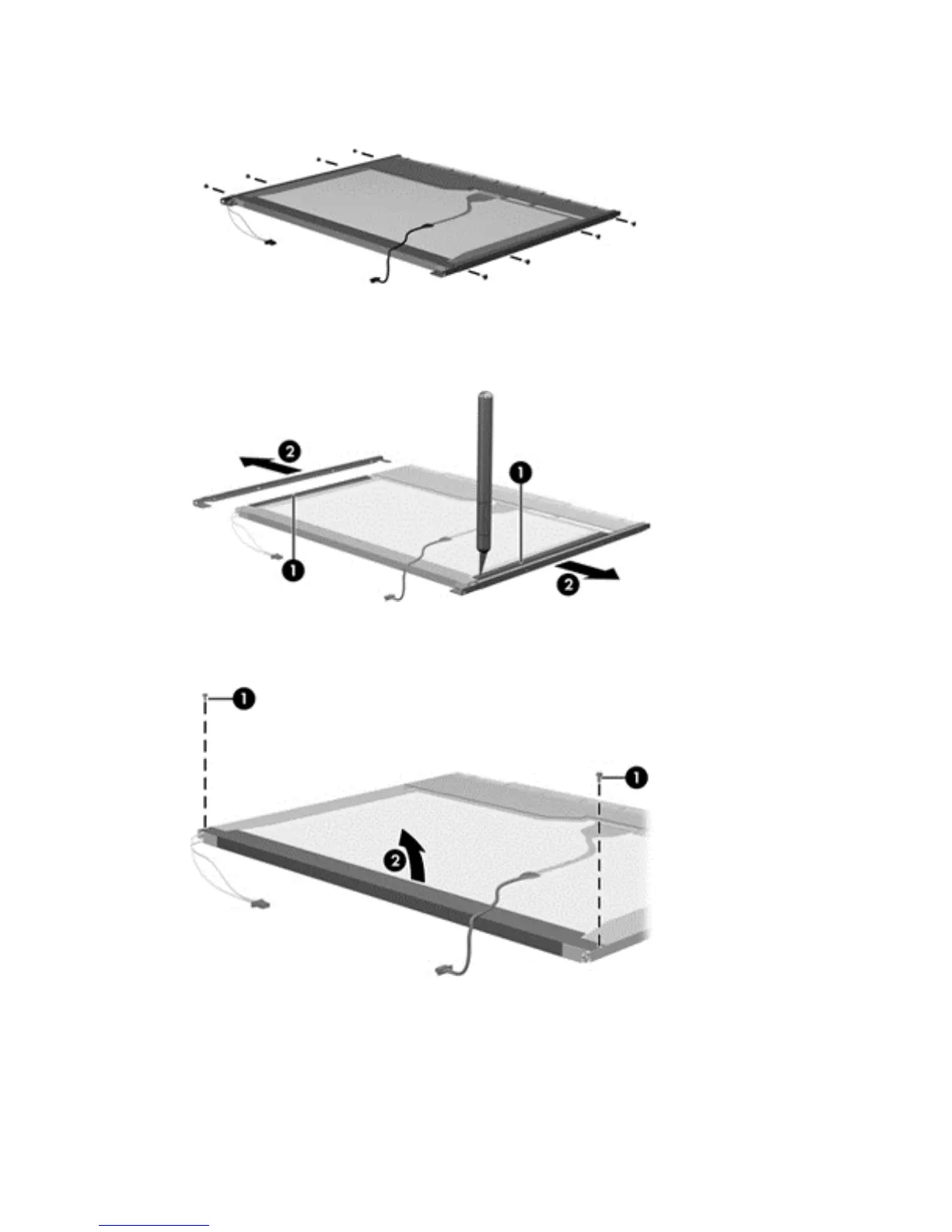

7. Turn the display panel assembly upside down and remove all screws that secure the display
panel frame to the display panel.
8. Use a sharp-edged tool to cut the tape (1) that secures the sides of the display panel to the
display panel frame.
9. Remove the display panel frame (2) from the display panel.
10. Remove the screws (1) that secure the backlight cover to the display panel.
11. Lift the top edge of the backlight cover (2) and swing it outward.
12. Remove the backlight cover.
13. Turn the display panel right-side up.
118 Chapter 10 Recycling
