Setting Up the PC 7
ETHERNET
Ethernet LAN connector
The network interface adapter (also called a network interface
card, or NIC) connects to an Ethernet (10BaseT) or Fast
Ethernet (100BaseT) network hub. Connect this adapter in
your PC to your local area network (LAN) hub or any
broadband connection.
Plug a network cable into the Ethernet (RJ-45) port on the back
of the PC. Plug the other end of the network cable
into a 10BaseT or 100BaseT port on the network hub.
The green LED indicates a valid connection.
Digital video output connector for TV/monitor
(select models only)
See the documentation that came with your display device.
Microphone In (pink)
Audio Line Out (powered speakers, green)
Audio Line In (blue)
Center Center/Subwoofer audio (gold)
Rear L – R rear audio (black)
Side L – R side audio (gray)
S-video
S-video In from set-top box output connector

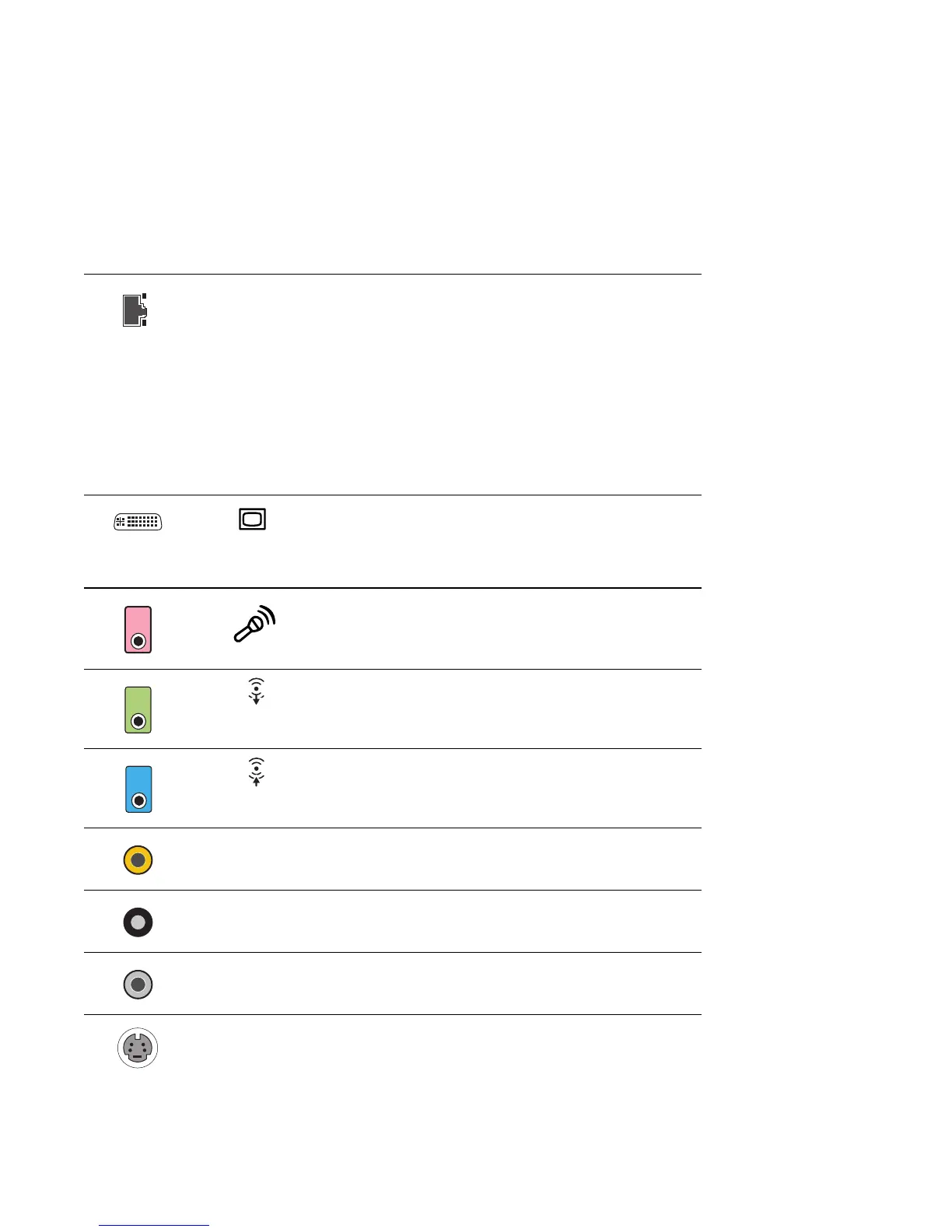

Connector Icon/label Description and function
ETHERNET
OUT
IN
