36 HP Media Center PC Getting Started Guide

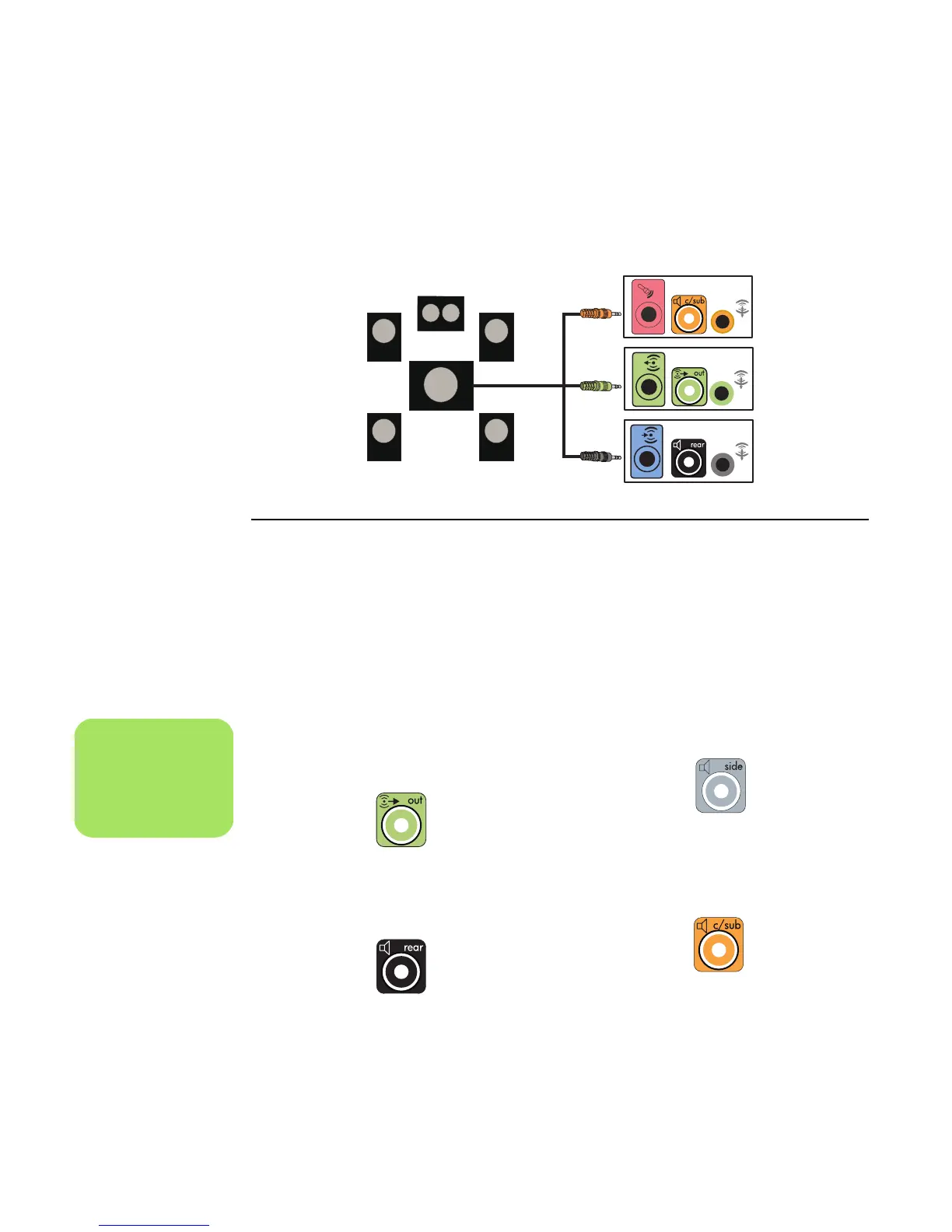

The following diagram shows a typical 5.1 audio installation:
Connecting 7.1 (7 Speakers and a Subwoofer) Audio Speakers
(Select models only)
To connect two front speakers, two side speakers,
two rear speakers, a center speaker, and a
subwoofer for eight-channel (7.1 speaker) output:
1 Turn off the PC.
.
2 Connect the front speaker cable to the lime--
green Audio Line Out connector on the back
of your PC.
3 Connect the rear speaker cable to the black
connector on the back of your PC.
4 For type 6 connectors only, connect the side
speaker cable to the gray connector on the
back of your PC.
5 Connect the center speaker and subwoofer
speaker cable to the gold connector on the
back of your PC.
6 Connect the cables to the audio system.
OUT
IN
n
Type 6 is six
connectors
