30 HP Media Center PC Getting Started Guide
Use the sound connectors that match your PC model
when installing cables, as shown in the installation
procedure steps.

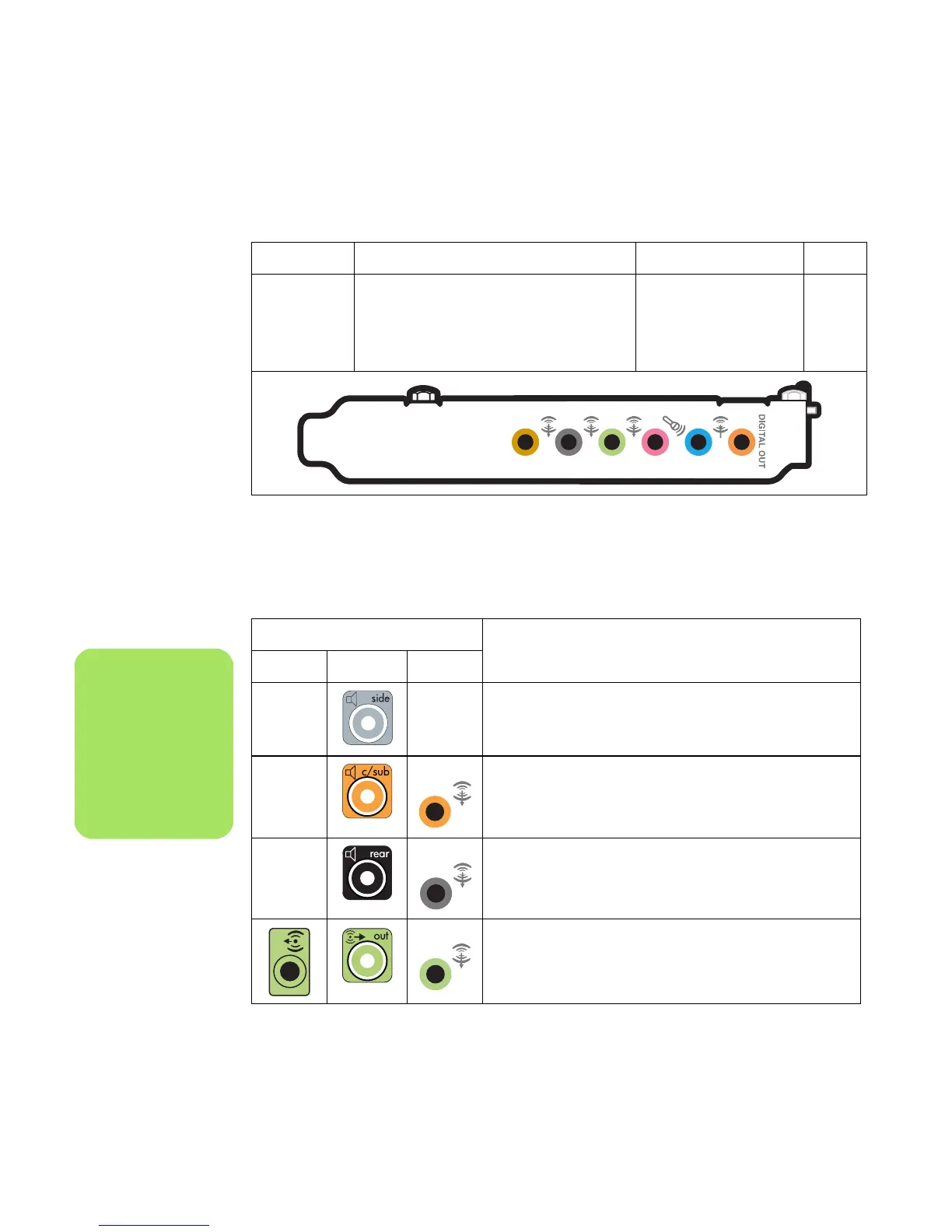

The following table shows the sound connectors on
the back panel of PC systems.
Sound card
connector
Your PC may include a sound card. You
can connect up to a 5.1 audio system
(7.1 audio system for select models) or
digital speakers to the sound card on
the PC.
See below. S
Connector Description Illustration Type
n
Type 3 is three
connectors
Type 6 is six
connectors
Type S is sound card
Sound connector
DescriptionType 3 Type 6 Type S
Line Side (gray) for side speakers in an eight-speaker
system (7.1).
A Line C/Sub (gold) for center/subwoofer speakers in a
multichannel audio configuration.
B Line Rear (black) for rear speakers in a multichannel audio
configuration.
C Line Out (lime green) for front speakers.
OUT
