Using the PC Hardware 69
Installing an HP Camera Docking Station
Some HP Media Center PCs include a camera
docking bay. This bay is designed to hold an HP
camera docking station and some HP digital
cameras. The following items are optional and can
be purchased separately:
■ Camera docking station
■ Digital camera cables
■ PC camera docking bay lids
■ HP digital camera and bracket
To install the HP camera docking station:
1 Gently press down the CD storage lid and
slide it open.

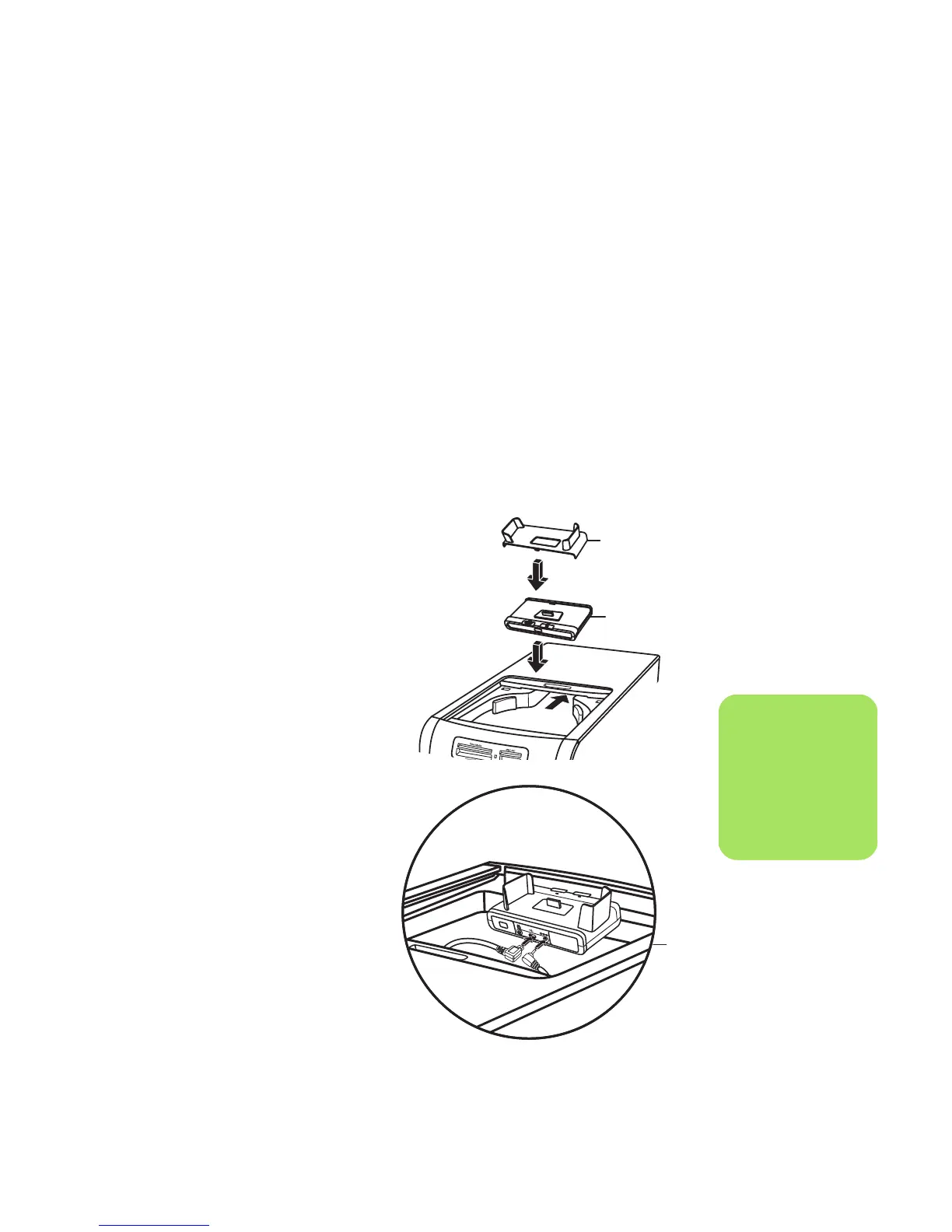

2 Place the camera docking station (A) on the
top of the PC.
3 Place the camera bracket (B) that came with
your digital camera on the camera docking
station.
.
4 Thread the cables (C) that came with your
camera docking station through the cable
tunnel, starting from the back of the PC and
threading them to the front of the PC. Pull
cables to the center.
A
B
n
The camera bracket
clips onto the camera
dock base. This
bracket comes with
the digital camera.
DC
IN
C
To Next Page
