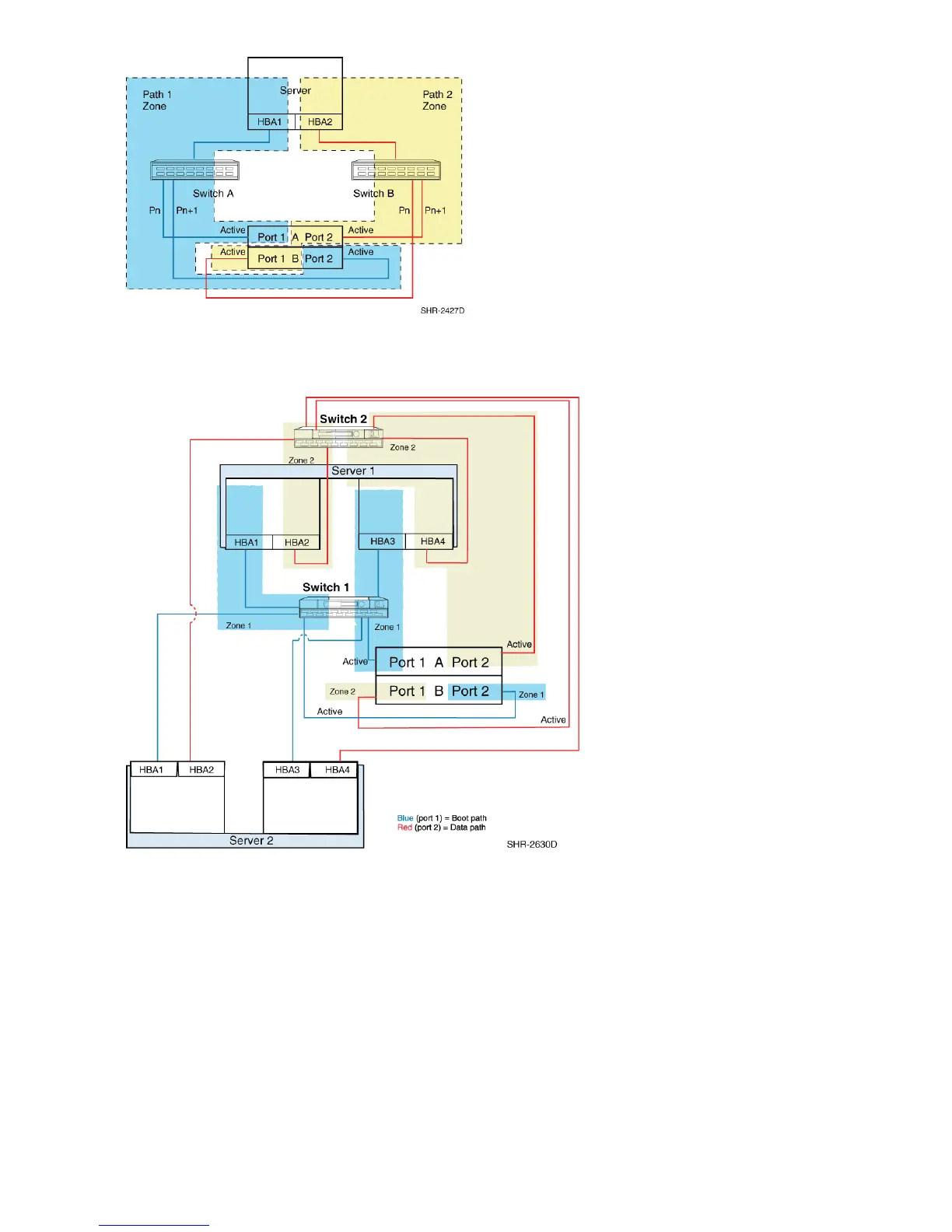

Figure 5 Single server, two single-channel HBAs, two switches, straight-cable HA storage configuration
.
The configuration shown in Figure 6 supports SCSIPORT or Storport miniport drivers.
Figure 6 Clustered servers, four single-channel HBAs per server, two switches, cross-cable HA storage
configuration
.
Cabling options for dual-channel HBAs
Dual-channel HBAs are typically used when the number of server PCI slots is limited. Figure 7 through
Figure 12 show the cabling options for dual-channel HBAs.
Boot from SAN18

HP Integrity rx2800 - i2 Specifications

General

Number of Processors	1 or 2
Expansion Slots	6 PCI-X slots
RAID Support	Yes
Network Controller	Integrated dual Gigabit Ethernet
Operating Systems	HP-UX, Linux, Windows Server
Form Factor	2U rackmount
Storage	Up to 1.8TB
Network	Ethernet
