HP Integrity rx2800 - i2 White Paper

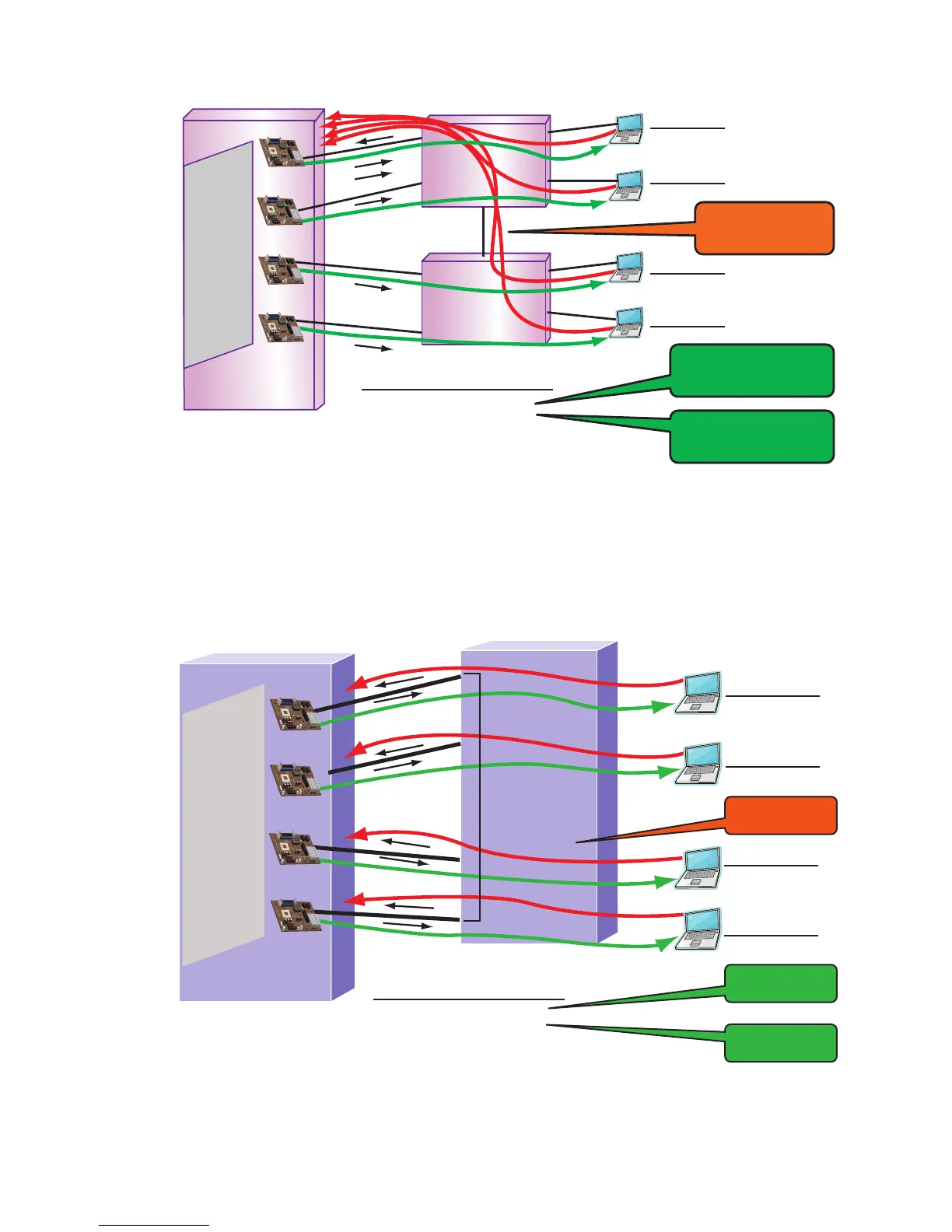

Figure 4-18 TLB does not provide receive load balancing
HP Network
Adapter
Team
1.1.1.1
(TLB)
HP Integrity Server
NIC 1 (A)
PRIMARY
NIC 4 (D)
SECONDARY
NIC 3 (C)
SECONDARY
NIC 2 (B)
SECONDARY
Switch
Switch
Client ARP Table:
1.1.1.1 = A
Client ARP Table:
1.1.1.1 = A
Client ARP Table:
1.1.1.1 = A
Client ARP Table:
1.1.1.1 = A
Switch
Redundancy
Transmit Load
Balancing
No Receive
Load Balancing
Maximum Server Bandwidth
Transmit = 4000 Mbit
Receive = 1000 Mbit
• SLB supports transmit load balancing. SLB also supports receive load balancing due to
assistance from the port trunking technology on the switch. However, SLB requires all
teamed ports be connected to the same switch (refer to Figure 4-19). As a result, SLB doesn’t
provide switch redundancy.
Figure 4-19 SLB does not provide switch redundancy
HP Network
Adapter
Team
Client 1
Client 2
Client 3
Client 4
1.1.1.1
(802.3ad
Or
SLB)
HP Integrity Server
NIC 1 (A)
PRIMARY
NIC 4 (A)
SECONDARY
NIC 3 (A)
SECONDARY
NIC 2 (A)
SECONDARY
Switch
Client ARP Table
Maximum Server Bandwidth
Transmit = 4000 Mbit
Receive = 4000 Mbit
1.1.1.1 = A
Client ARP Table
1.1.1.1 = A
Client ARP Table
1.1.1.1 = A
Client ARP Table
1.1.1.1 = A
No Switch
Redundancy
Transmit Load
Balancing
Receive Load
Balancing
Port
Channel
Dual Channel and Dynamic Dual Channel were developed to address the predicament of having
to choose inbound load balancing (SLB or 802.3ad) versus switch redundancy (NFT or TLB).
74 The Mechanics of Teaming for the Advanced User

HP Integrity rx2800 - i2 Specifications

General

Number of Processors	1 or 2
Expansion Slots	6 PCI-X slots
RAID Support	Yes
Network Controller	Integrated dual Gigabit Ethernet
Operating Systems	HP-UX, Linux, Windows Server
Form Factor	2U rackmount
Storage	Up to 1.8TB
Network	Ethernet
