Installing the Switch
Stacking Information and Topologies
Ring Topologies
Up to 10 switches may also be connected in closed ring topologies. Ring
topologies afford some protection from a single failure because
communications between the switches continues, in a direction away from
the failure.

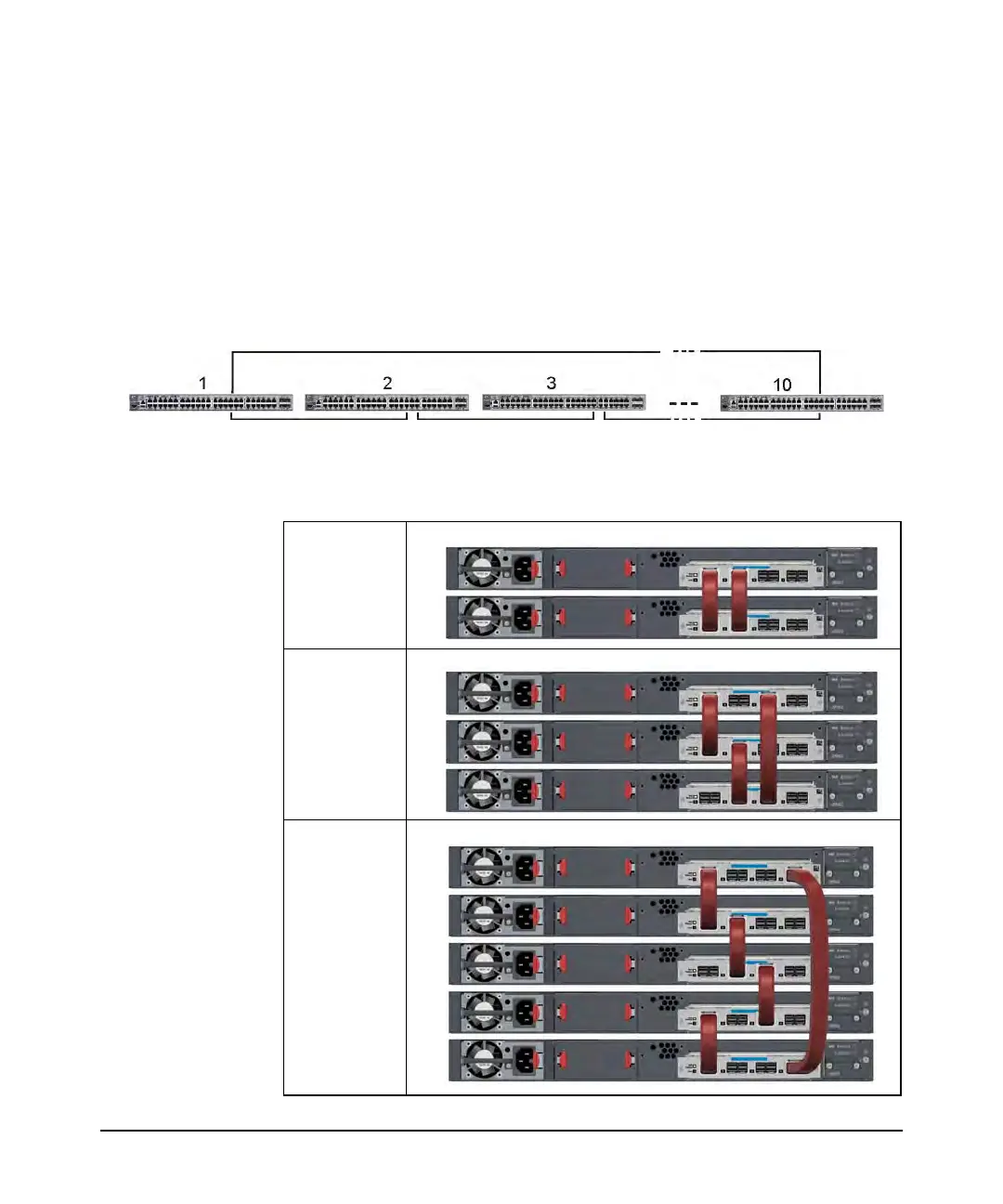

A typical ring topology is illustrated in Figure 2-20.
Figure 2-20. Typical ring topology
Cable connection examples for stacked rings are illustrated in Figure 2-21.
Figure 2-21. Cable connection examples for ring topologies
2-switch ring
3-switch ring
5-switch ring
