2-21
Installing the switch
Installation procedure

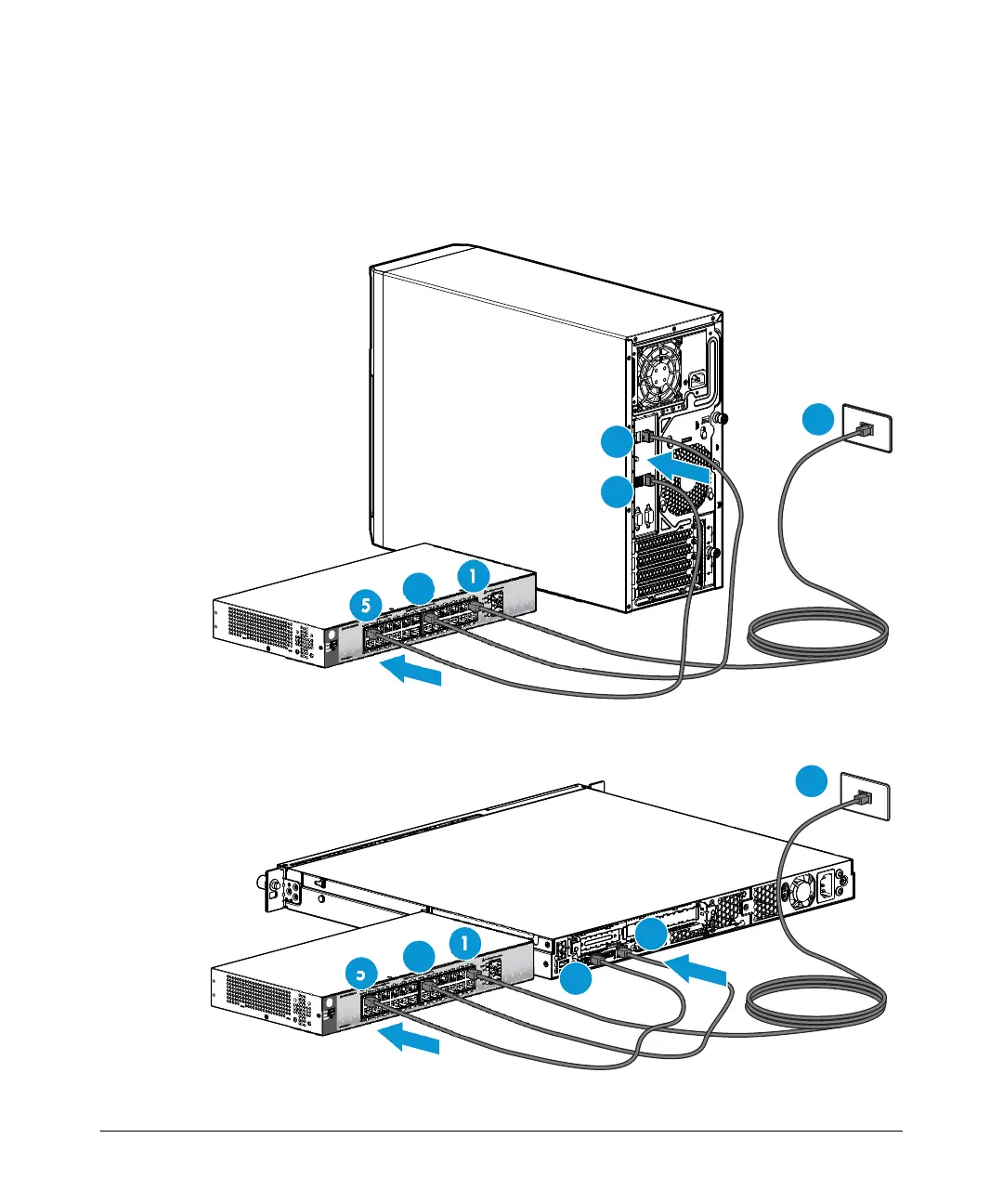

PS1810-24G Switch
Connect the PS1810-24G Switch
to an HP ProLiant ML310e Gen8 v2 Server or an
HP ProLiant DL320e Gen8 v2 Server
.
HP ProLiant ML310e Gen8 v2 Server
HP ProLiant DL320e Gen8 v2 Server
1
3
2
4
6
5
1
3
2
4
6
5
32
34
Table of Contents
Default Chapter
5
Table of Contents
5
Switch Overview
7
Switch Hardware Description
8
Network Ports
9
Leds
10
Reset Button
11
Clear Button
11
Power Connector
11
Switch Features
12
Installing the Switch
13
Included Parts
13
Installation Precautions
15
Installation Procedure
16
Prepare the Installation Site
17
Mount the Switch
17
Using a Kensington Security Cable
21
Connect the Network Cables
26
Power on the Switch and Verify that Self-Test Completes Normally
27
SFP Installation Notes
30
Connections to HP Proliant Gen8 Servers
31
Configuring the HP PS1810 Switches
35
Initial Configuration
35
Managing the Switch Via the 192.168.2.10 Address
37
Restoring DHCP Addressing to the Switch
38
Next Steps
39
Troubleshooting
40
Basic Troubleshooting Tips
40
Diagnosing with the Leds
41
Diagnostic Tips
41
Testing the Switch by Resetting It
43
Restoring to Factory Defaults
43
HP Customer Support Services
44
Before Calling Support
44
HP Customer Support Services
45
A Specifications
46
Switch Specifications
46
Physical
46
Electrical
46
Environmental
47
Acoustics
47
Safety
47
Standards
48
Cabling and Technology Information
49
Cabling Specifications
49
Technology Distance Specifications
50
Mode Conditioning Patch Cord
51
Installing the Patch Cord
51
Twisted-Pair Cable/Connector Pin-Outs
53
Straight-Through Twisted-Pair Cable for 10 Mb/S or 100 Mb/S Network Connections
54
Cable Diagram
54
Pin Assignments
54
Crossover Twisted-Pair Cable for 10 Mb/S or 100 Mb/S Network Connection
55
Straight-Through Twisted-Pair Cable for 1000 Mb/S Network Connections
56
B EMC Regulatory Statements
58
Regulatory Statements
58
Index
