Diagnostics
Support File
Support File
Use the support file page to display summary information for the switch on a single page.

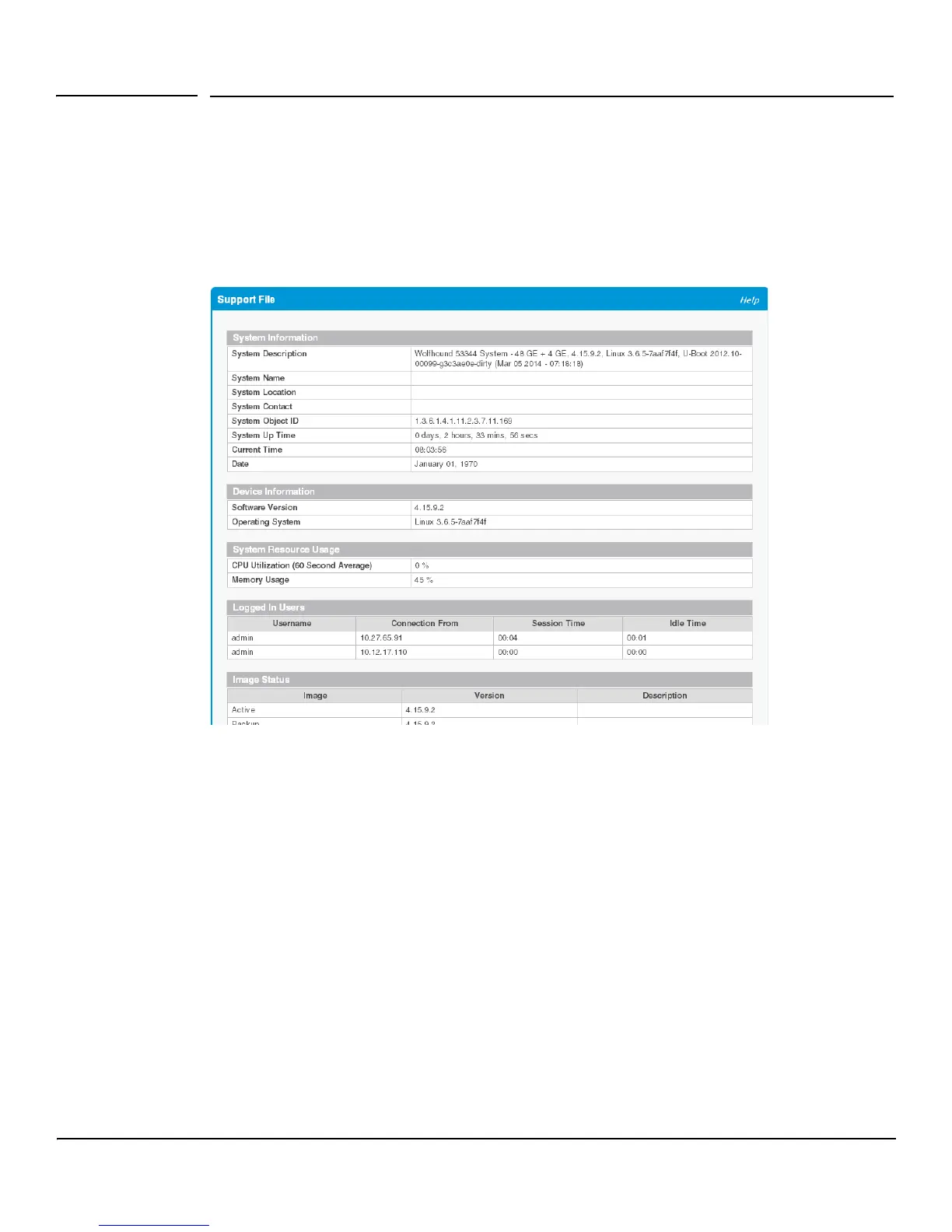

To display the Support File page, click Diagnostics > Support File in the navigation pane. Figure 11-6 shows
a partial view of the page.
Figure 11-6.Support File Page
The support file page includes the following information:
■ System Information— A system description, name, location, and contact information, along with
date and time information
■ Device Information—Software and OS versions
■ System Resource Usage—CPU and memory usage data
■ Image Status and Image Description—The active and backup image status and versions
■ Buffered Log and Configuration— Messages and logging configuration details
■ Syslog Configuration—Syslog status and remote port and address information
■ Time Configuration and Time Zone—SNTP client status and time zone configuration
■ Network Details—Switch IP and MAC addresses
■ Web Parameters and Management Access—Web session timeout and access port and management
VLAN information
■ SNMP—Status and community configuration
