29
Appendix A Chassis views and technical
specifications
Chassis views
The figures in this appendix are for illustration only.
JH296A

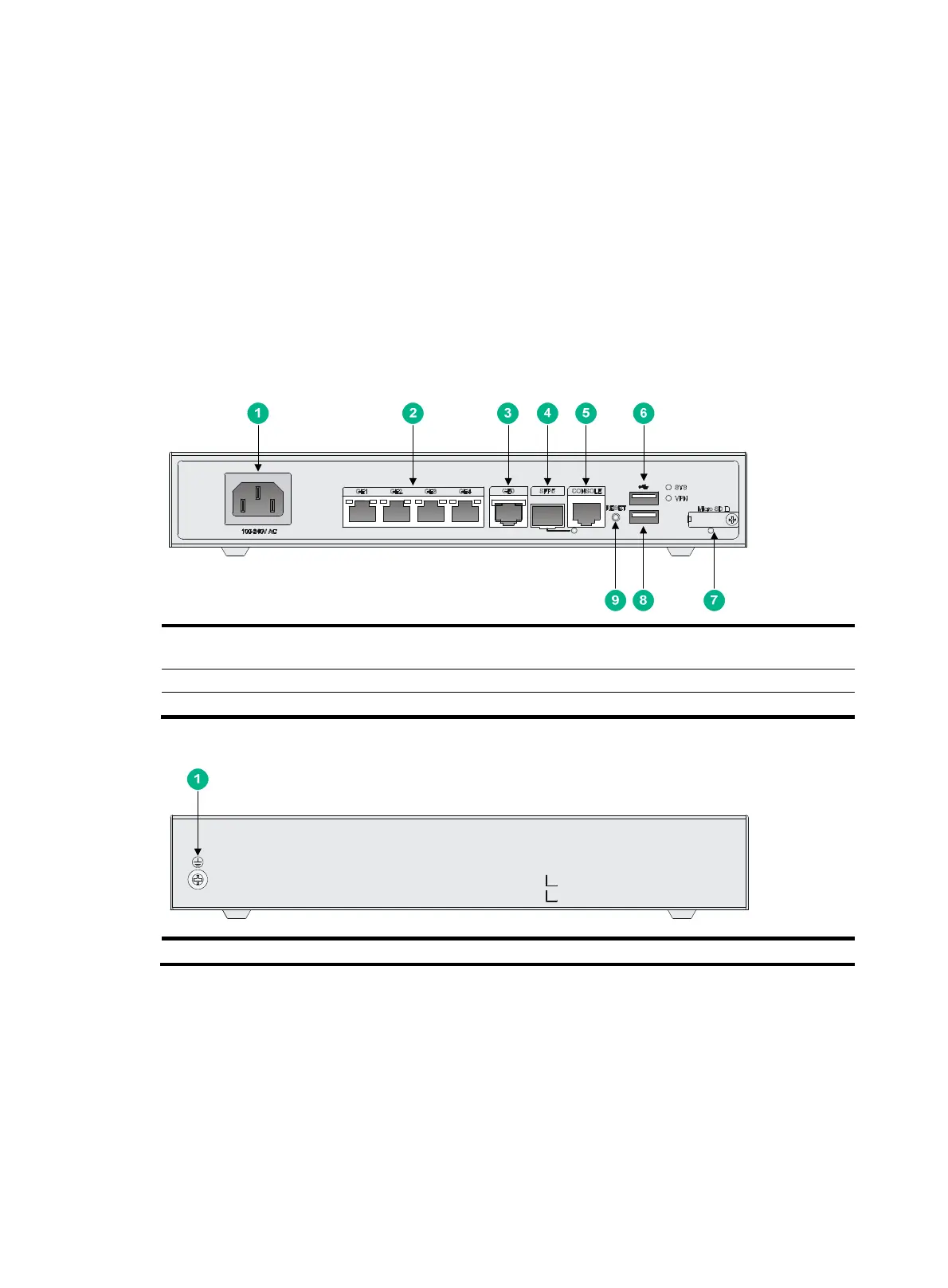

Figure 27 Front view
(1) AC power receptacle (2) Gigabit Ethernet LAN ports
(GE1 to GE4)
(3) Gigabit Ethernet WAN port (GE0)
(4) Gigabit fiber port (SFP5) (5) Console port (6) USB port
(7) Micro SD card slot (8) USB port (9) Reset button (RESET)
Figure 28 Rear view
(1) Grounding screw
