Main motor
1. Remove the following assemblies:
●
Scanner assembly. See
Scanner assembly on page 60.
●
Formatter. See
Formatter on page 81.
●
Right and left cover. See
Side covers on page 74.
●
Print-cartridge door. See
Print-cartridge door on page 76.
●
Rear cover and fuser cover. See
Rear cover and fuser cover on page 77.
●
Front cover. See
Front cover on page 79.
●
Scanner support frame. See
Scanner support frame on page 86.
●
Laser/scanner assembly. See
Laser/scanner assembly on page 89.
2. Remove one screw (callout 1), and then carefully disconnect one wire-harness connector (callout
2).

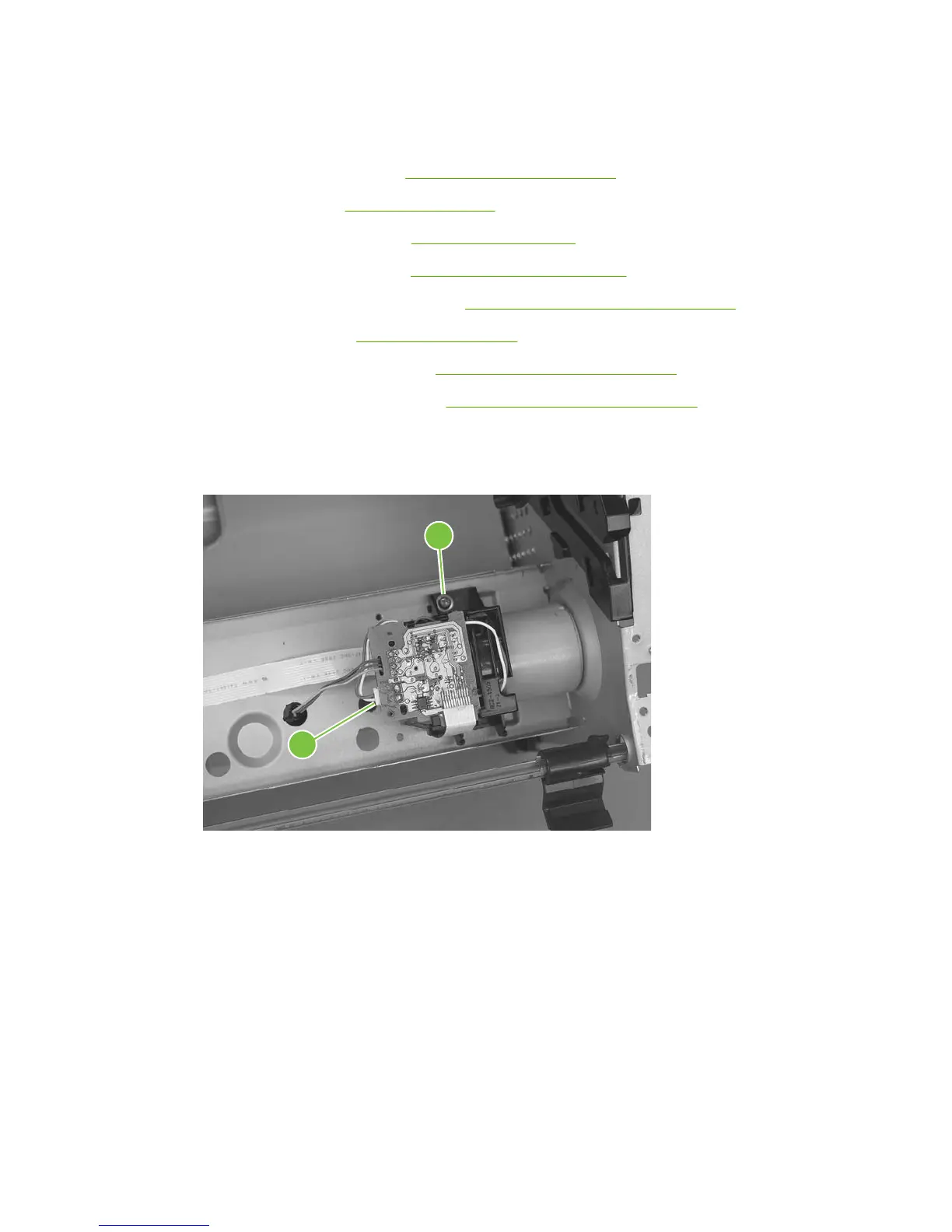

Figure 5-70 Remove the main motor (1 of 4)
1
2
ENWW Product base 93
