Fuser
1. Remove the following assemblies:
●
Scanner assembly. See
Scanner assembly on page 60.
●
Right and left covers. See
Side covers on page 74.
●
Print-cartridge door. See
Print-cartridge door on page 76.
●
Rear cover and fuser cover. See
Rear cover and fuser cover on page 77.
●
Front cover. See
Front cover on page 79.
●
Formatter. See
Formatter on page 81.
●
Scanner support frame and chassis reinforcement plate. See
Scanner support frame
on page 86.

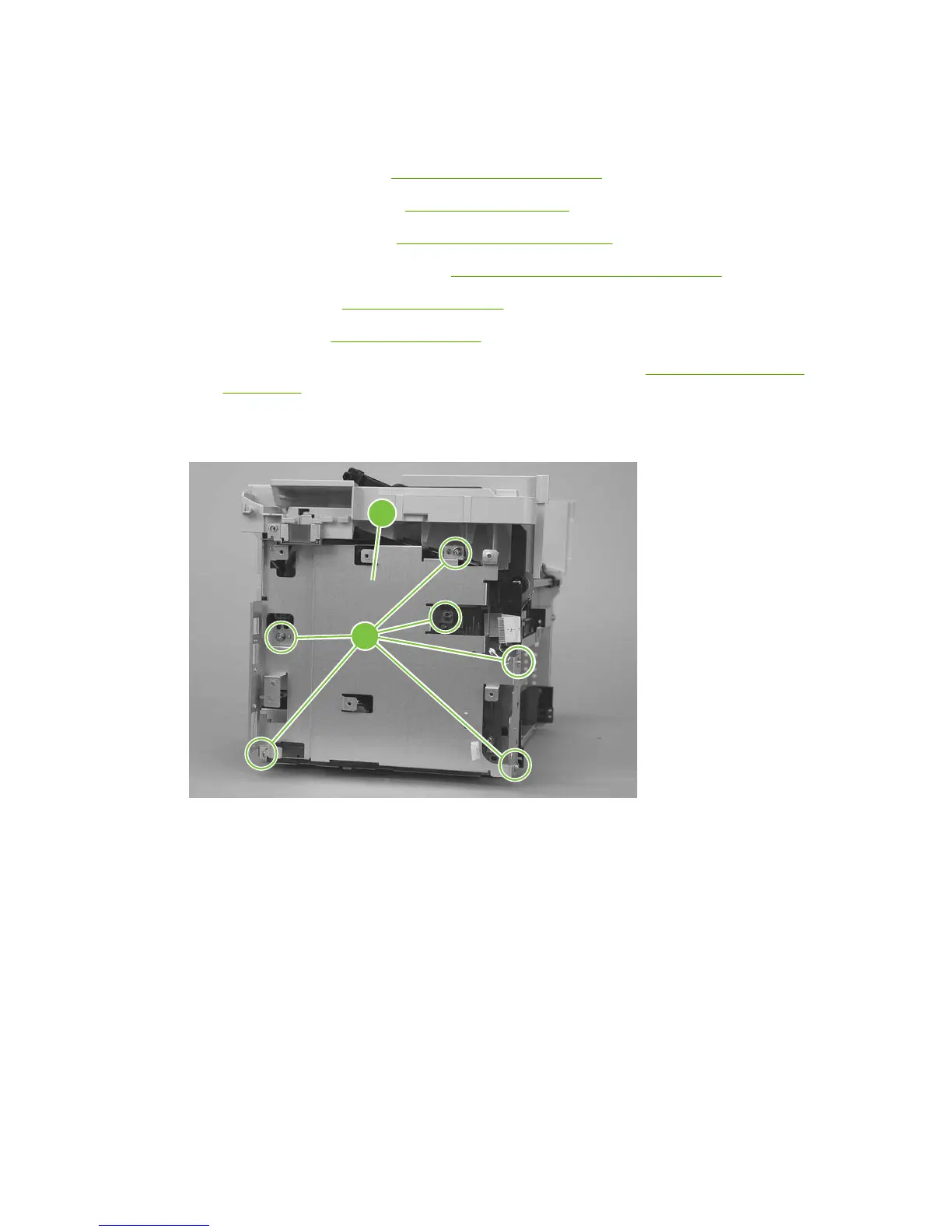

2. Remove six screws (callout 1) and the power supply sheet-metal plate (callout 2).
Figure 5-74 Remove the fuser (1 of 6)
2
1
2
96 Chapter 5 Removal and replacement ENWW
