HP LaserJet M1319 - Multifunction Printer - Page 104

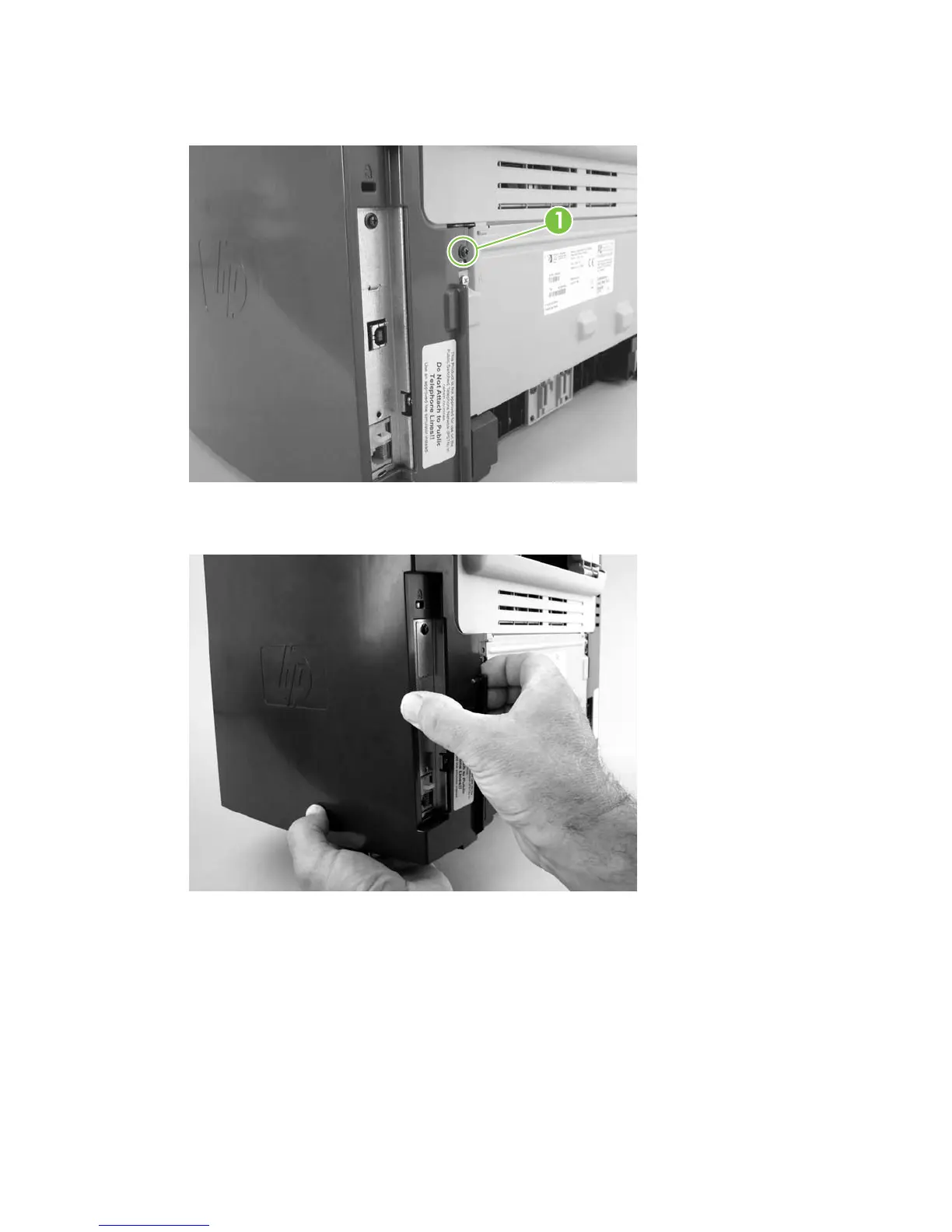

3. Remove the right-side cover-mounting screw (callout 1).
Figure 6-22 Removing the scanner assembly (3 of 14)
4. Release the back of the cover.
Figure 6-23 Removing the scanner assembly (4 of 14)
86 Chapter 6 Removal and replacement ENWW
