Scanner assembly top cover
1. Remove the following assemblies or components:
●
Scanner assembly. See
Scanner assembly on page 85.
●
Scanner side covers. See
Scanner side covers on page 76.
2. Remove four screws (callout 1).
CAUTION: The PCB is an ESD-sensitive component.

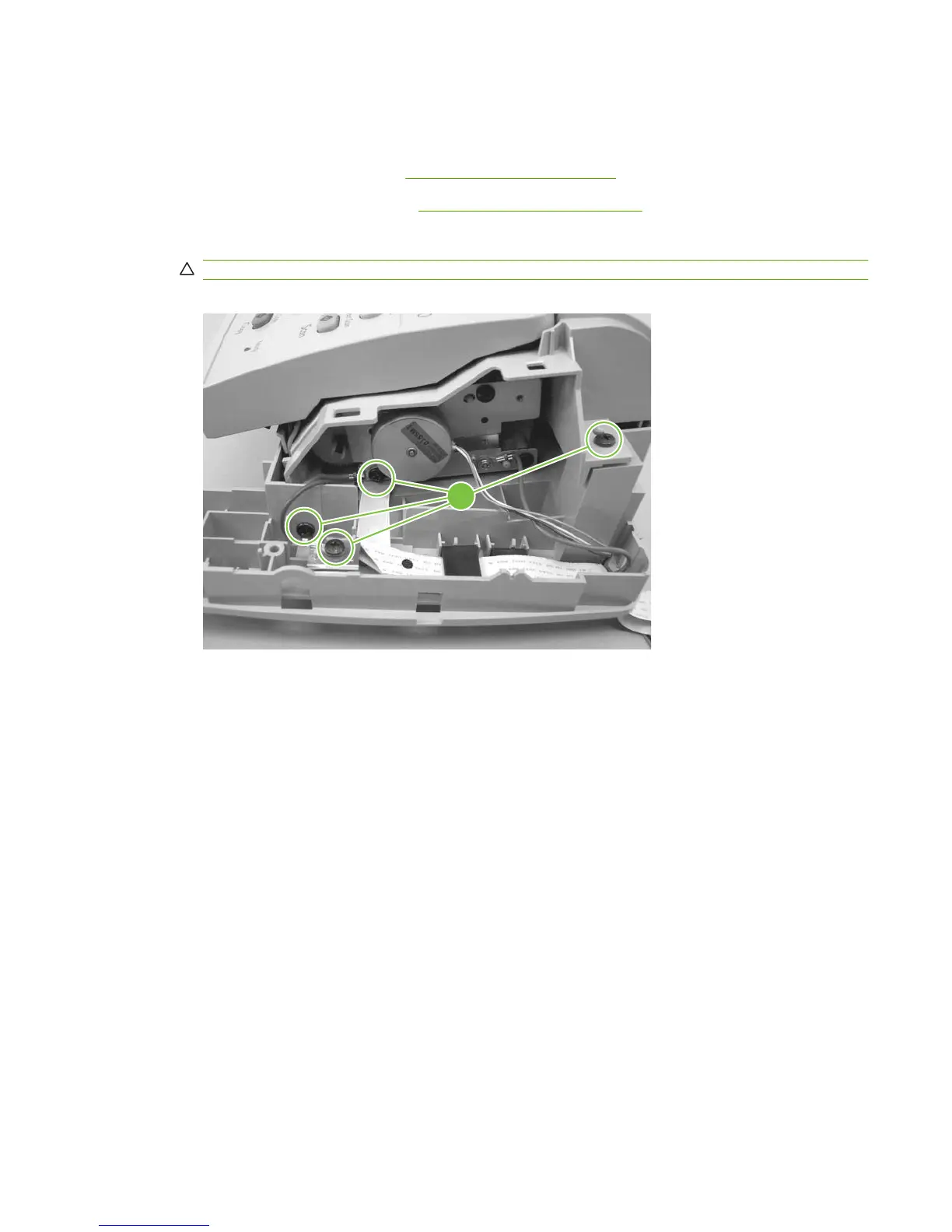

Figure 6-34 Removing the scanner assembly top cover (1 of 4)
1
