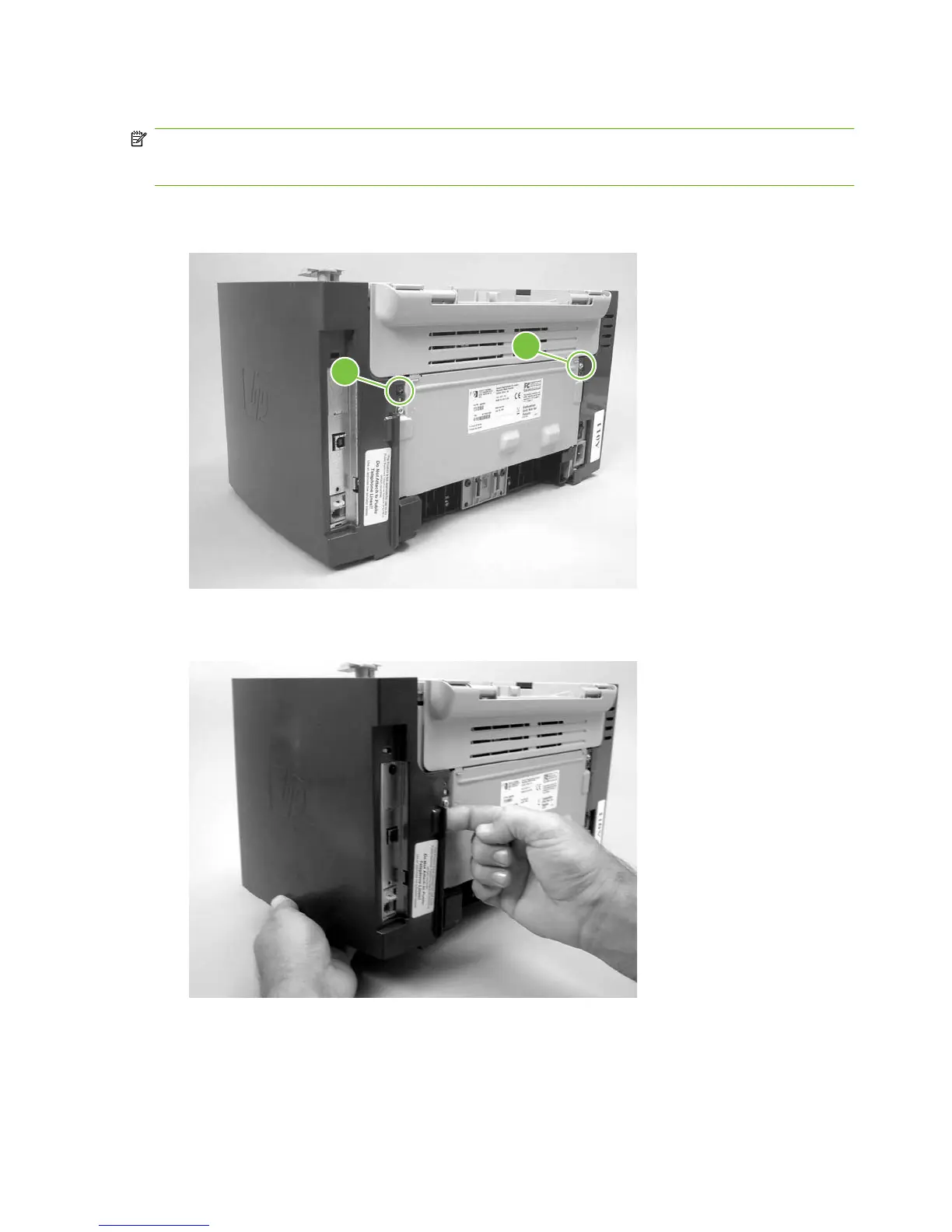

Side covers
NOTE: The procedure for removing the right-side and left-side covers is identical, with the exception
of the location of the screw that fastens the cover to the product. The right-side cover is shown in the
following procedure.
1. Remove one screw (callout 1). Callout 2 is on the left-side cover.
Figure 6-61 Removing the side covers (1 of 4)
2
1
2. Release the locking tab on the back of the cover.
Figure 6-62 Removing the side covers (2 of 4)
110 Chapter 6 Removal and replacement ENWW
