HP LaserJet M1319 - Multifunction Printer - Page 148

7. Carefully remove the ECU from the product. As you remove it, unweave the wire harnesses and
FFCs from the wire looms, and disconnect one wire-harness connector (callout 9) from the laser/
scanner. Remove the ECU.

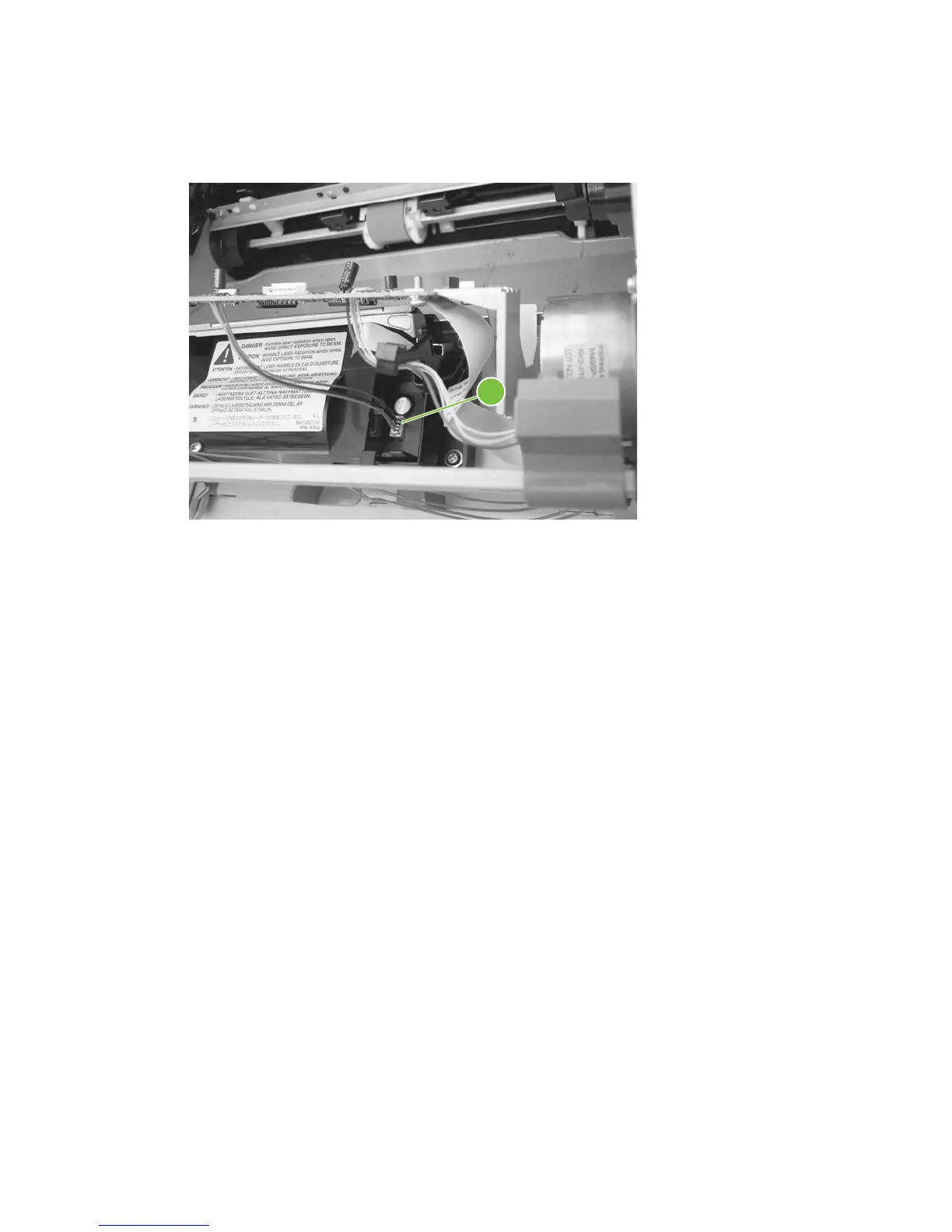

Figure 6-95 Removing the ECU (6 of 6)
9
130 Chapter 6 Removal and replacement ENWW
