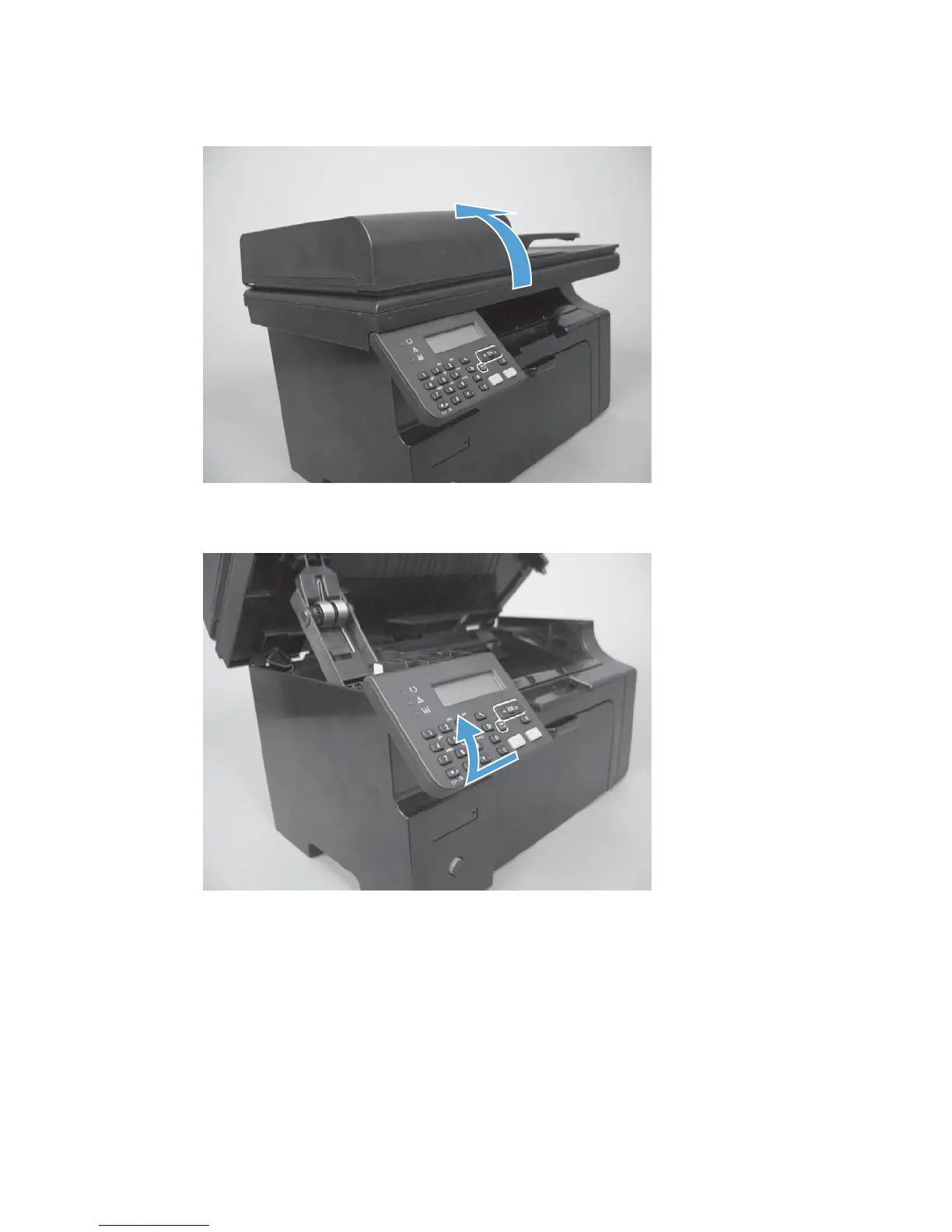

3. Raise the scanner assembly.
Figure 1-29 Remove the left cover (3 of 6)
4. Slide the control-panel assembly toward the left cover, and then lift up to slightly raise it.
Figure 1-30 Remove the left cover (4 of 6)
ENWW Covers 23
