HP LaserJet Pro M1130 - Multifunction Printer - Laser;Scanner Assembly Replacement

Laser/scanner assembly
Before proceeding, remove the following components:
●
Paper-delivery tray. See
Paper-delivery tray (output bin extension) on page 21.
●
Left cover. See
Left cover on page 22.
●
Right cover. See
Right cover on page 25.
●
Front cover. See
Front cover on page 28.
●
Scanner assembly. See
Scanner assembly on page 30.
●
Cartridge door. See
Cartridge door on page 33.
●
Top cover. See
Top cover on page 36.
Remove the laser/scanner assembly
1. Release one tab (callout 1), and then remove the holder (callout 2).

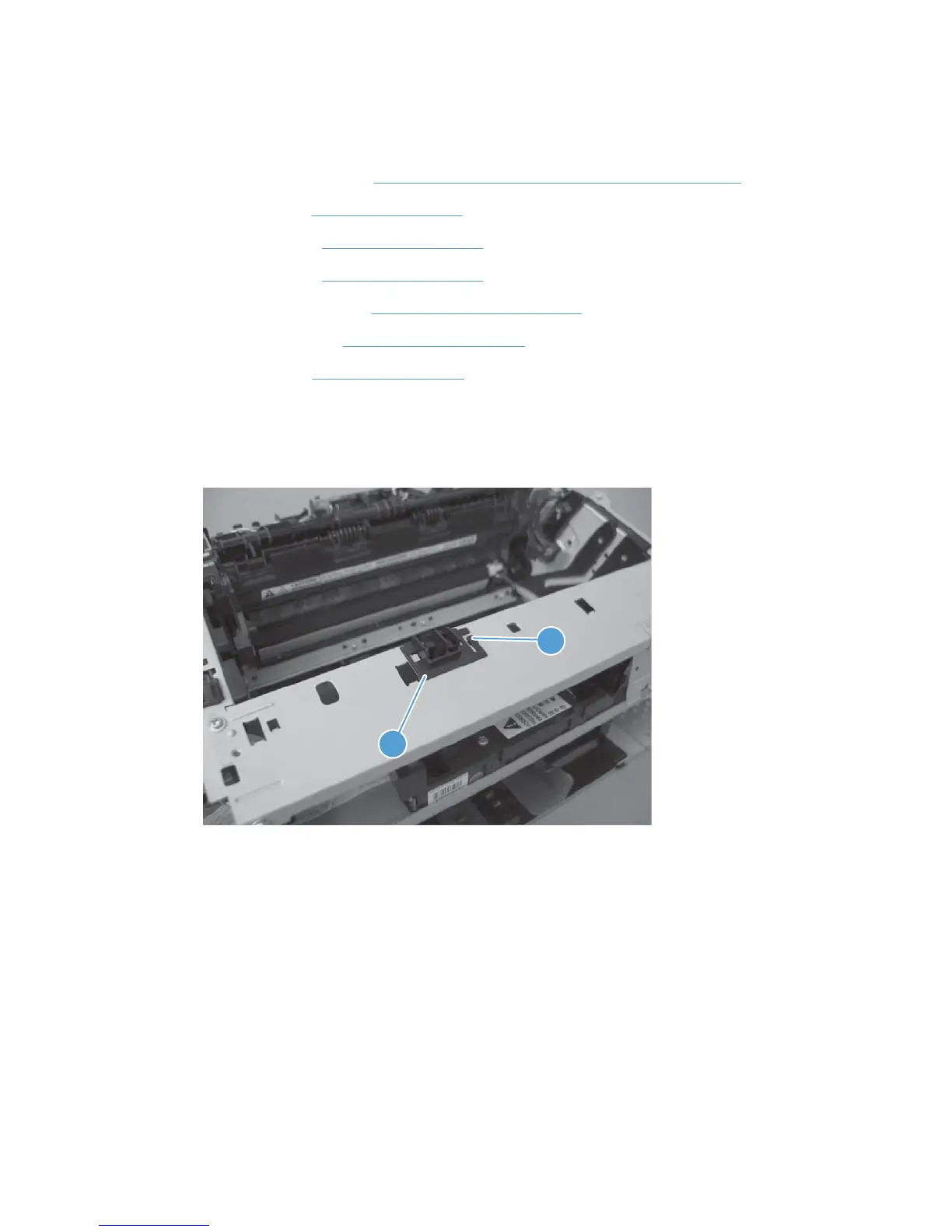

Figure 1-102 Remove the laser/scanner assembly (1 of 3)
2
1
