Reinstall the laser/scanner assembly
▲
When the holder is reinstalled (callout 1), make sure that the lever arm (callout 2) is correctly
positioned.

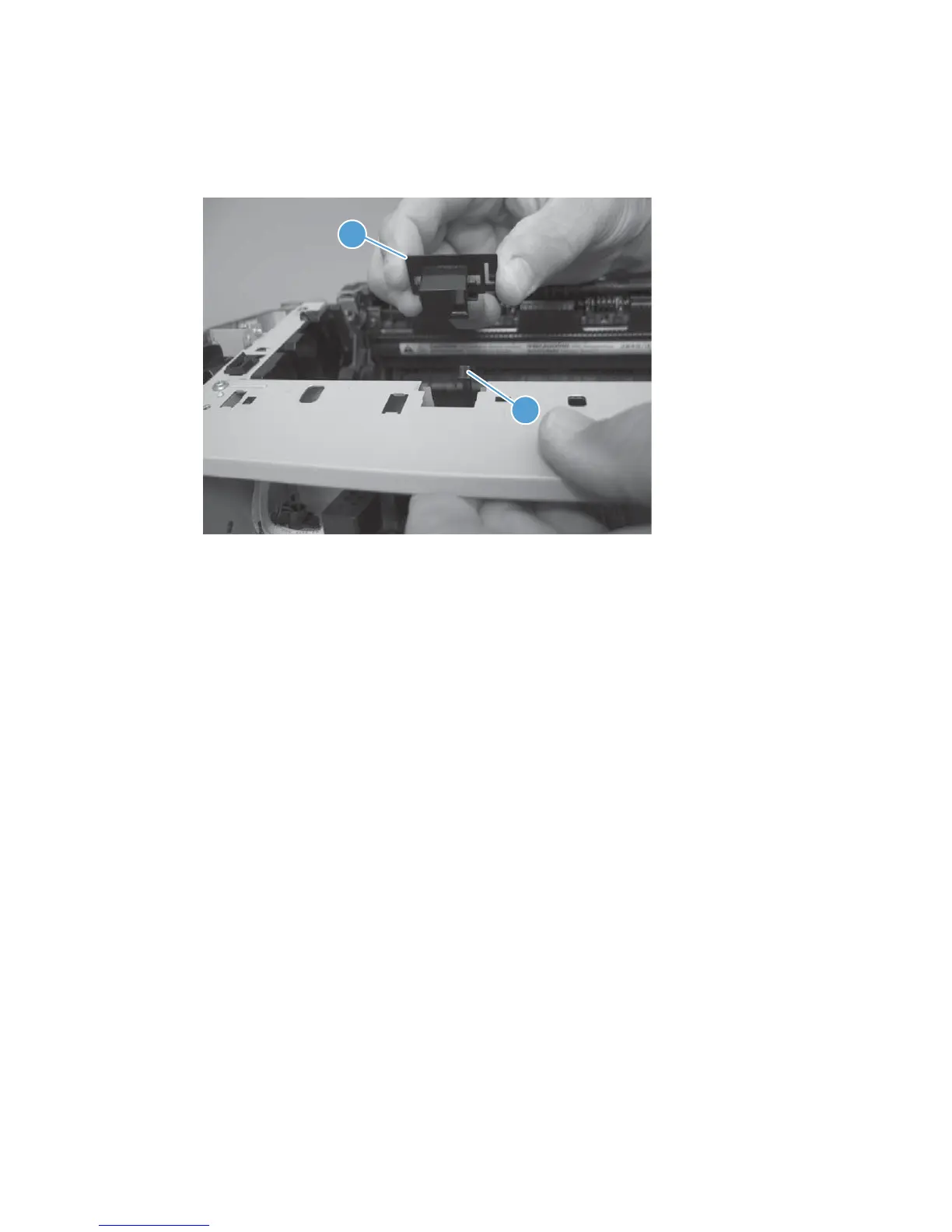

Figure 1-105 Reinstall the laser/scanner assembly
