HP LP2065

- 10 -
Analog signal 1 Analog signal 1
Power
Filter
5V
18V-LPL
Inverter(6Lamps)
12V
Regulator Regulator
2.5V 1.8V
Regulator
3.3V
5V
USB 25H04
Switch
PI3-
HDMI412
Digital 2 Digital 1
Switch
MC14066B
Switch
MC14066B
EEPROM
Analog-1
EEPROM
Digital-1
EEPROM
Analog-2
EEPROM
Digital-2
DVI-1
DVI-2
Analog-2
Switch
MC14066B
Digital Signal (TMDS)
MST9251
ADC
PLL
DVI
Rx
Scaling
OSD
Real
Color
2.5V
EEPROM
Micom
DDR RAM
1.8V 2.5V
3.3V
LVDS
Vcc 18V-LPL 5V-AUO
Panel
Up
stream
Down
stream
Down
stream
LED
Power
Auto
Up
Down
USB
Key
Down
stream
Down
stream
Menu
Analog-1

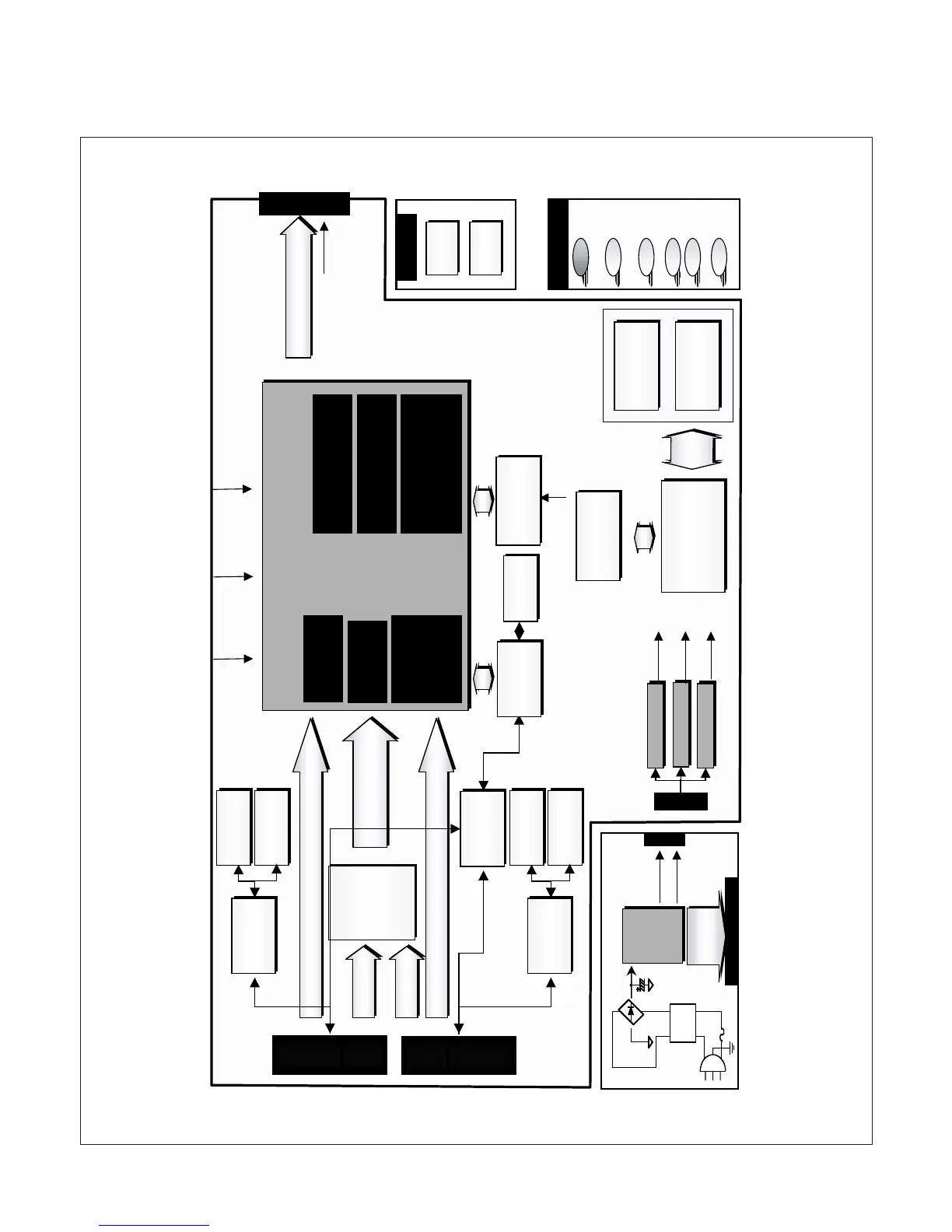

BLOCK DIAGRAM
