- 9 -

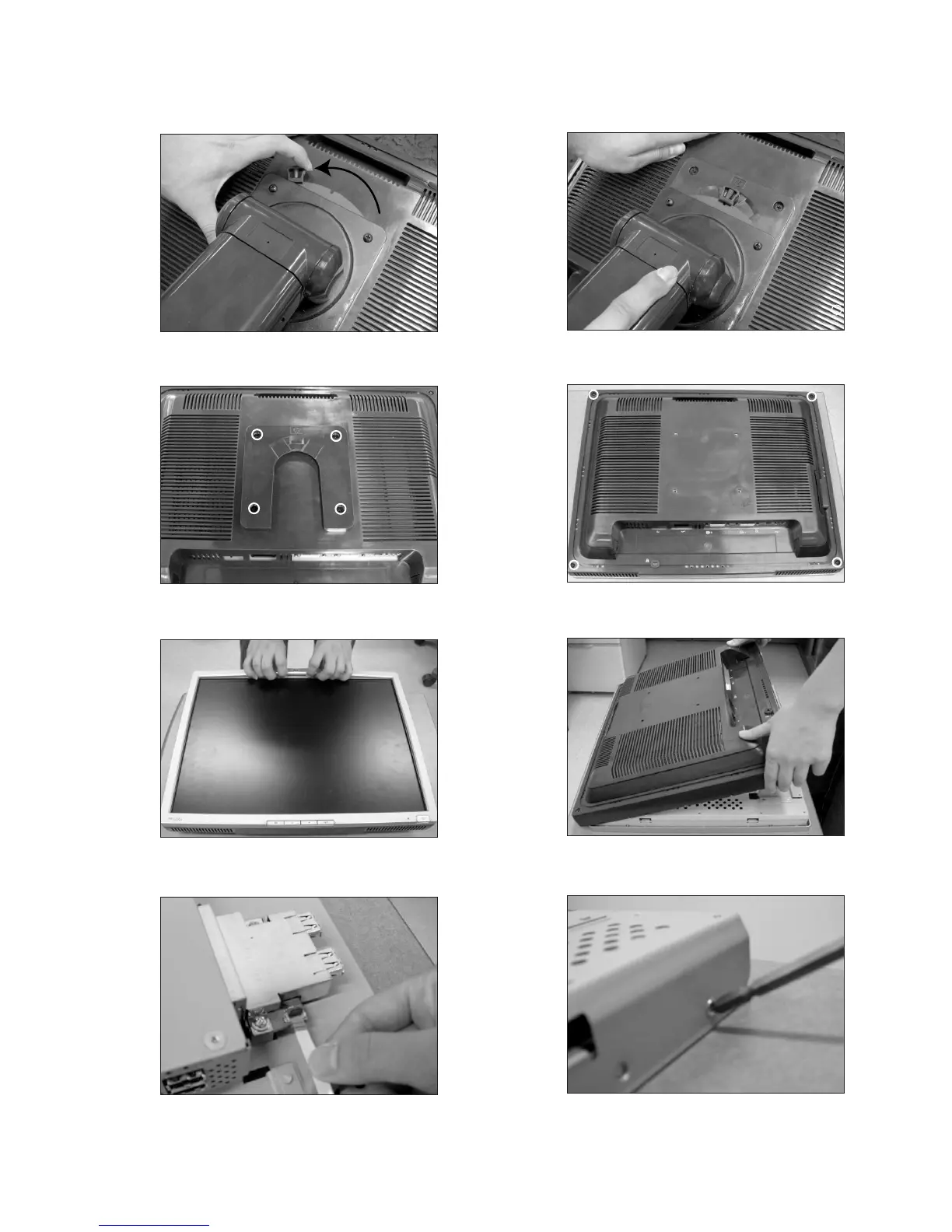

DISASSEMBLY
Like the picture move.
Disassemble back cover.
# 1
Remove the stand.
# 2
# 5
# 6
Remove the 4 screws from each side of metal
frame.
Pull out the usb pcb.
# 7
# 8
1. Pull the front cover upward.
2. Then, let the all latches are separated.
3. Put the front face down.
Remove the screws.
# 3
Remove the screws.
# 4

Other manuals for HP LP2065

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HP LP2065 and is the answer not in the manual?

HP LP2065 Specifications

General IconGeneral
3DYes
Pixel pitch0.255 x 0.255 mm
Response time8 ms
Display diagonal20.1 \
Display resolution1600 x 1200 pixels
Vertical scan range48 - 85 Hz
Horizontal scan range30 - 94 kHz
Contrast ratio (dynamic)-
Contrast ratio (typical)800:1
Display brightness (typical)300 cd/m²
USB hub version2.0
DVI-I ports quantity2
VGA (D-Sub) ports quantity0
USB Type-A downstream ports quantity5
LED indicatorsPower
Tilt angle range-5 - 25 °
Cable lock slot typeKensington
Panel mounting interface100 x 100 mm
Power consumption (standby)2 W
Power consumption (typical)75 W
Storage temperature (T-T)10 - 60 °C
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)5 - 85 %
Operating relative humidity (H-H)20 - 80 %
CertificationTCO'03, TUV-Ergo, UL, VCCI, CE, ISO 13406-2
Country of originChina
Market positioningBusiness
Weight and Dimensions IconWeight and Dimensions
Depth (with stand)220 mm
Height (with stand)425 mm
Weight (with stand)9200 g
Depth (without stand)87 mm
Width (without stand)443 mm
Height (without stand)345 mm
Weight (without stand)5750 g
