HP LP2065 Service Manual

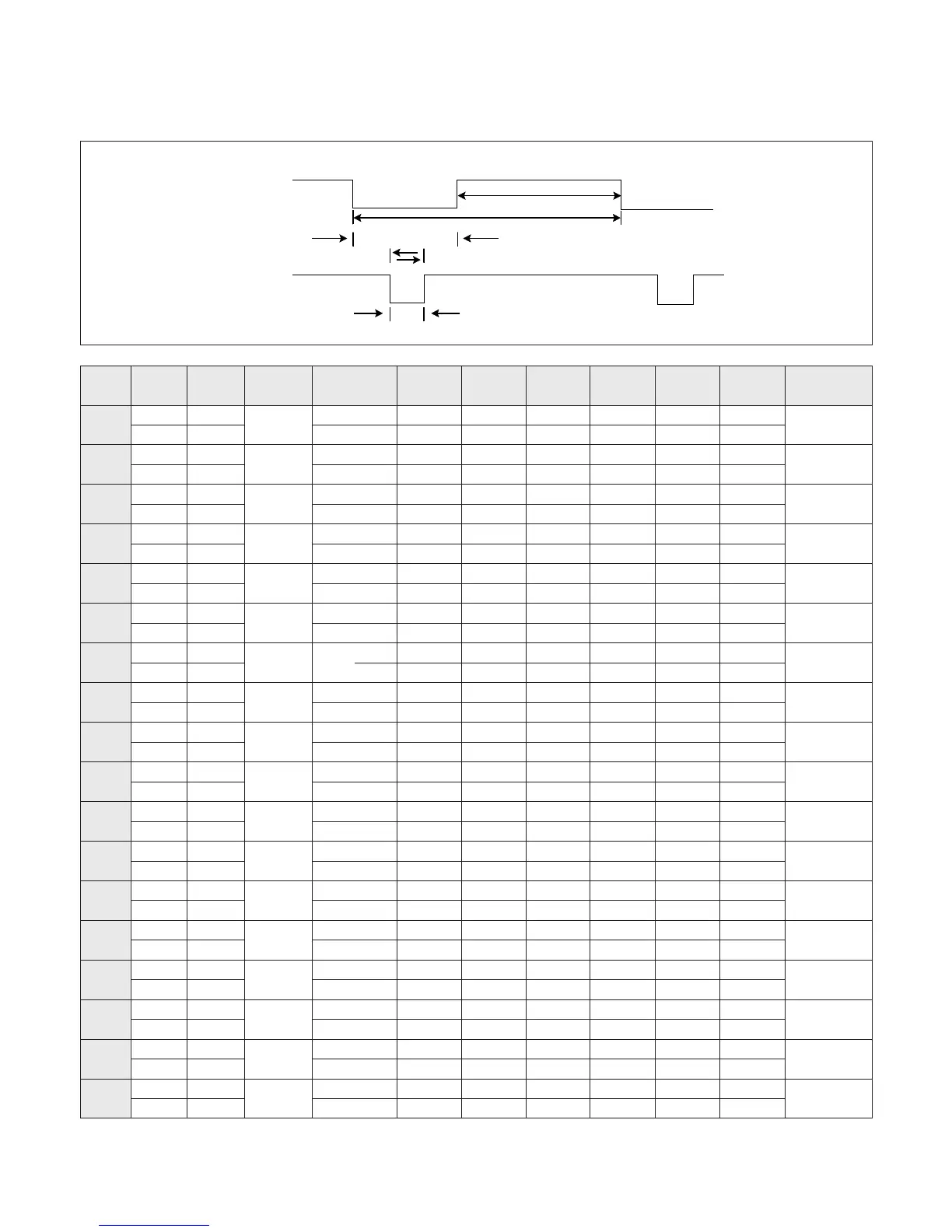

TIMING CHART
- 8 -
VIDEO
SYNC
B
C
E
A
D
1 H - 28.35 31.500 KHz 900 720 180 108 54 18 720 x 400
V + 70.156 Hz 449 400 49 3 34 12
2 H - 25.175 31.469KHz 800 640 160 96 48 16 640 x 480
V - 59.940 Hz 525 480 45 2 33 10
3 H - 31.5 37.50KHz 840 640 200 64 120 16 640 x 480
V - 75.0 Hz 500 480 20 3 16 1
4 H - 36 43.269KHz 832 640 192 56 80 56 640 x 480
V - 85.008 Hz 509 480 29 3 25 1
5 H + 40 37.879 KHz 1056 800 256 128 88 40 800 x 600
V + 60.317 Hz 628 600 28 4 23 1
6 H + 56.25 53.670KHz 1048 800 248 64 152 32 800x600
V + 85.06 Hz 631 600 31 3 27 1
7 H - 57.285 49.727 KHz 1152 832 320 64 224 32 832 x 624
V - 74.553 Hz 667 624 43 3 37 3 (MAC16")
8 H - 65 48.363 KHz 1344 1024 320 136 160 24 1024 x 768
V - 60.004 Hz 806 768 38 6 29 3
9 H + 78.75 60.023 KHz 1312 1024 288 96 176 16 1024 x 768
V + 75.029 Hz 800 768 32 3 28 1
10 H + 94.5 68.677 KHz 1376 1024 352 96 208 48 1024 x 768
V + 85 Hz 808 768 40 3 36 1
11 H - 100 68.681 KHz 1456 1152 304 128 144 32 1152 x 870
V - 75.062 Hz 915 870 45 3 39 3 (MAC 21)
12 H - 92.94 61.795KHz 1504 1152 352 128 194 30 1152x900
V - 65.950Hz 937 900 37 4 31 2
13 H + 108 60.000 KHz 1800 1280 520 112 312 96 1280 x 960
V + 60.000 Hz 1000 960 40 3 36 1
14 H + 108 63.981 KHz 1688 1280 408 112 248 48 1280 x1024
V + 60.020 Hz 1066 1024 42 3 38 1
15 H + 135 79.976 KHz 1688 1280 408 144 248 16 1280 x 1024
V + 75.025 Hz 1066 1024 42 3 38 1
16 H + 157.5 91.146 KHz 1728 1280 448 160 224 64 1280 X 1024
V + 85.02 Hz 1072 1024 48 3 44 1
17 H + 162 75 KHz 2160 1600 560 192 304 64 1600x1200
V + 60 Hz 1250 1200 50 3 46 1
18 H + 202.5 93.75 KHz 2160 1600 560 192 304 64 1600x1200
V + 75 Hz 1250 1200 50 3 46 1
MODE
H / V
Sync
Polarity
Dot
Clock
Frequency
Total
Period
( E )
Total
Period
( E )
Video
Active
Time ( A )
Front
Porch
( C )
Sync
Duration
( D )
Back
Porch
( F )
Resolution

HP LP2065 Specifications

General

3D	Yes
Pixel pitch	0.255 x 0.255 mm
Response time	8 ms
Display diagonal	20.1 \
Display resolution	1600 x 1200 pixels
Vertical scan range	48 - 85 Hz
Horizontal scan range	30 - 94 kHz
Contrast ratio (dynamic)	-
Contrast ratio (typical)	800:1
Display brightness (typical)	300 cd/m²
USB hub version	2.0
DVI-I ports quantity	2
VGA (D-Sub) ports quantity	0
USB Type-A downstream ports quantity	5
LED indicators	Power
Tilt angle range	-5 - 25 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Power consumption (standby)	2 W
Power consumption (typical)	75 W
Storage temperature (T-T)	10 - 60 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 80 %
Certification	TCO'03, TUV-Ergo, UL, VCCI, CE, ISO 13406-2
Country of origin	China
Market positioning	Business

Weight and Dimensions

Depth (with stand)	220 mm
Height (with stand)	425 mm
Weight (with stand)	9200 g
Depth (without stand)	87 mm
Width (without stand)	443 mm
Height (without stand)	345 mm
Weight (without stand)	5750 g
