NOTE: Be sure the pedestal base is securely locked before continuing with the setup.
Rear Components

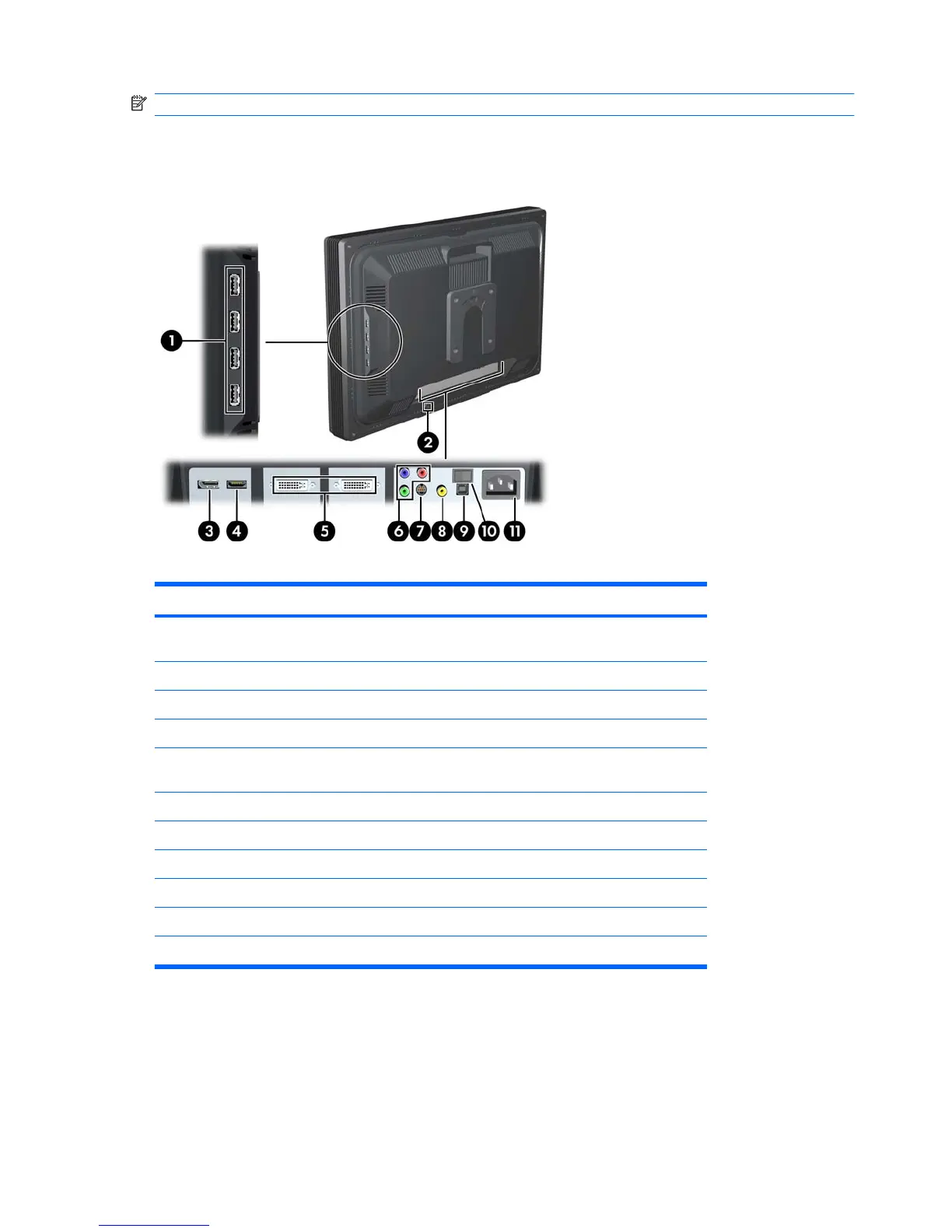

Figure 3-2 Rear Components
Table 3-1 HP LP2480zx Rear Components
Component Function
1 USB Downstream Connectors
(side panel)
Connects optional USB devices to the monitor.
2 Cable Lock Provision Provides slot for use with cable security locks.
3 DisplayPort Connector Connects the DisplayPort signal cable to the monitor.
4 HDMI Connector Connects the HDMI signal cable to the monitor.
5 DVI-I Connectors Connects the DVI-I to VGA signal cable or DVI-I to DVI-D
signal cable to the monitor.
6 Component Connectors Connects Component signal cables to the monitor.
7 S-Video Connector Connects an S-Video signal cable to the monitor.
8 Composite Connector Connects a Composite signal cable to the monitor.
9 USB Upstream Connector Connects the monitor USB hub to a host USB port/hub.
10 Master Power Switch Turns off all power to the monitor.
11 AC Power Connector Connects the AC power cord to the monitor.
8 Chapter 3 Setting Up the Monitor
