4. Insert the monitor panel into the Quick Release, and then press down firmly on the monitor to lock
it in place. When the Quick Release locks, it will make a clicking sound.

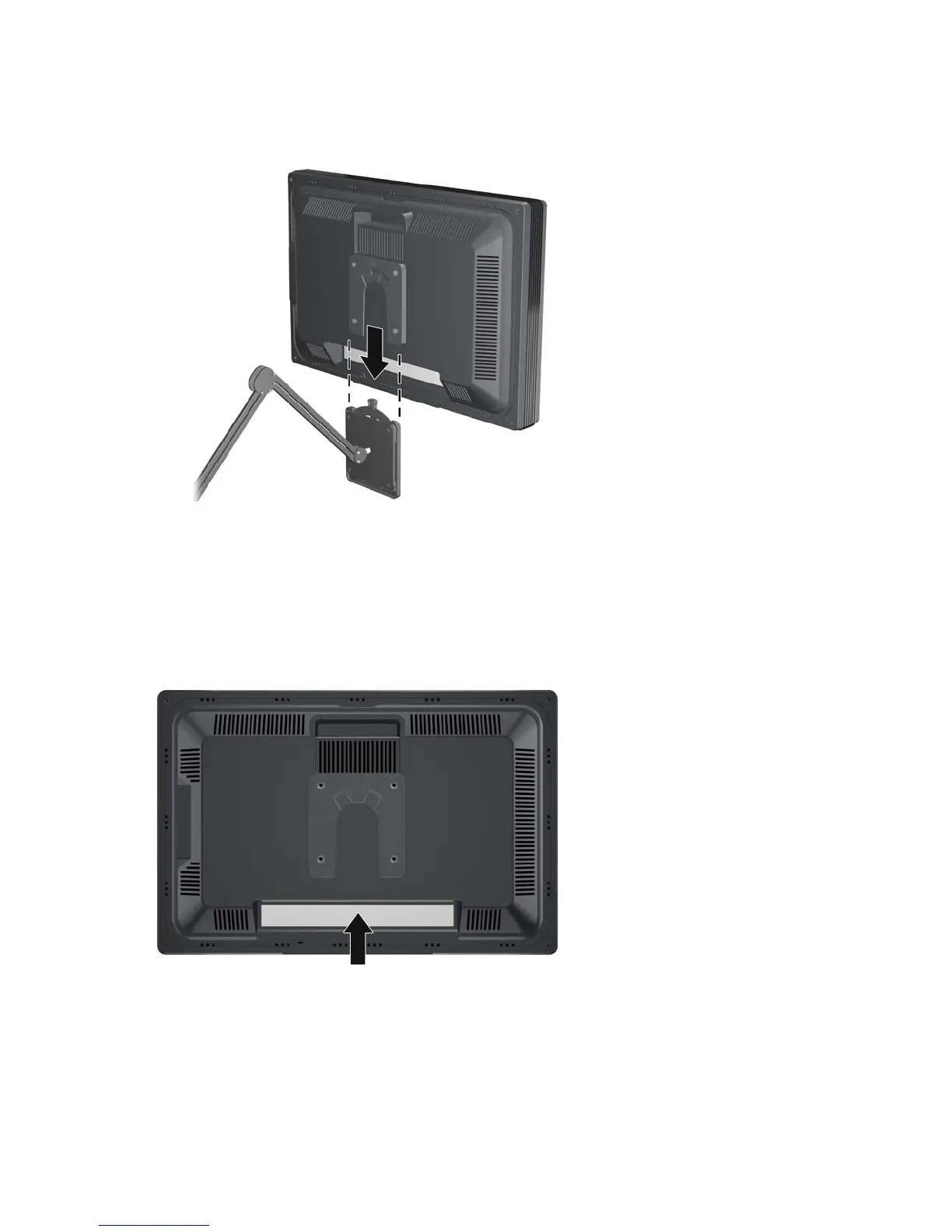

Figure 3-14 Inserting the Monitor Panel into the Quick Release
Locating the Rating Labels
The rating labels on the monitor provide the spare part number, product number, and serial number.
You may need these numbers when contacting HP about the monitor model. The rating labels are
located on the rear of the monitor display panel.
Figure 3-15 Locating the Rating Labels
18 Chapter 3 Setting Up the Monitor
