Connecting USB Devices
The monitor provides four USB connectors on the side panel that can be used to connect devices such
as a digital camera, USB keyboard, or USB mouse.
1. Connect one end of the USB hub cable to the USB connector on the rear panel of the computer,
and the other end to the upstream USB connector on the monitor.
2. Connect the USB devices to the USB downstream connectors on the side panel of the monitor.

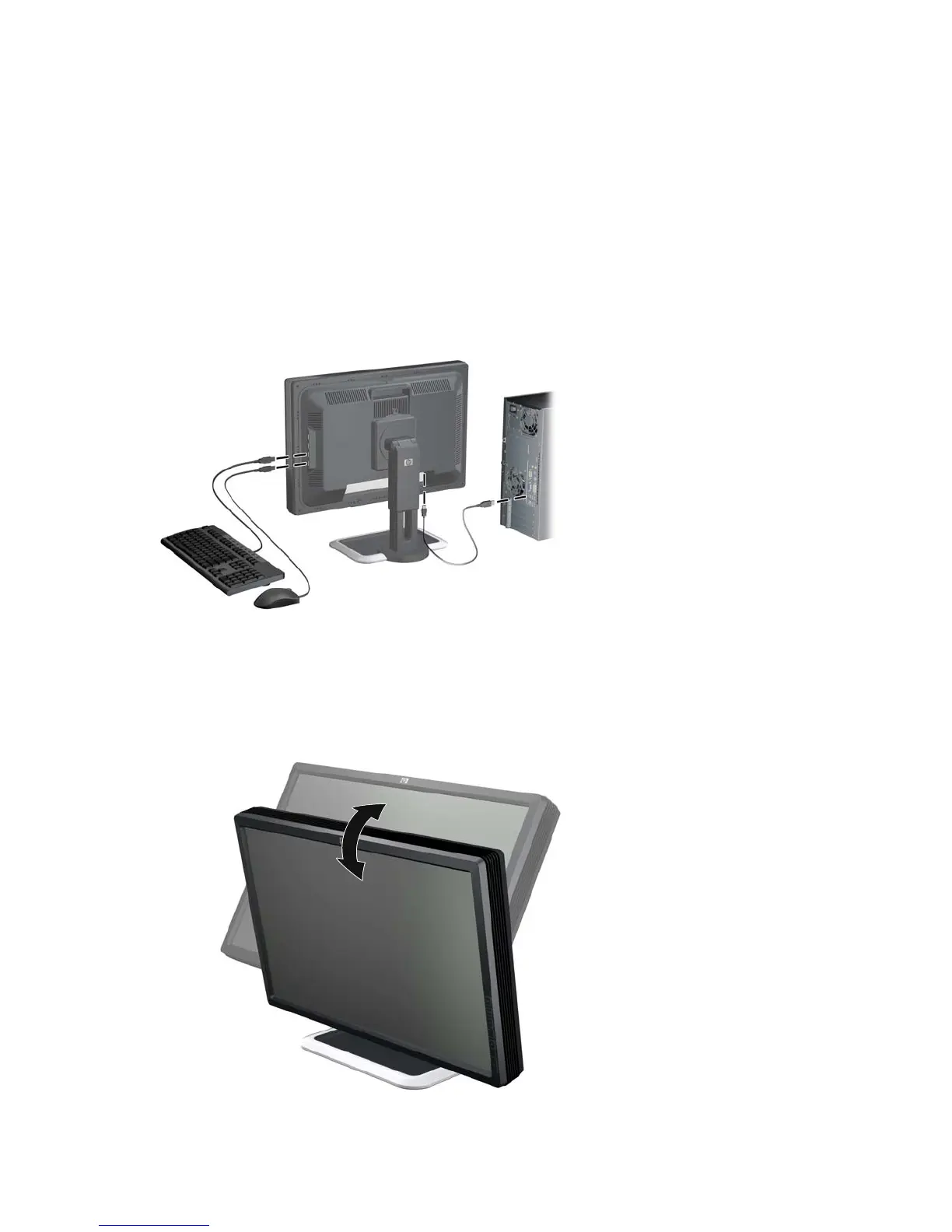

Figure 3-5 Connecting USB Devices
Adjusting the Monitor
1. Tilt the monitor's panel forward or backward to set it to a comfortable eye level.
Figure 3-6 Tilting the Monitor
12 Chapter 3 Setting Up the Monitor
