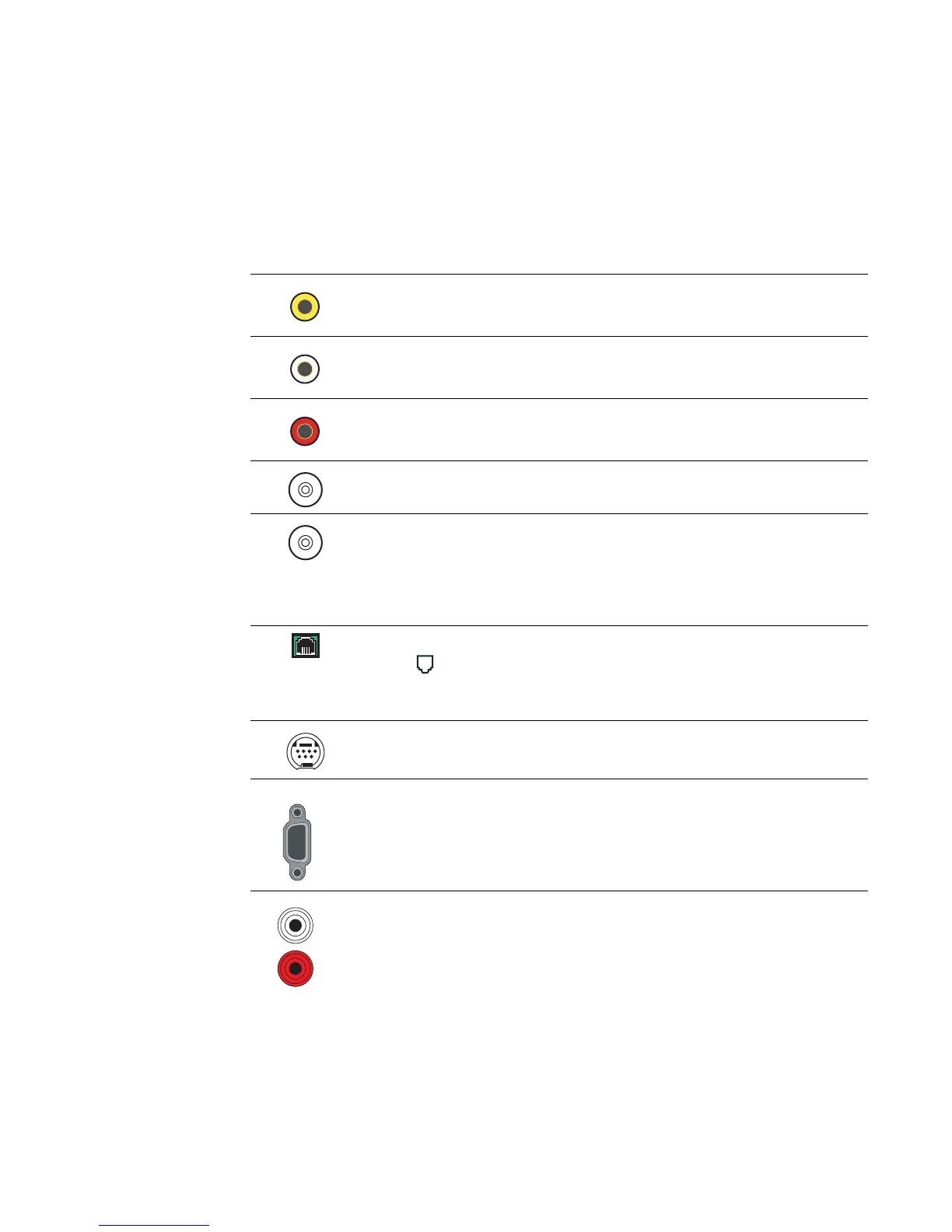

8 HP Media Center PC Getting Started Guide
Composite Video
Composite Video In from set-top box connector
L audio
Left audio input from set-top box connector
R audio
Right audio input from set-top box connector
TV/Cable Ant
TV In (TV antenna or cable input from wall outlet with
no set-top box)
FM Ant
FM In (radio antenna input)
Plug the FM radio antenna cable into the FM In port on the
back of the PC. The FM connector is found on the TV tuner
card. You may want to extend the ends of the cable to
improve your FM radio signal reception.
Modem (Line In RJ-11)
Plug the modem cable (provided in the PC box) into the
computer modem connector on the back of the PC. Plug the
other end to your telephone line wall jack connector.
Analog Video Analog Video Out, S-video, composite video, or component
video (select models only)
VGA VGA display output
Digital audio
In and Out
Digital audio input
Digital audio output
Connector Icon/label Description and function
LINE
digital audio
in out
